Siemens QF260A GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Siemens
QF260A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF260A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

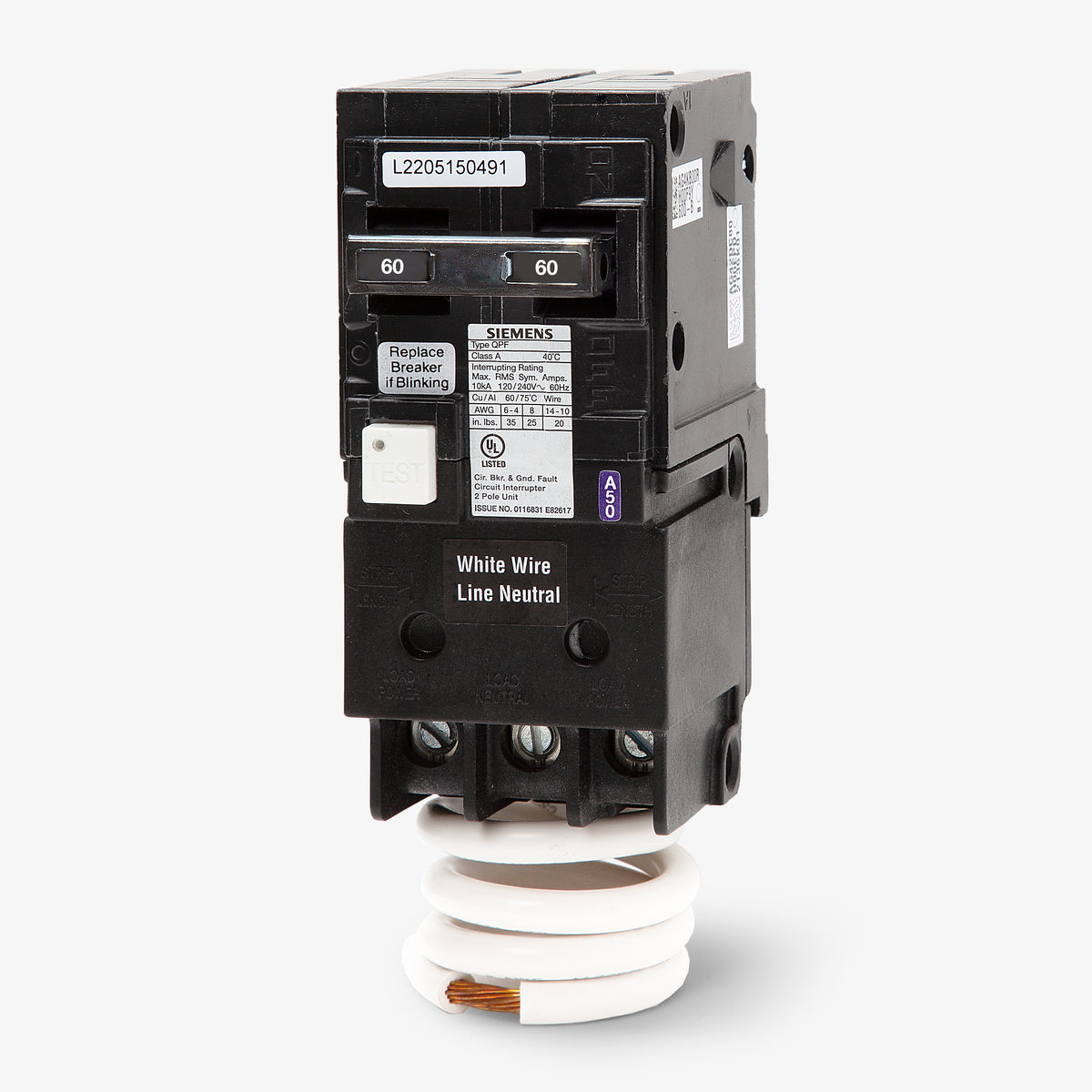

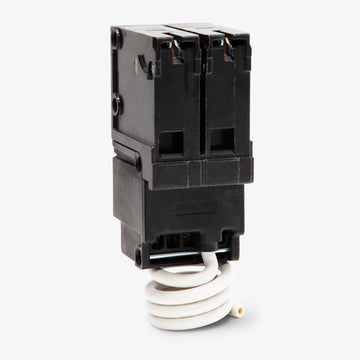

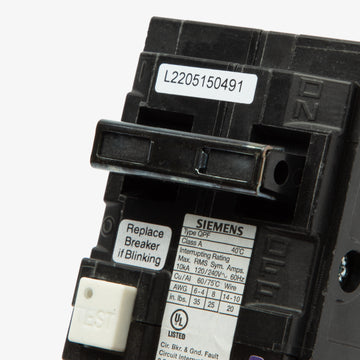

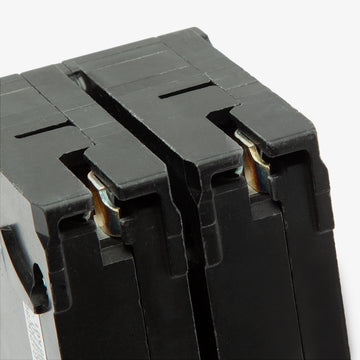

Siemens QF260A - 60A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
50A GFCI Miniature Circuit Breaker
45A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Built to meet updated UL 943 standards, this 60-amp interrupter conducts periodic internal tests to confirm the ground fault circuitry remains fully operational. The device provides standard 10kAIC interrupting capacity alongside thermal-magnetic overcurrent defense. It snaps securely into Siemens EQ, ES, PL, and Ultimate load centers using a traditional pigtail neutral connection. This model serves as the direct self-testing upgrade for the legacy QF260 part number.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF260A |
| Series | QF |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (EQ, ES, PL, Ultimate) |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
6 answersIs the QF260A intended for personnel protection or equipment protection?
It provides Class A personnel protection with a 5mA trip threshold. It is not an Equipment Protection Device (EPD), which would typically feature a 30mA threshold.
Does a straight 240V load without a neutral require the breaker pigtail to be connected?
Yes. Even if the 240V load does not utilize a load neutral, the white pigtail on the breaker must be landed on the panel neutral bus to power the internal ground fault testing and sensing circuitry.
Does this breaker require a plug-on neutral load center?
No. It uses a traditional pigtail neutral connection, making it compatible with standard Siemens EQ, ES, PL, and Ultimate panels that lack a dedicated plug-on neutral bus.
What is the difference between the legacy QF260 and the current QF260A?
The QF260A is the direct replacement for the discontinued QF260. The A suffix indicates the integration of an automated self-test feature to comply with updated UL 943 requirements.
Can I use the QF260A to replace a Murray MP260GF?
Yes. Siemens phased out the Murray brand and officially lists the QF260A as the direct, UL-listed cross-reference replacement for Murray MP260GF and MP260GFA ground fault breakers.
How does the self-test feature on the QF260A function?
The breaker automatically runs periodic internal diagnostic tests to verify the ground fault circuitry is functional. If it detects a failure in the GFCI protection, it will trip and lock out to prevent unprotected use.
