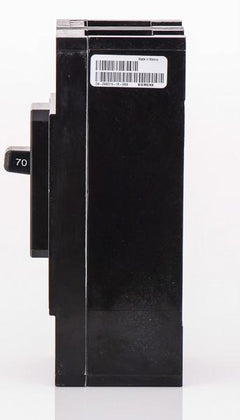

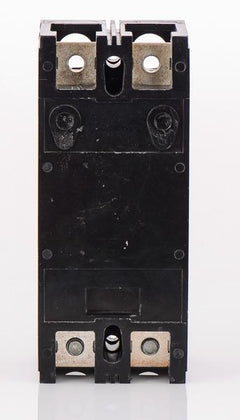

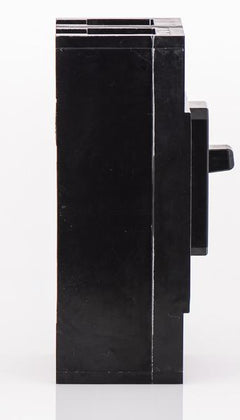

Siemens QJ22B070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
QJ22B070
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B070 |
| Series | QJ |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens QJ22B070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B070-R |
| Series | QJ |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Designed to handle 70-amp commercial loads, this two-pole thermal-magnetic breaker delivers standard 10kAIC fault protection. It integrates smoothly into Siemens P1, P2, and P3 panelboards, as well as compatible meter centers and switchboards. The QJ frame construction ensures reliable long-time and instantaneous trip functions for facility power distribution. Additional characteristics include reverse feed compatibility, a non-interchangeable trip unit, and an HACR rating for motor loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B070 |
| Series | QJ |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhich Siemens panelboards are compatible with the QJ22B070 circuit breaker?
This breaker is designed to install seamlessly into Siemens P1, P2, and P3 panelboards. It is also compatible with Siemens meter centers and individual enclosures.
What wire sizes are accepted by the standard lugs on the QJ22B070?
The included load-side lugs accept 6 AWG to 300 kcmil copper (Cu) wire, or 4 AWG to 300 kcmil aluminum (Al) wire.
How is the QJ22B070 mounted into a panelboard?
This is a bolt-on circuit breaker. It secures directly to the panelboard bus using bolted connections, ensuring a secure and reliable electrical contact.
What type of trip unit does the QJ22B070 utilize?
It features a fixed thermal-magnetic trip unit. This provides long-time (thermal) protection against overloads and instantaneous (magnetic) protection against short circuits.
Are the trip settings on the QJ22B070 adjustable?
No, this breaker features a non-interchangeable trip unit with fixed thermal and fixed magnetic settings. It does not support field adjustments for the trip curve.
Can the Siemens QJ22B070 be reverse fed?
Yes, this QJ frame breaker supports reverse feed applications, allowing it to be used as a main breaker or back-fed branch breaker where permitted by local electrical codes.
Is the QJ22B070 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment motor loads.
What safety certifications does the QJ22B070 hold?
The QJ22B070 is UL 489 listed and CSA certified, ensuring it meets strict safety and performance standards for molded case circuit breakers.
