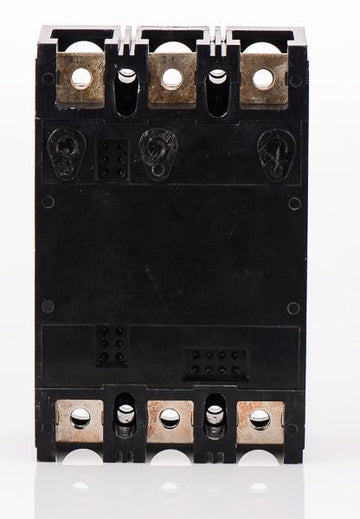

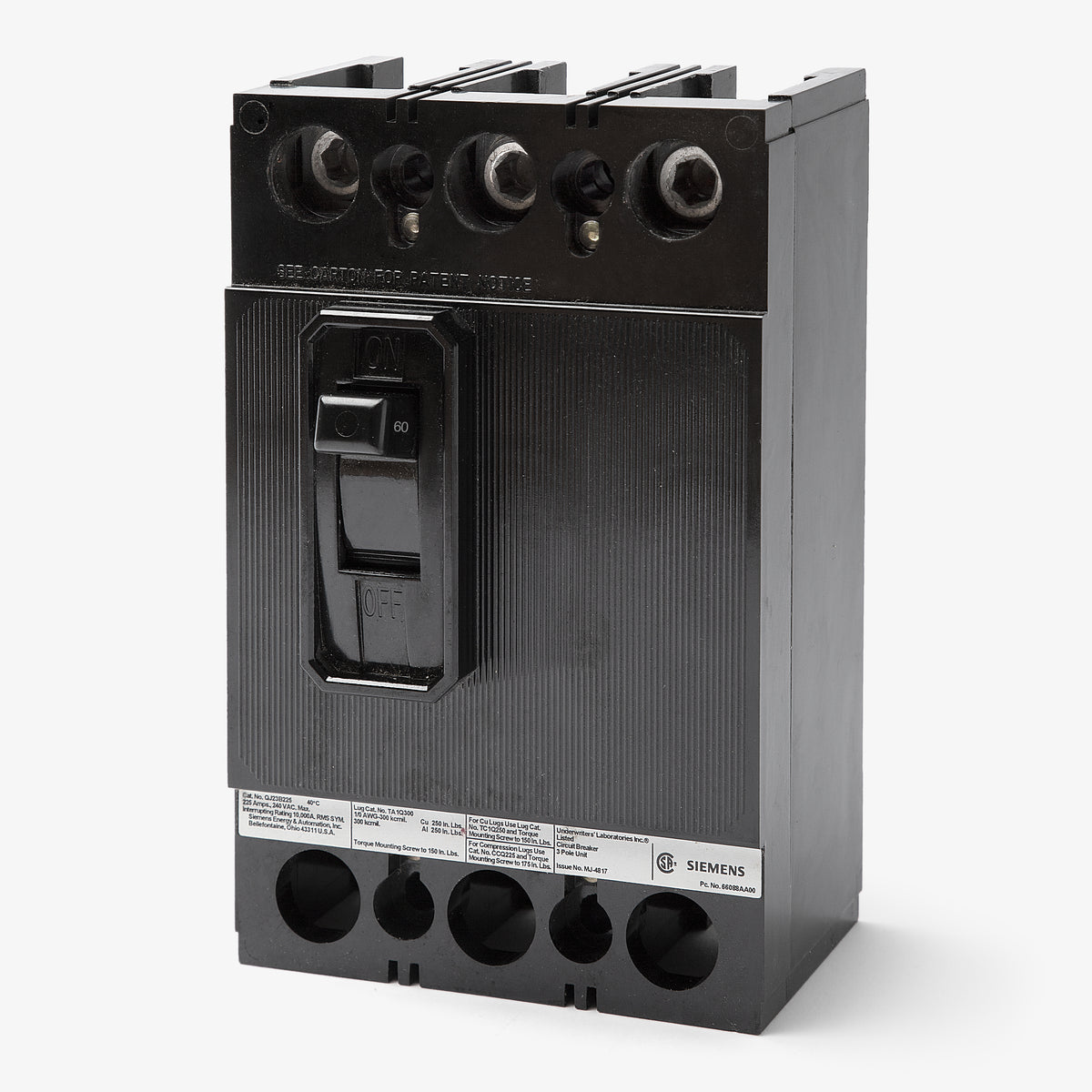

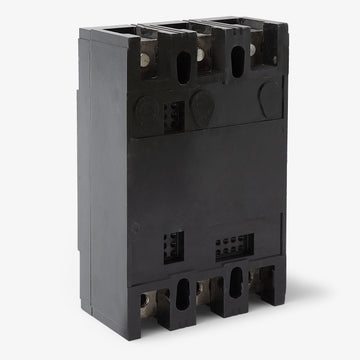

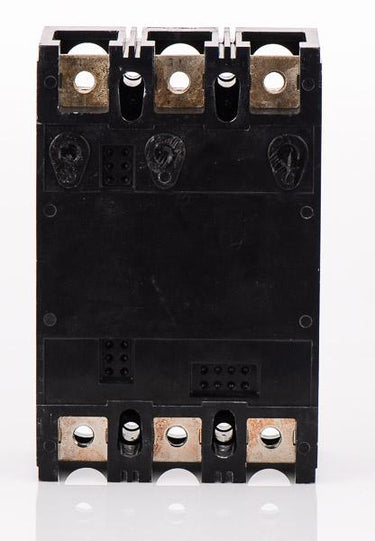

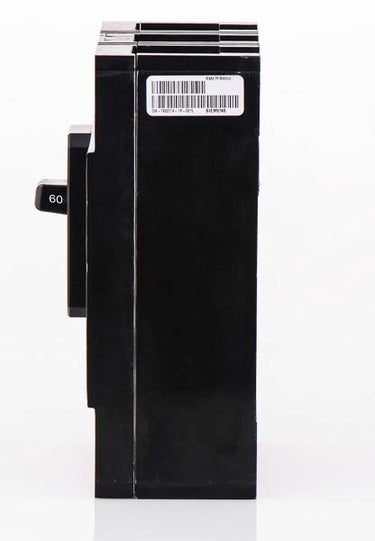

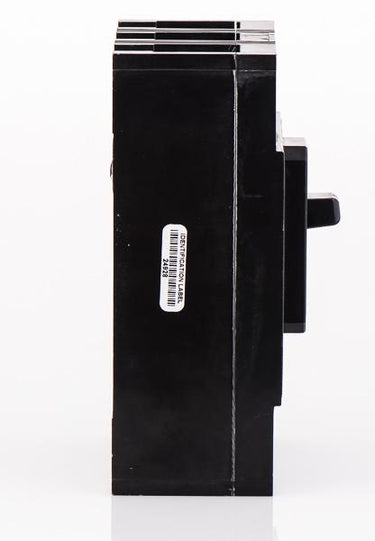

Siemens QJ23B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Siemens
QJ23B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens QJ23B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060 |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG-300 kcmil (Cu), 4 AWG-300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens QJ23B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060-R |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG-300 kcmil (Cu), 4 AWG-300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Designed to handle three-phase electrical loads, this 60-amp molded case circuit breaker ensures consistent long-time and instantaneous fault defense. The unit mount configuration allows for versatile installation across various commercial and industrial environments. This SENTRON series QJ frame device integrates perfectly into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. It features a quick-make, quick-break mechanism and carries a standard 10kAIC rating at 240VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060 |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG-300 kcmil (Cu), 4 AWG-300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards accept the Siemens QJ23B060 circuit breaker?
This bolt-on breaker is designed to install directly into Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards and meter centers.

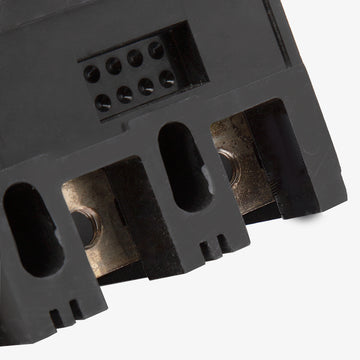

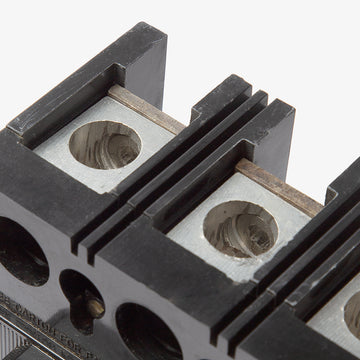

What wire sizes and materials are supported by the QJ23B060 lugs?
The standard lugs accommodate 6 AWG to 300 kcmil copper (Cu) conductors and 4 AWG to 300 kcmil aluminum (Al) conductors.
Has the Siemens QJ23B060 been discontinued?
Yes, the QJ frame is a legacy series that has been phased out by Siemens. It is directly replaced by the newer QR frame series, which shares the same mounting footprint for easy retrofitting in existing enclosures.
Is the QJ23B060 suitable for reverse feed applications?
Yes. Because this breaker is built with a non-interchangeable thermal-magnetic trip unit, it meets UL 489 requirements for reverse feeding.
What type of trip unit is installed in the QJ23B060?
It features a fixed thermal-magnetic trip unit with non-interchangeable Long-Time and Instantaneous functions. The trip unit is factory assembled and cannot be swapped or adjusted in the field.
