Siemens QJ23B17500S01 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Siemens
QJ23B17500S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B17500S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

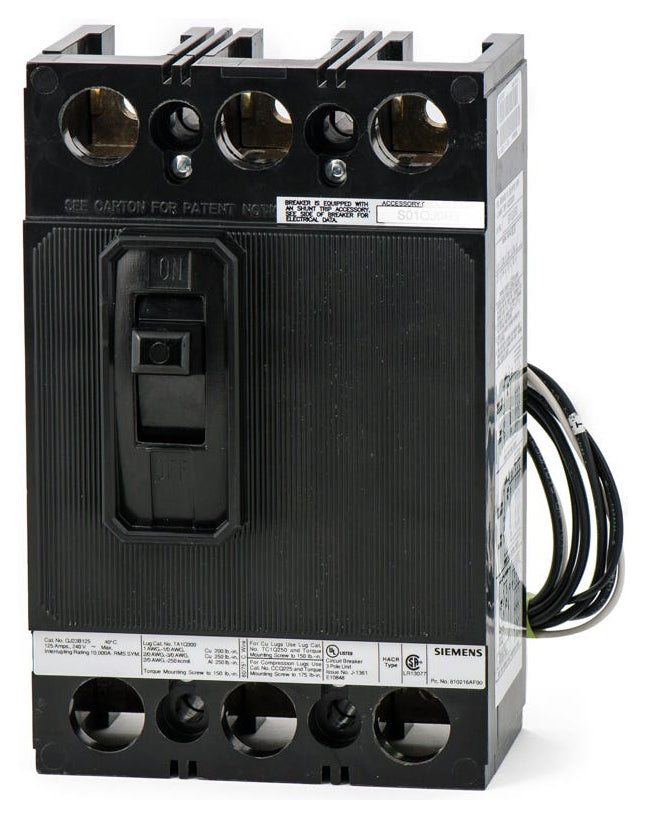

Siemens QJ23B17500S01 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for three-phase systems, the Siemens QJ23B17500S01 is a 175A molded case circuit breaker from the QJ-Frame family. It provides dependable thermal-magnetic protection for commercial facilities. This bolt-on breaker is compatible with Siemens P1, P2, and P3 panelboards. When upgrading, the QR23B175 serves as the replacement and requires an S01QR2 shunt trip kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B17500S01-R |
| Series | QJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich Siemens panelboards accept the QJ23B17500S01 circuit breaker?
This QJ frame breaker mounts directly into Siemens P1, P2, and P3 panelboards. It is also compatible with Siemens switchboards and modular enclosures designed for bolt-on QJ or QR frame breakers.
What does the 00S01 suffix indicate on the QJ23B17500S01?
The 00S01 suffix designates a factory-installed 120/240V AC shunt trip. This allows the breaker to be opened remotely from a control circuit for emergency power-off or equipment interlocks.
Can I field-install a shunt trip on a standard QJ23B175 breaker?
No. Internal accessories for the QJ frame, such as the shunt trip found on the QJ23B17500S01, are factory-installed only and cannot be added in the field.
What is the modern replacement for the QJ23B17500S01?
Siemens has replaced the QJ frame with the QR frame. The modern equivalent is the QR23B175. To match the shunt trip functionality, you must also install an S01QR2 shunt trip kit.
Is the QJ23B17500S01 suitable for reverse feed applications?
Yes, Siemens QJ frame molded case circuit breakers are UL Listed for reverse feed applications.
Are the trip units on the QJ23B17500S01 interchangeable?
No, this breaker features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous trip functions.
