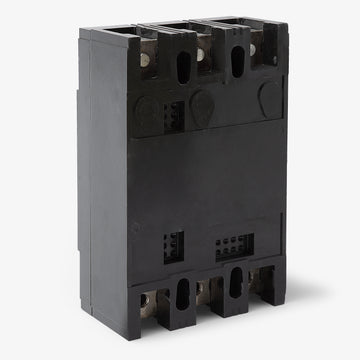

Siemens QJ23B175H Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Siemens
QJ23B175H
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B175H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B175H - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ23B175H - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B175H-R |
| Series | QJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Quantity
Siemens QJ23B175H - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B175H-R |
| Series | QJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 3-pole unit mount molded case circuit breaker provides reliable thermal magnetic protection. It features a non-interchangeable trip unit with LI functions. The QJ-frame breaker mounts into Siemens P1, P2, and P3 panelboards or switchboards. For legacy system upgrades, note that this model is replaced by the HQR23B175. Rated for 42kAIC at 240VAC, it delivers high interrupting capacity and is HACR rated for reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B175H-R |
| Series | QJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
5 answersWhich Siemens panelboards accept the QJ23B175H breaker?
This unit mount breaker is designed to bolt directly into Siemens P1, P2, and P3 panelboards. It is also compatible with Siemens switchboards and meter centers that accept QJ or QR frame breakers.
What is the current replacement for the legacy QJ23B175H?
The QJ frame has been superseded by the Siemens QR frame series. The HQR23B175 is a direct modern replacement that offers a higher interrupting capacity while fitting the same panelboard spaces.
What are the wire size requirements for the QJ23B175H terminals?
The load lugs accommodate 6 AWG to 300 kcmil for copper conductors, and 4 AWG to 300 kcmil for aluminum conductors.
What does the H suffix in QJ23B175H indicate?
The H designates a high interrupting capacity. This model provides a 42kAIC rating at 240VAC, allowing it to safely clear larger fault currents than standard QJ frame breakers.
How does the trip unit on the QJ23B175H operate?
It utilizes a fixed thermal-magnetic trip mechanism with Long-Time and Instantaneous (LI) functions. The thermal component responds to sustained overloads, while the magnetic component trips immediately during a short circuit.
