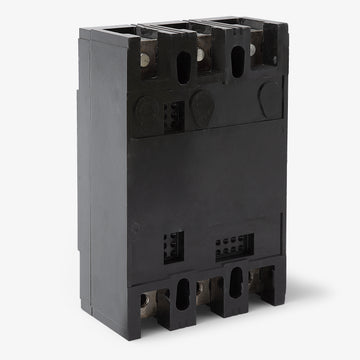

Siemens QJ23B225H Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Siemens
QJ23B225H
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B225H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B225H - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens QJ23B225H - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B225H |
| Series | QJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Quantity
Siemens QJ23B225H - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B225H-R |
| Series | QJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens QJ23B225H is a 3-pole, 225A MCCB from the Sentron family. It provides reliable overcurrent protection for heavy-duty systems. This unit mount breaker installs into Siemens meter centers, panelboards, and switchboards. It is officially replaced by the newer HQR23B225 model for facility upgrades. Featuring a fixed thermal-magnetic trip unit, it delivers a high interrupting capacity of 42kA at 240VAC and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B225H-R |
| Series | QJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhich Siemens panelboards accept the QJ23B225H circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards. It is also compatible with Siemens switchboards and modular meter centers.
Is there a newer replacement for the QJ23B225H?
Yes, Siemens officially replaced the legacy QJ frame with the newer QR frame. The direct replacement for this breaker is the HQR23B225, which shares the same form factor and mounting for easy retrofitting.
Can the QJ23B225H be reverse fed?
Yes, this breaker is reverse-feed capable, allowing it to be used in applications where power is supplied from the load side terminals.
Is the QJ23B225H suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
What specific frame type is the QJ23B225H?
While it belongs to the general QJ/QR frame group, this specific model is a QJ2H type frame, which provides a higher interrupting capacity of 42kA at 240V compared to standard QJ models.
