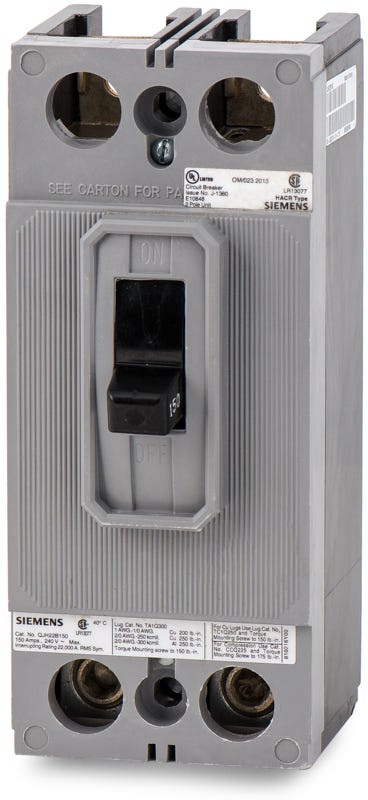

Siemens QJH22B150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Siemens
QJH22B150
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH22B150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH22B150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJH22B150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B150 |
| Series | QJH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens QJH22B150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B150-R |
| Series | QJH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
125A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens QJH22B150 is a 2-pole, 150A molded case circuit breaker from the Sentron QJ frame family. It features a thermal-magnetic trip unit providing reliable overload and short-circuit protection. This bolt-on MCCB installs into Siemens P1, P2, and P3 panelboards, SB switchboards, and motor control centers. It serves as a drop-in replacement for older QJ frame installations and can be substituted with the newer QRH22B150 series.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH22B150 |
| Series | QJH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards and switchboards are compatible with the QJH22B150?
This bolt-on branch breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as SB switchboards, motor control centers, and meter centers.
What is the difference between the Siemens QJ22B150 and the QJH22B150?
The primary difference is the interrupting rating. The QJ22B150 has a standard 10kAIC rating at 240V, while the QJH22B150 features a higher 22kAIC rating at 240V. Both share the same physical dimensions and bolt-on mounting style.
What wire sizes are accepted by the lugs on the QJH22B150?
The factory-installed lugs accept 6 AWG to 300 kcmil copper wire, or 4 AWG to 300 kcmil aluminum wire.
Are the trip settings on this breaker adjustable?
No, the QJH22B150 features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
Can the QJH22B150 be used in reverse feed applications?
Yes, this QJ-frame breaker is reverse feed capable, allowing it to be back-fed in compatible panelboard and switchboard configurations.
What is the modern replacement for the QJH22B150?
Siemens has transitioned the QJ frame to the newer QR frame. The QRH22B150 serves as the modern equivalent, though a specific mounting kit may be required when retrofitting into older panels.
