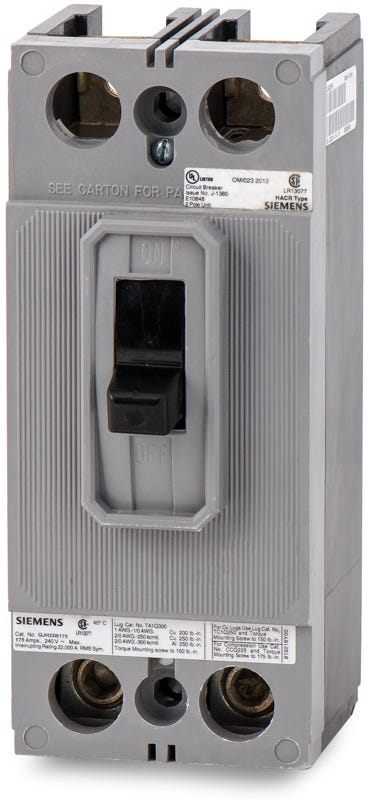

Siemens QJH22B175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Bolt-On
Siemens
QJH22B175
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH22B175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH22B175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJH22B175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B175 |
| Series | QJH |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Siemens QJH22B175 - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B175-R |
| Series | QJH |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, the Siemens QJH22B175 is a 2-pole, 175A molded case circuit breaker. As part of the Sentron QJ frame lineup, it utilizes a thermal-magnetic trip mechanism to deliver precise protection. The breaker mounts into Siemens P1, P2, and P3 panelboards, as well as compatible meter centers. It maintains existing infrastructure and is replaced by the QRH22B175 model.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH22B175 |
| Series | QJH |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersCan I install the QJH22B175 in a Siemens P1 panelboard?
Yes, but it requires a specific main or subfeed mounting kit. For original P1 panelboards, you will typically need a kit like the MBKQJ1200 to properly attach the 2-pole bolt-on connections to the panel bus.
What is the difference between the Siemens QJ22B175 and the QJH22B175?
The primary difference is the interrupting rating. The QJ22B175 is rated at 10kAIC at 240V, while the QJH22B175 features a higher interrupting capacity of 22kAIC at 240V.
Is the QJH22B175 a direct replacement for older I-T-E QJ frame breakers?
Yes. Siemens acquired I-T-E and continued manufacturing the QJ frame. The QJH22B175 can directly replace older I-T-E branded breakers with the exact same catalog number.
Has the Siemens QJH22B175 been superseded by a newer frame type?
Yes, Siemens has transitioned from the legacy QJ frame to the newer QR frame. The modern equivalent is the QRH22B175, though mounting hardware requirements may differ depending on your specific panelboard generation.
Is the QJH22B175 suitable for reverse feed applications?
Yes. This breaker features a non-interchangeable trip unit and is suitable for reverse feed applications, allowing it to be back-fed as a main breaker in compatible enclosures.
Is the QJH22B175 HACR rated for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific designation.
Does the QJH22B175 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker designed strictly for overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
