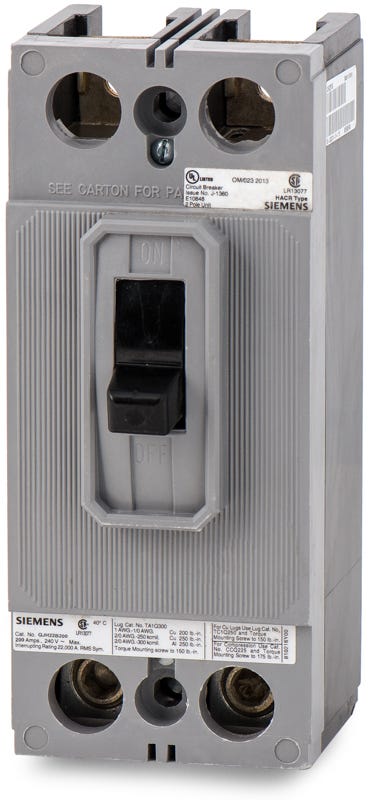

Siemens QJH22B200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Siemens
QJH22B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH22B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH22B200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens QJH22B200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B200 |
| Series | QJH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Quantity
Siemens QJH22B200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B200-R |
| Series | QJH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens QJH22B200 is a 200A molded case circuit breaker from the QJ frame series. It provides reliable thermal-magnetic protection for heavy-duty electrical systems requiring 240VAC operation. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards, switchboards, and meter centers. Note that this legacy QJH breaker has been replaced by the QRH22B200 model. Featuring a 22kAIC rating, it safely handles high short-circuit conditions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH22B200-R |
| Series | QJH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
7 answersWhat is the difference between the Siemens QJ22B200 and the QJH22B200?
The primary difference is the short-circuit interrupting rating. The QJ22B200 is rated at 10kAIC at 240V, while the QJH22B200 features a higher interrupting capacity of 22kAIC at 240V. Both share the same physical QJ frame dimensions and mounting hardware.
Can I install the QJH22B200 in a standard residential load center?
No. The QJH22B200 is a bolt-on molded case circuit breaker designed for commercial and industrial distribution equipment, such as Siemens P1, P2, and P3 panelboards or switchboards. It is not compatible with standard plug-on residential load centers.
Does the QJH22B200 require a mounting kit for panelboard installation?
Yes. When installing this QJ frame breaker into Siemens P1, P2, or P3 panelboards, a compatible strap or mounting hardware kit (such as the MBKQJ series for original P1 panels) is required to properly bolt the breaker to the busbars.
Is the QJH22B200 circuit breaker suitable for reverse feeding?
Yes. Because the QJH22B200 features a factory-sealed, non-interchangeable thermal-magnetic trip unit, it is suitable for reverse-feed applications (such as back-fed main breakers) in accordance with UL 489 standards.
Will the Siemens QJH22B200 replace older ITE brand QJ breakers?
Yes. Siemens acquired ITE and retained the QJ frame design. The QJH22B200 is a direct physical and electrical replacement for older ITE QJH22B200 or equivalent 200A QJ-frame breakers.
Are the thermal and magnetic trip settings on the QJH22B200 adjustable?
No. This breaker is equipped with a fixed thermal and fixed magnetic trip unit. The long-time (overload) and instantaneous (short-circuit) trip functions are factory-calibrated and cannot be adjusted in the field.
Can the QJH22B200 be used as a main breaker?
Yes, this 200A breaker can be utilized as a main breaker in compatible Siemens panelboards or meter centers, provided the enclosure and mounting hardware (such as a main breaker hold-down kit or strap) are rated for a QJ frame main.
