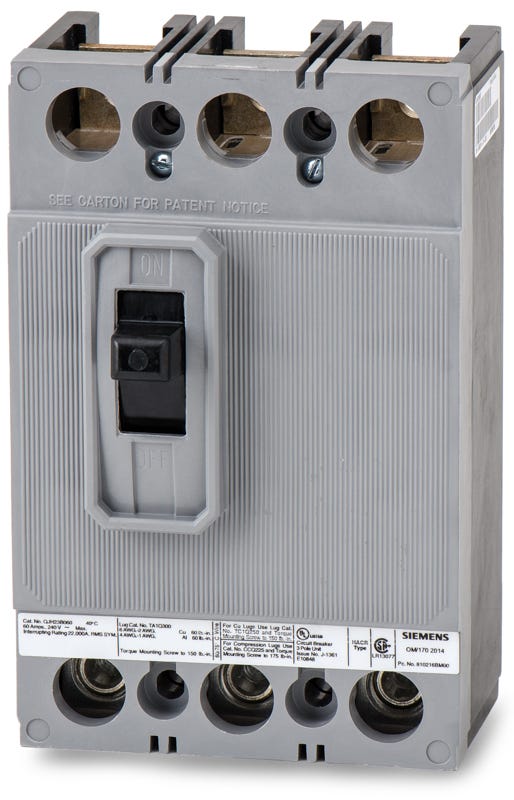

Siemens QJH23B070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Siemens
QJH23B070
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH23B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJH23B070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B070 |
| Series | QJH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens QJH23B070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B070 |
| Series | QJH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
3 Pole Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, this 70-amp molded case circuit breaker utilizes reliable thermal-magnetic trip technology for three-phase systems. The unit integrates seamlessly into Siemens P1, P2, and P3 panelboards, as well as SB switchboards and meter centers. Carrying a 22kAIC rating at 240VAC, it features a trip-free mechanism and quick-make/quick-break operation to ensure optimal safety across industrial distribution networks.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B070 |
| Series | QJH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens QJH23B070?
This QJ-frame breaker is designed for installation in Siemens P1, P2, and P3 panelboards. It is also compatible with Siemens SB switchboards, motor control centers, and meter centers.
What does the H in the QJH23B070 catalog number signify?
The H indicates a high-interrupting rating. While standard QJ2 breakers are rated for 10kAIC at 240VAC, the QJH series provides an upgraded 22kAIC interrupting capacity.
What wire sizes and materials are approved for the QJH23B070 lugs?
The factory lugs accept 6 AWG to 300 kcmil copper conductors, or 4 AWG to 300 kcmil aluminum conductors.
How does this breaker connect to the panelboard bus?
The QJH23B070 utilizes a bolt-on connection. It bolts directly to the busbars in compatible Siemens enclosures, providing a secure mechanical and electrical connection for commercial loads.
Are the thermal and magnetic trip settings adjustable on this breaker?
No. The QJH23B070 features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Can this breaker replace older ITE or Gould QJH models?
Yes. Siemens acquired the ITE and Gould electrical divisions. The Siemens QJH23B070 is a direct replacement for legacy ITE and Gould breakers sharing the exact same catalog number.
