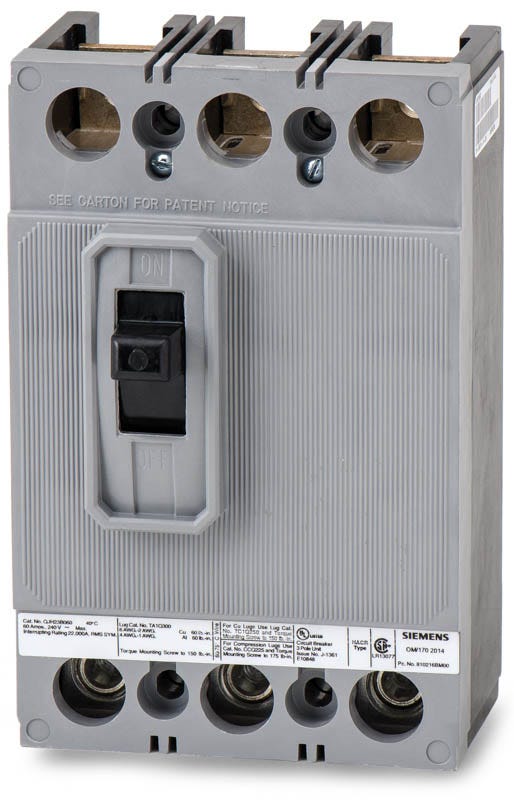

Siemens QJH23B080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
QJH23B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH23B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty power distribution, the Siemens QJH23B080 is an 80A, 3-pole molded case circuit breaker. The bolt-on unit installs into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and meter centers. It accepts 6 AWG to 300 kcmil wire via standard lug terminals. Featuring a 22kAIC interrupt rating at 240VAC, this QJ frame breaker includes fixed long-time and instantaneous trip functions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B080 |
| Series | QJH |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
6 answersWhat types of enclosures and panelboards is the Siemens QJH23B080 compatible with?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards, motor control centers, and meter centers.
What does the H in the QJH23B080 catalog number signify?
The H indicates a high interrupting rating. The QJH series provides 22kAIC at 240VAC, which is higher than the standard 10kAIC offered by base QJ models.
Can the Siemens QJH23B080 replace older ITE or Gould breakers?
Yes, Siemens acquired the ITE and Gould circuit breaker lines. The Siemens QJH23B080 is a direct replacement for older ITE or Gould breakers with the exact same QJH23B080 catalog number.
Are the trip settings on the QJH23B080 adjustable?
No, this breaker features fixed thermal and fixed magnetic trip settings for both long-time and instantaneous protection.
How does the QJH23B080 mount into a panelboard?
It features a bolt-on connection type, requiring it to be bolted directly to the panelboard bus. It is not compatible with plug-in load centers.
What type of protection does the QJH23B080 provide?
It uses a thermal magnetic trip unit to provide both long-time overload protection and instantaneous short circuit protection.
