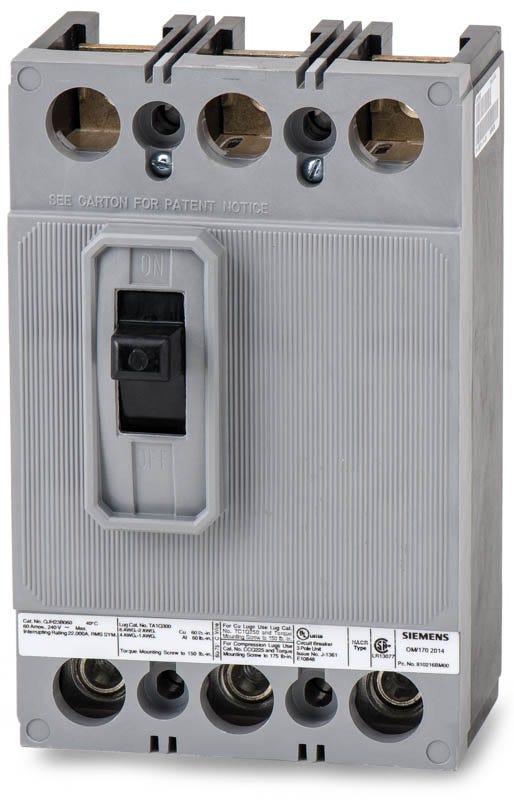

Siemens QJH23B090 Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Siemens
QJH23B090
Circuit Breaker
Brand
Siemens
SKU
QJH23B090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B090 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens QJH23B090 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B090 |
| Series | QJH |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Siemens QJH23B090 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | QJH |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Siemens QJH23B090 3 Pole Circuit Breaker
The Siemens QJH23B090 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 240VAC. It has an interrupting rating of 22kAIC at 240VAC. The QJH23B090 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B090 |
| Series | QJH |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the QJH23B090 circuit breaker?
This breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible switchboards and meter centers. Depending on the specific panelboard model, a separate mounting strap kit may be required for installation.
What does the H in the QJH23B090 catalog number signify?
The H indicates a high interrupting capacity. While standard QJ23B090 breakers are typically rated at 10kAIC, the QJH23B090 provides a higher 22kAIC rating at 240VAC.
Are the factory lugs on the QJH23B090 rated for aluminum wire?
Yes, the included load-side lugs accept both copper and aluminum conductors. The supported wire range is 6 AWG to 300 kcmil for copper, and 4 AWG to 300 kcmil for aluminum.
Is the QJH23B090 interchangeable with newer QR frame breakers?
Yes. The QJH23B090 is an original QJ frame breaker, but Siemens designed the newer QR frame series with the exact same form factor and mounting footprint. This allows QR breakers to serve as direct retrofits for legacy QJ and QJH frames.
Does the QJH23B090 snap into place or bolt onto the bus?
The QJH23B090 is a bolt-on molded case circuit breaker. It requires a bolted connection to the panelboard bus or a dedicated mounting strap, ensuring a secure connection for commercial and industrial applications.
Can I adjust the trip settings on the QJH23B090?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time thermal and instantaneous magnetic trip functions are factory-set and cannot be adjusted in the field.
