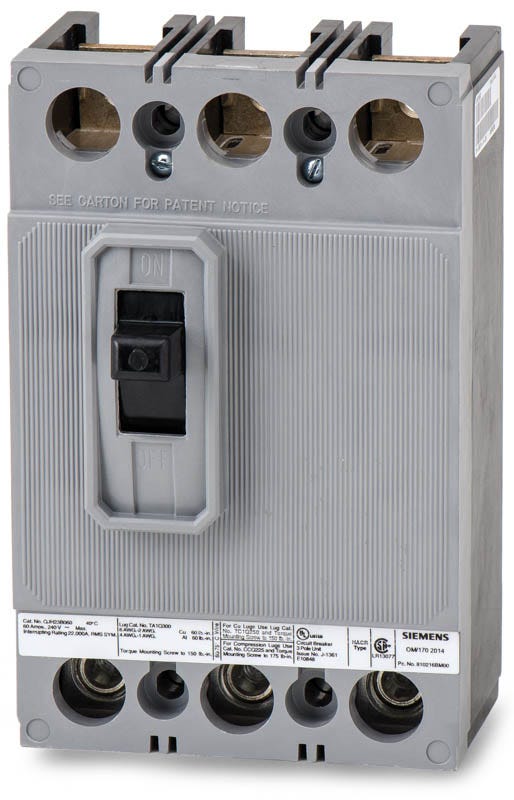

Siemens QJH23B110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
QJH23B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH23B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens QJH23B110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B110 |
| Series | QJH |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Sold out
Quantity
Siemens QJH23B110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B110 |
| Series | QJH |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Utilizing a non-interchangeable thermal-magnetic trip unit, the Siemens QJH23B110 provides 110 amps of reliable overcurrent protection. This 3-pole molded case circuit breaker is built for demanding commercial and industrial power distribution environments. Designed for secure bolt-on connectivity, this QJ frame breaker installs into Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible switchboards. It carries a 22kAIC rating at 240VAC and includes a trip-free mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B110 |
| Series | QJH |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards accept the QJH23B110 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards and meter centers.
What wire sizes are accepted by the load side lugs on this breaker?
The load side lugs accept 6 AWG to 300 kcmil copper wire or 4 AWG to 300 kcmil aluminum wire.
What does the H in the QJH23B110 catalog number indicate?
The H designates a high interrupting capacity. This QJH2 type breaker provides a 22kAIC rating at 240V, compared to standard QJ breakers which have a lower interrupting rating.
Is the trip unit on the QJH23B110 interchangeable?
No, this breaker features a fixed, non-interchangeable thermal-magnetic trip unit with long-time and instantaneous functions.
How does the QJH23B110 connect to the panelboard?
This is a bolt-on circuit breaker designed to bolt directly to the panelboard bus for a secure, vibration-resistant connection.
What are the physical dimensions of the QJH23B110 breaker?
This QJ frame breaker measures 7 inches high, 4.5 inches wide, and 2.34 inches deep.
