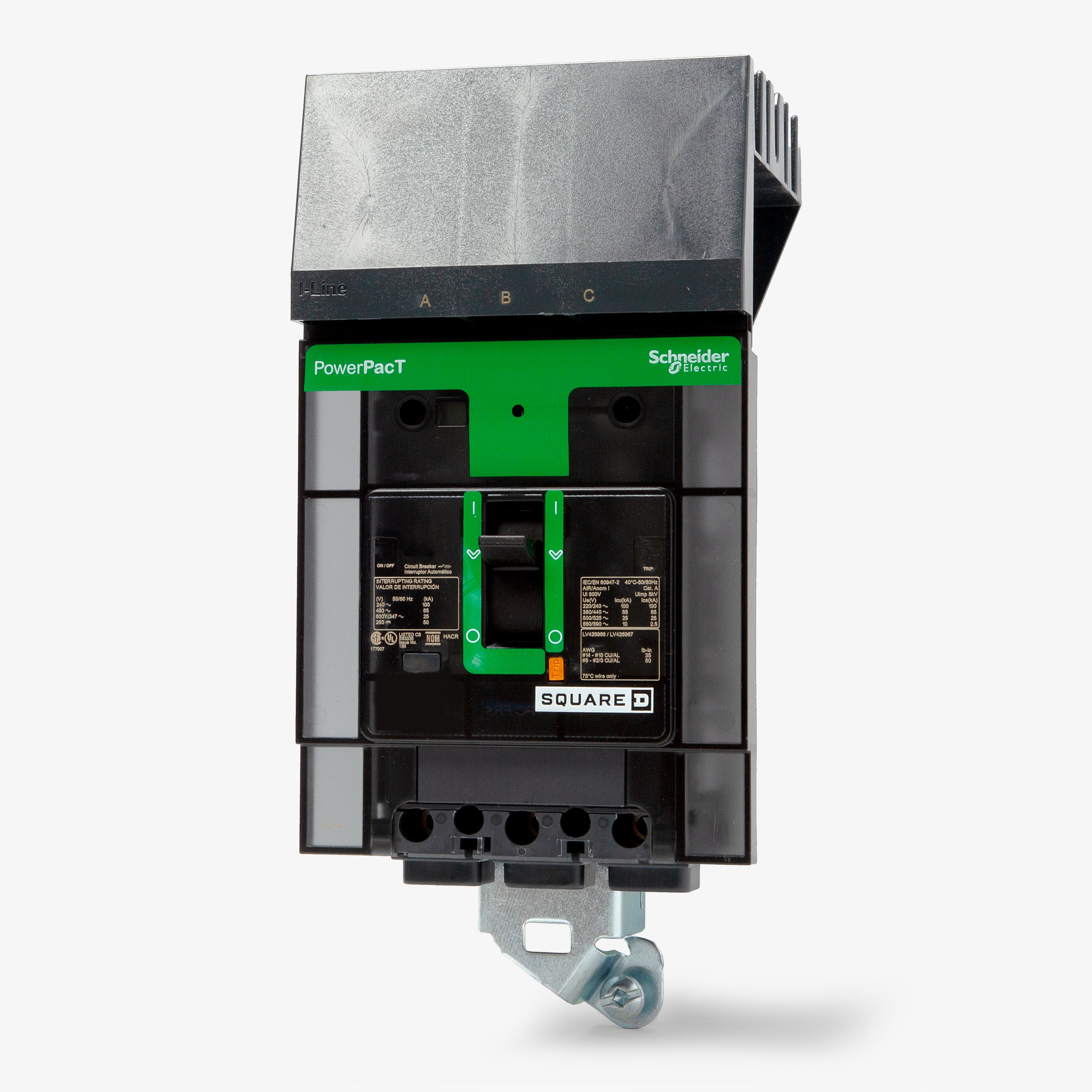

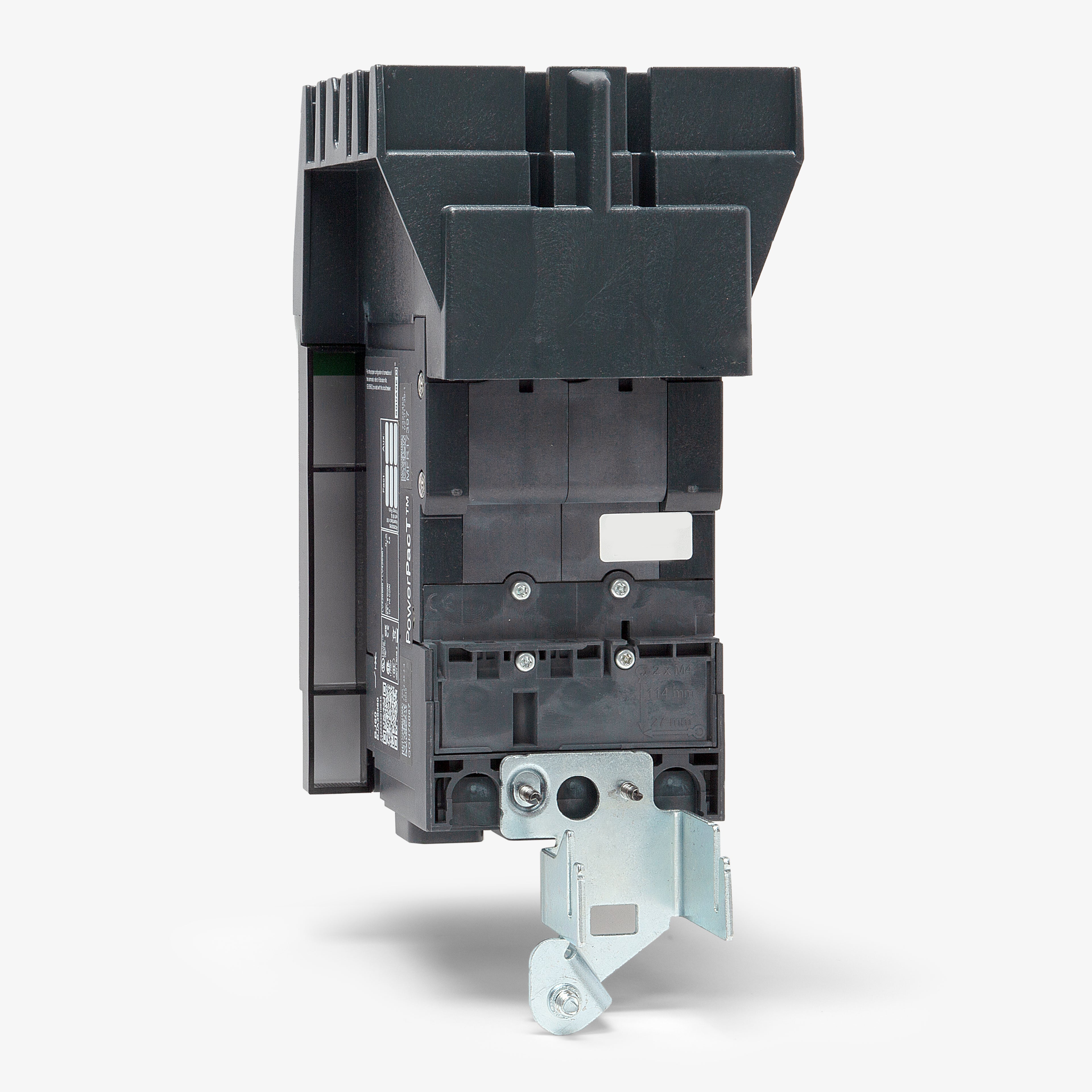

Square D BDA34090Y - 90A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU BDA34090Y
4.9
Rated 4.9 out of 5 stars
8 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D BDA34090Y - 90A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU BDA34090Y
4.9
Rated 4.9 out of 5 stars
8 Reviews
Select Item Condition
Earn 805 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D BDA34090Y - 90A 3 Pole Molded Case Circuit Breaker

New

$805.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for commercial distribution, the Square D BDA34090Y provides robust thermal-magnetic protection in a compact PowerPacT B-Frame footprint. This 3-pole, 90A breaker is built for demanding electrical systems. It installs into Square D I-Line panelboards and switchboards with a factory-configured ABC phase connection. It also serves as an exact replacement for legacy FA34090 breakers. Rated 18 kAIC at 480Y/277V, it features Visi-Trip indicators and current-limiting capabilities.

Specifications

Brand Square D
Series BDA
Part Number BDA34090Y
Amperage 90A
Voltage 208Y/120VAC, 240VAC, 480Y/277VAC, 250VDC
Poles 3
Phase 3
AIC Rating 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC
Mounting Style I-Line
Terminal Type Lugs
For Use With Square D I-Line Panelboards, Square D I-Line Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG-2/0 AWG (Al/Cu)
Max Wire 2/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle
Accessories Factory-configured for ABC-Phase connection
Standards CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489
Approval CCC, CE, CSA, EAC, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Visual Trip Indicator
