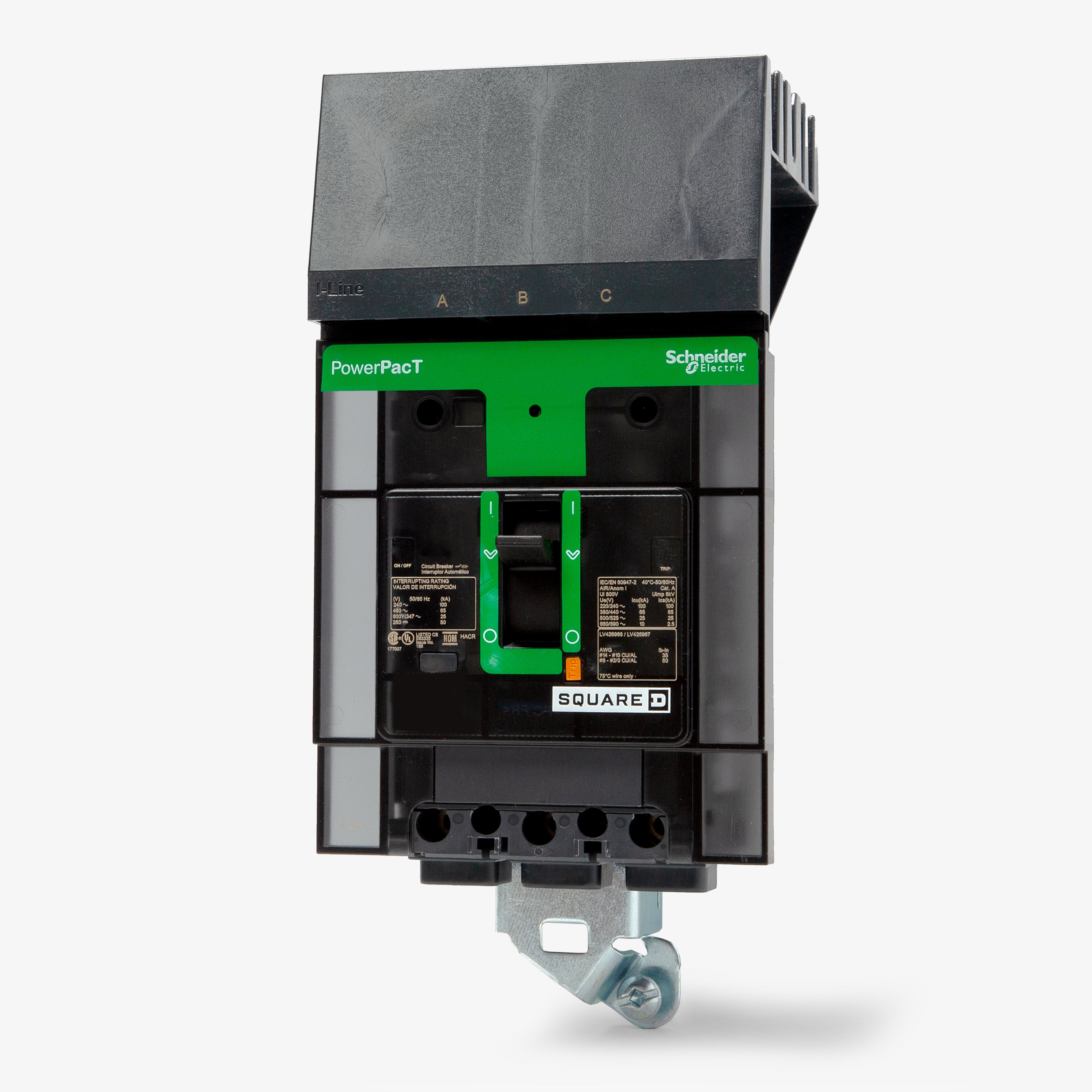

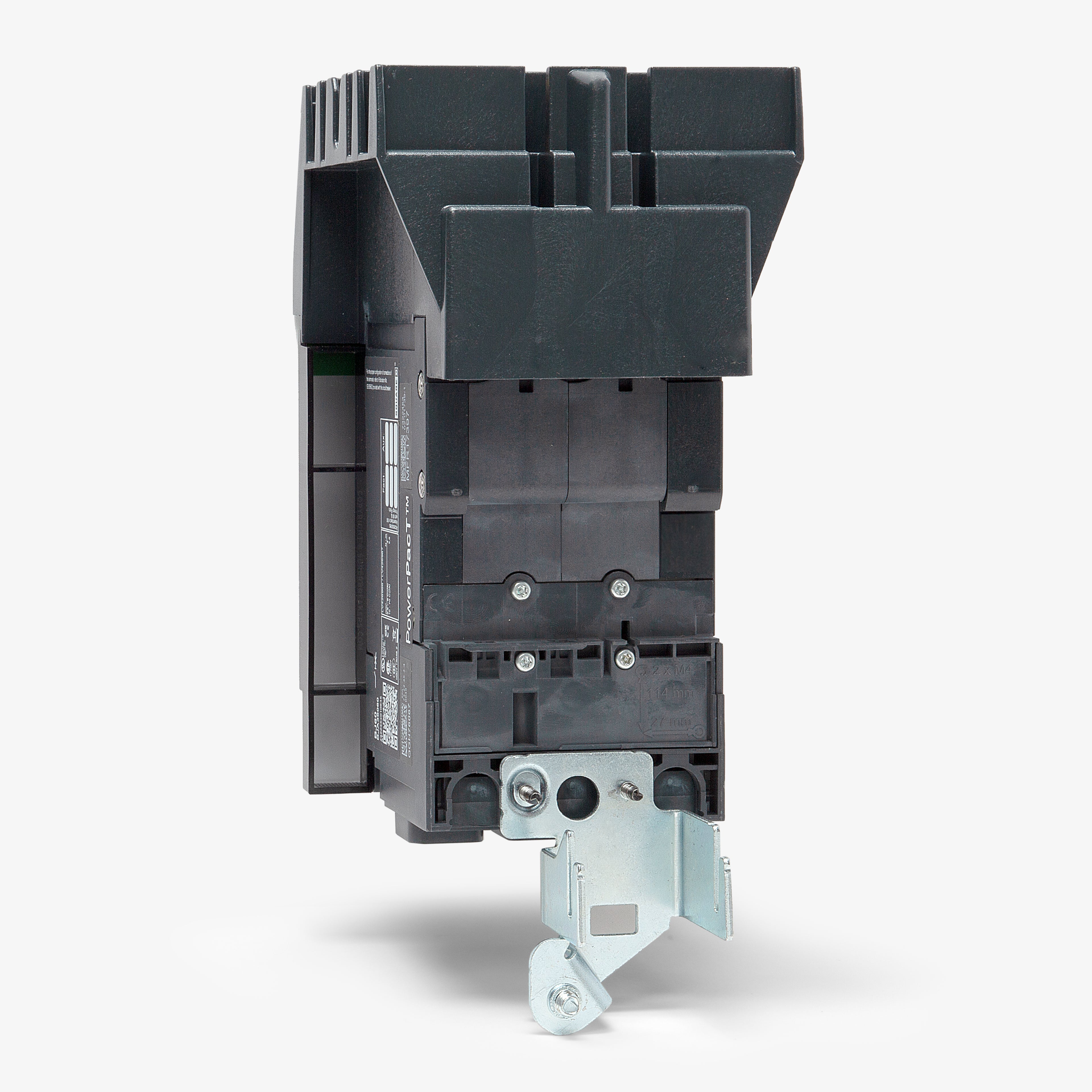

Square D BDA36020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- I-Line
Square D
BDA36020
Molded Case Circuit Breaker
Brand
Square D
SKU
BDA36020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDA36020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D BDA36020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | I-Line Bracket |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Square D BDA36020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | I-Line Bracket |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Built for industrial environments, the BDA36020 is a 3-pole, 20A molded case circuit breaker from the Square D PowerPacT B-Frame lineup. It delivers precise thermal-magnetic protection with fixed LI trip functions. Featuring a plug-on jaw design, this breaker mounts into Square D I-Line panelboards. It is the designated replacement for the discontinued FA36020, ensuring a smooth transition for facility maintenance.Specifications
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | I-Line Bracket |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards are compatible with the BDA36020 circuit breaker?
This breaker is designed specifically for Square D I-Line panelboards and switchboards. It utilizes a plug-on phase connection system for fast installation directly onto the panel bus.
Can the BDA36020 be used to replace an older FA36020 breaker?
Yes. The PowerPacT B-frame is Schneider Electric's direct replacement for legacy F-frame breakers, including the FA and FH series. It installs into the exact same I-Line mounting space.
Is the BDA36020 rated for HACR applications?
Yes, all standard PowerPacT B-frame circuit breakers carry an HACR rating, making them suitable for use with heating, air conditioning, and refrigeration equipment.
Can this breaker be reverse fed?
Yes. The BDA36020 features a sealed thermal-magnetic trip unit and can be reverse fed from either the top or bottom lugs without any reduction in performance.
What is the recommended lug torque for the BDA36020?
Torque specifications depend on the wire size used. For 14 AWG to 10 AWG wire, torque the lugs to 31.9 to 38.9 lb-in. For 8 AWG to 2/0 AWG wire, torque the lugs to 44.3 to 54.9 lb-in.
Does this breaker include a manual trip mechanism?
Yes, it features an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker to verify proper operation of the mechanical linkage.
Does this breaker mount onto a standard DIN rail?
No. While unit-mount PowerPacT B-frame breakers offer DIN rail compatibility, the BDA36020 is strictly an I-Line plug-in breaker designed for I-Line bus systems.
