Square D EDB24045 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Square D
EDB24045
Miniature Circuit Breaker
Brand
Square D
SKU
EDB24045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

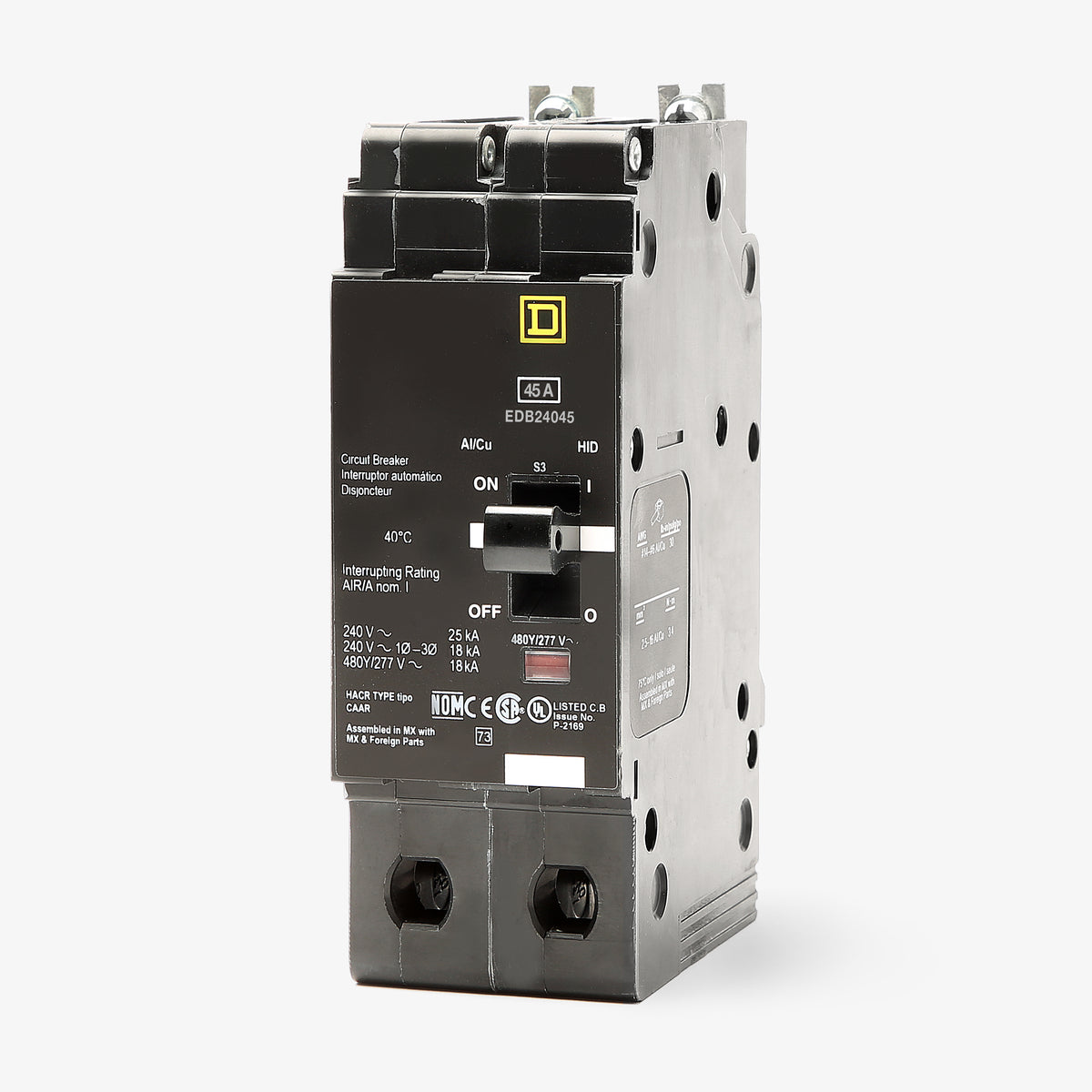

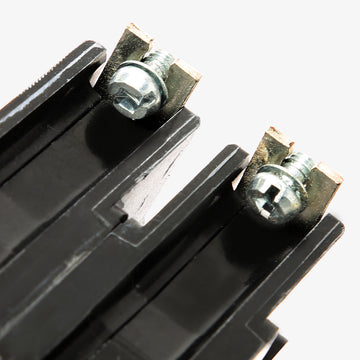

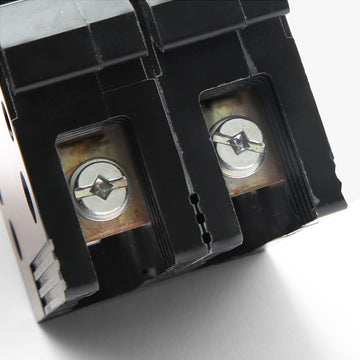

Square D EDB24045 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial electrical systems, the Square D EDB24045 delivers robust thermal-magnetic protection. This 45-amp, two-pole component is part of the E-Frame family. It mounts seamlessly into Square D NF series panelboards using a secure bolt-on connection, serving as an exact replacement for discontinued EHB24045 models. Rated for 25kA interrupting capacity at 240VAC, it includes Visi-Trip technology for rapid fault identification and is HACR rated for HVAC loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB24045 |
| Series | EDB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the EDB24045 circuit breaker?
The EDB24045 is designed exclusively for use in Square D NF series panelboards.
How many panel spaces does this 2-pole EDB breaker require?
This 2-pole breaker occupies two spaces in a Square D NF panelboard.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
The difference is their interrupting rating at 480Y/277VAC. EDB breakers are rated at 18kAIC, EGB at 35kAIC, and EJB at 65kAIC. They share the same physical E-frame and fit the same NF panelboards.
Can I replace an EDB24045 with an EGB or EJB breaker?
Yes, EGB and EJB breakers have the same physical dimensions and fit the same NF panelboards. They can be used as direct replacements if your application requires a higher short circuit current rating.
Is the EDB24045 suitable for use on a 480V ungrounded delta system?
No. The 480Y/277VAC rating indicates it is only suitable for solidly grounded wye systems. It cannot be used on ungrounded or corner-grounded 480V delta systems.
Is this breaker HACR rated for HVAC equipment?
Yes, Square D EDB circuit breakers are UL Listed as HACR type, making them suitable for heating, air conditioning, and refrigeration applications.
Can the EDB24045 be used in a 120/240V or 208Y/120V system?
Yes, while it has a maximum voltage rating of 480Y/277VAC, it is fully compatible and UL listed for use on lower voltage systems like 120/240VAC and 208Y/120VAC.
Will this breaker fit in a Square D QO or NQ panelboard?
No, E-frame breakers like the EDB24045 feature a bolt-on connection specifically designed for NF panelboards. They will not fit in QO or NQ series panels.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
Reviews
Review summary
Customers rate this product 5.0 out of 5 based on 111 reviews.
Total 5 star reviews: 109 Total 4 star reviews: 2 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
Reviews Summary
Generated by AI from 87 most recent customer reviews
Last updated 8/7/25
Customers say these circuit breakers arrive quickly and function as expected. Many reviews mention competitive pricing and reliable shipping. The ordering process receives praise for its simplicity, with users noting the website is easy to navigate. Frequent comments address product availability and proper packaging. While some note receiving older stock items, users consistently report the breakers work effectively.
