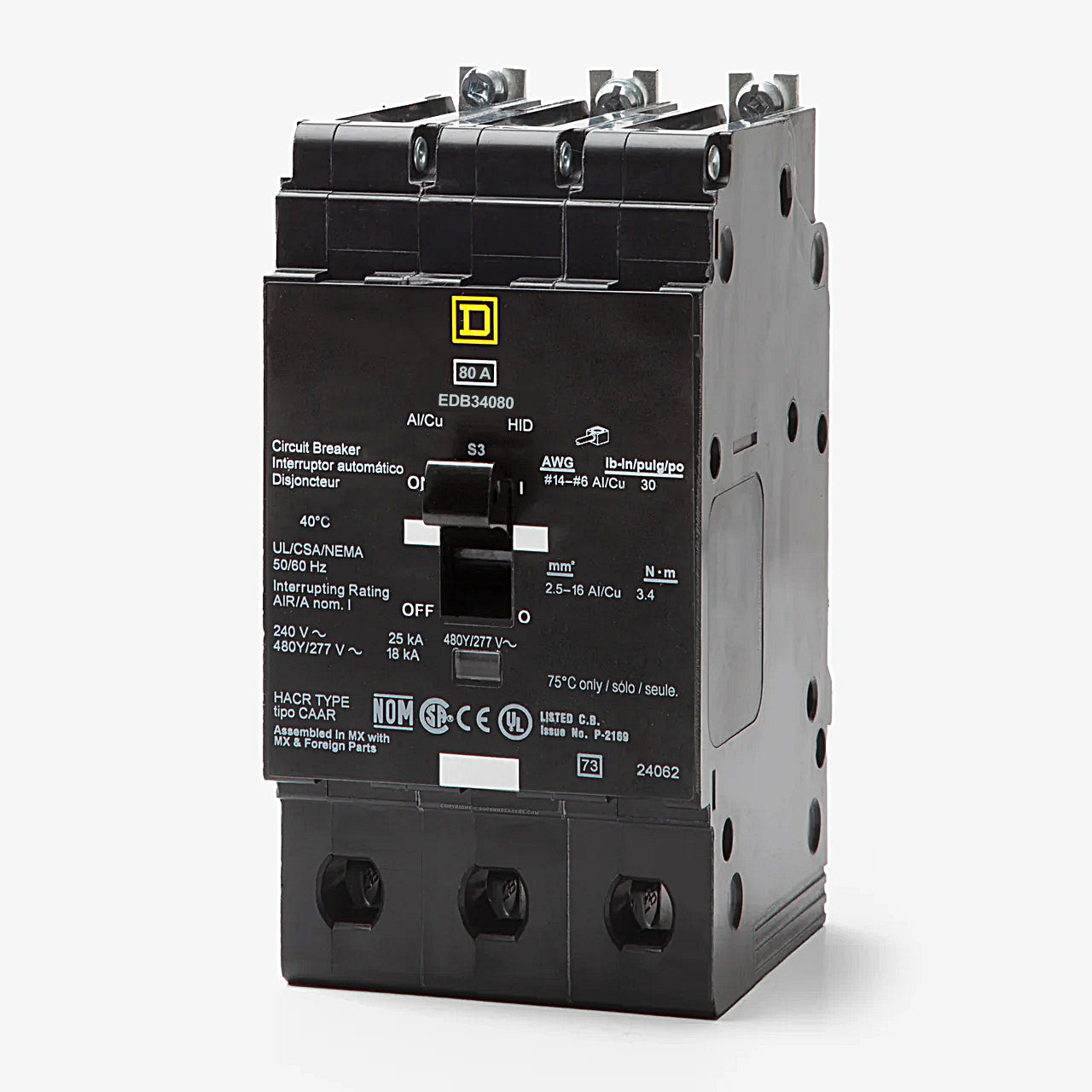

Square D EDB34080 Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Square D
EDB34080
Miniature Circuit Breaker
Brand
Square D
SKU
EDB34080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB34080 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EDB34080 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EDB34080 |
| Series | EDB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
Square D EDB34080 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EDB34080-R |
| Series | EDB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
70A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
Description
Built for commercial power distribution, this 80A, 3-pole miniature circuit breaker provides reliable thermal-magnetic protection. The E-Frame design is optimized for consistent performance in demanding electrical environments. It mounts via a sturdy bolt-on connection specifically into Square D NF panelboards. The included lugs accommodate 14-2/0 AWG copper or 12-2/0 AWG aluminum wiring. With an 18 kAIC rating at 480Y/277VAC, it features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34080 |
| Series | EDB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the EDB34080 circuit breaker?
The EDB34080 is a bolt-on E-Frame breaker designed exclusively for use in Square D NF series panelboards.
What is the difference between the EDB34080, EGB34080, and EJB34080 breakers?
These breakers share the same physical dimensions and trip curves but have different maximum interrupting ratings at 480Y/277VAC. The EDB34080 is rated at 18kAIC, the EGB34080 at 35kAIC, and the EJB34080 at 65kAIC.
How much mounting space does the EDB34080 require in the panelboard?
As a 3-pole E-Frame breaker, it requires three mounting spaces. Each pole is approximately 0.98 inches wide, taking up about 2.94 inches of total width in the panel.
Can the EDB34080 circuit breaker be reverse-fed?
Yes, the standard EDB34080 thermal-magnetic circuit breaker can be reverse-fed (back-fed) for use as a main breaker when properly secured and installed according to local electrical codes.
Can I field-install a shunt trip on the EDB34080?
No, electrical accessories such as 120VAC shunt trips, auxiliary switches, and alarm switches must be factory-installed by Square D. Mechanical accessories, such as handle padlocks, can be field-installed.
Does the EDB34080 feature a visual trip indicator?
Yes, this E-Frame molded case circuit breaker includes the Square D VISI-TRIP feature. When the breaker trips, a highly visible red indicator appears in the window, allowing personnel to quickly identify the faulted circuit.
Is the EDB34080 suitable for HVAC or high-intensity discharge lighting?
Yes, this breaker is HACR (Heating, Air Conditioning, and Refrigeration) rated for use with HVAC equipment. It is also UL Listed for HID (High-Intensity Discharge) lighting applications.
Can the EDB34080 be used on a corner-grounded delta system?
Yes, these E-Frame breakers are UL Listed for use on 240V corner-grounded delta systems (grounded B phase).
