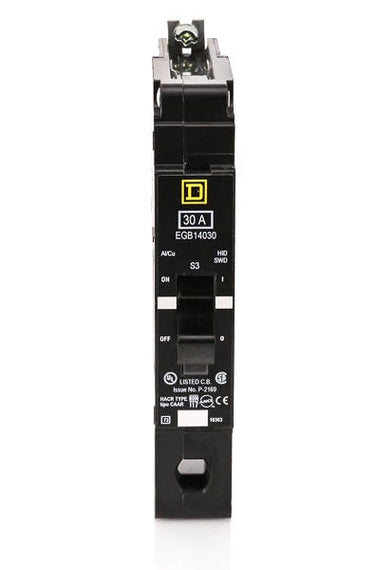

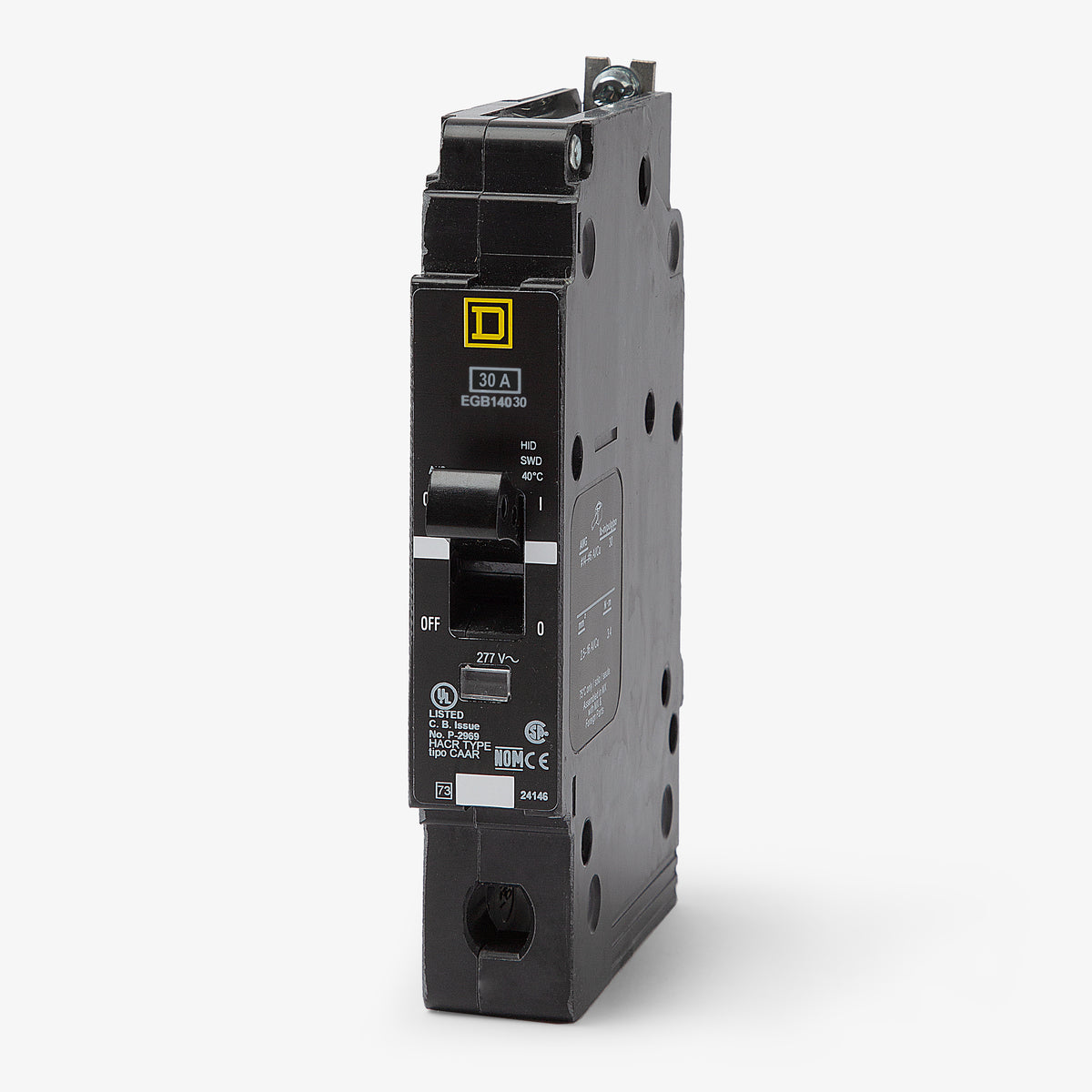

Square D EGB14030 Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Square D
EGB14030
Miniature Circuit Breaker
Brand
Square D
SKU
EGB14030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB14030 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB14030 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14030 |
| Series | EGB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D EGB14030 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14030-R |
| Series | EGB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
40A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
Description
Part of the Square D E-Frame family, this 30A single-pole unit provides overcurrent protection for commercial systems. It features fixed thermal-magnetic trip elements. Installation into NF panelboards utilizes a secure bolt-on mounting style. Included lugs accept 14-6 AWG copper wire, ensuring versatile connectivity for branch circuits. Rated for 65kA interrupting capacity at 120VAC, it offers substantial fault clearance. The Visi-Trip indicator allows rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB14030 |
| Series | EGB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EGB14030 circuit breaker?
This E-frame breaker is designed specifically for use in Square D NF series panelboards. It is not compatible with NQ or I-Line panelboards.
Can I use the EGB14030 to replace an EDB14030?
Yes. The EGB14030 shares the same physical dimensions and bolt-on mounting as the EDB14030 but offers a higher interrupting rating (35kAIC versus 18kAIC at 277V). It is a compliant upgrade when higher fault current protection is required.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire.
Is this 1-pole breaker suitable for 480V systems?
As a 1-pole breaker, it is rated for 277VAC. It is commonly used on 480Y/277V solidly grounded wye systems where the line-to-neutral voltage does not exceed 277V. It cannot be used on 480V ungrounded delta systems.
What is the difference between EGB and EJB breakers?
The difference is the interrupting rating. EGB breakers are rated at 35kAIC at 277V, while EJB breakers provide a higher rating of 65kAIC at 277V. Both share the same E-frame footprint and fit the same NF panelboards.
Does this breaker include ground fault or arc fault protection?
No. The EGB14030 is a standard thermal-magnetic breaker providing only long-time overload and instantaneous short-circuit protection. It does not feature GFCI or AFCI capabilities.
