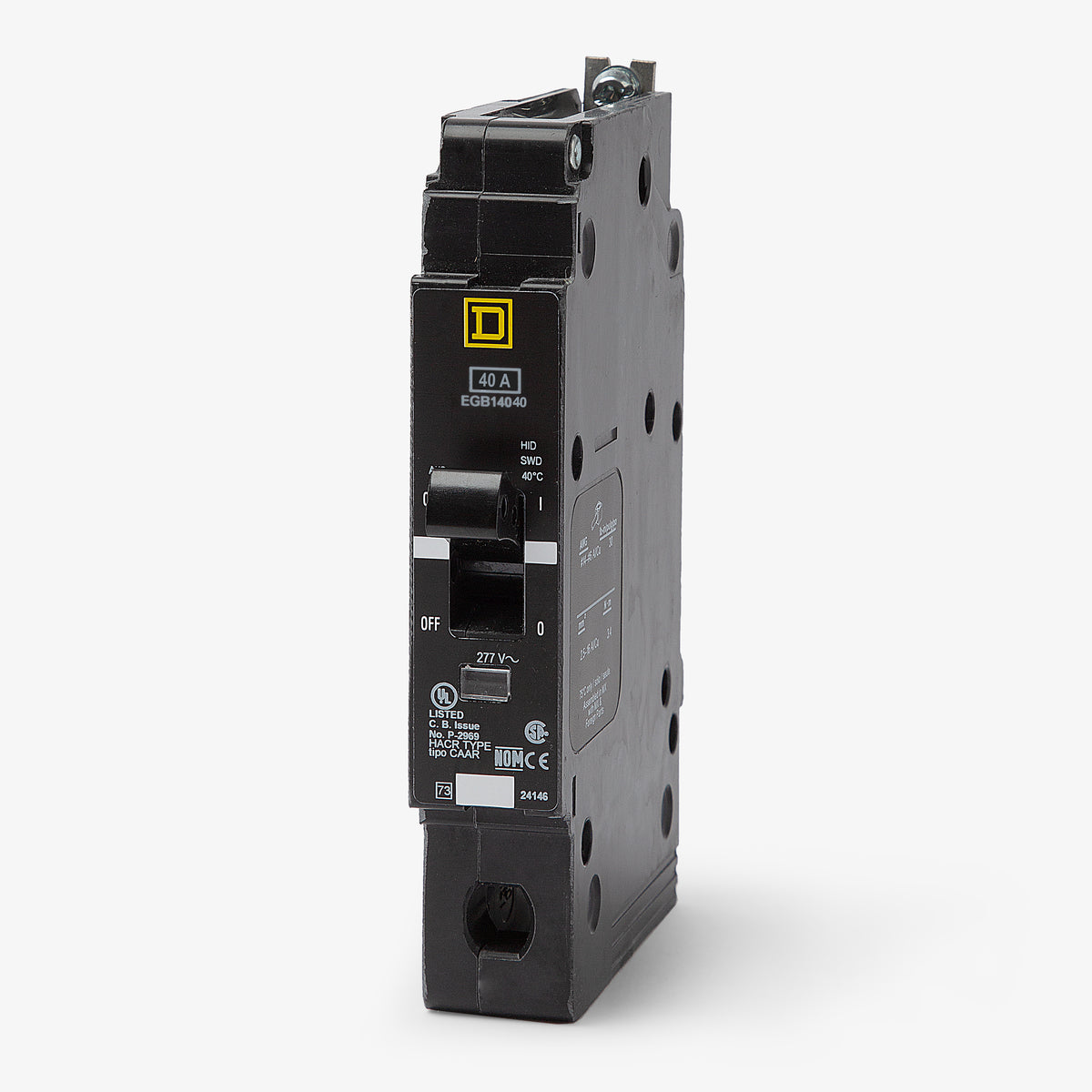

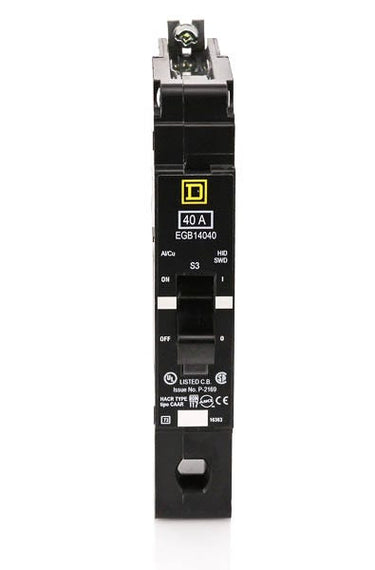

Square D EGB14040 Miniature Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Square D
EGB14040
Miniature Circuit Breaker
Brand
Square D
SKU
EGB14040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB14040 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB14040 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14040 |
| Series | EGB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |

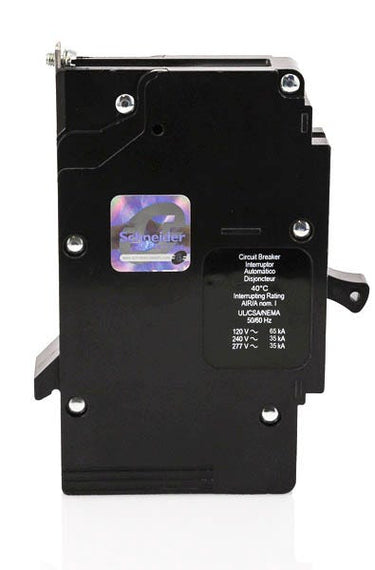

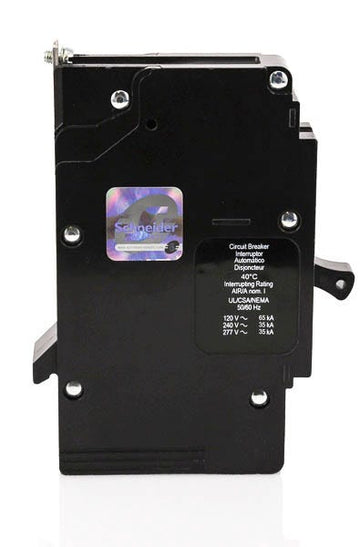

| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EGB14040 - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14040-R |
| Series | EGB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description

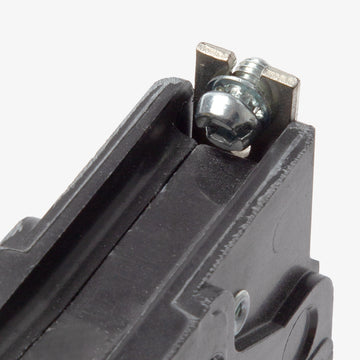

Built for commercial environments, the Square D EGB14040 provides 40 amps of thermal-magnetic protection. This single-pole E-Frame miniature circuit breaker safeguards electrical systems against overloads and short circuits. It mounts securely into Square D NF panelboards using a standard bolt-on connection. The unit accepts 14-2/0 AWG copper or aluminum wire via load lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB14040 |
| Series | EGB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EGB14040 circuit breaker?
This breaker is designed exclusively for use in Square D NF series panelboards. It features a bolt-on connection and will not fit QO, Homeline, or I-Line panels.
What are the torque specifications for the EGB14040 load terminals?

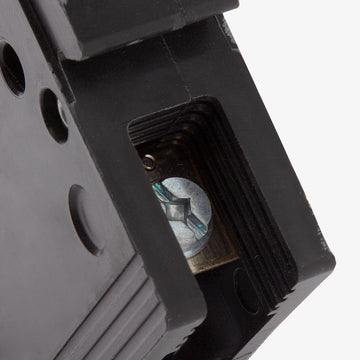

The required torque depends on the wire size used. For 14 AWG to 10 AWG wire, torque the terminal to 34.5 lb-in. For 8 AWG to 2/0 AWG wire, torque to 49.6 lb-in. The lugs accept both copper and aluminum conductors.
Does the EGB14040 feature a visual trip indicator?
Yes, Square D E-frame breakers include a Visi-Trip indicator. When the breaker trips, the handle snaps to a midpoint position and a highly visible red indicator appears to help quickly locate the tripped circuit.
What does the G in the EGB14040 part number signify?
In Square D E-frame breakers, the middle letter indicates the interrupting capacity. The G designates a 35 kAIC rating at 277VAC.
Can I substitute an EDB14040 or EJB14040 for this breaker?
Yes, they share the same physical dimensions and mount in the same NF panelboards. However, the EDB14040 has a lower interrupting rating of 18 kAIC at 277VAC, while the EJB14040 offers a higher rating of 65 kAIC at 277VAC. Ensure the replacement meets your facility fault current requirements.
Does the EGB14040 include ground fault or arc fault protection?
No, this is a standard thermal magnetic breaker providing overload and short circuit protection. It does not include integral equipment ground fault protection (EPD) or arc fault protection.
