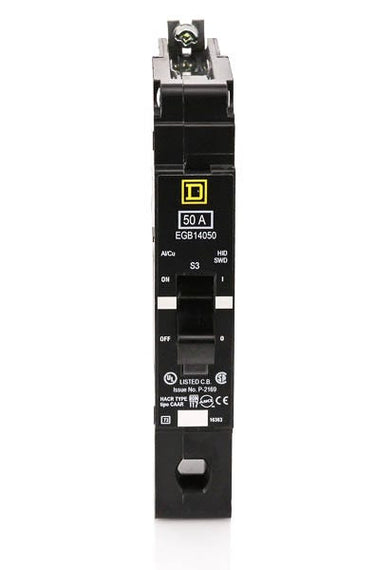

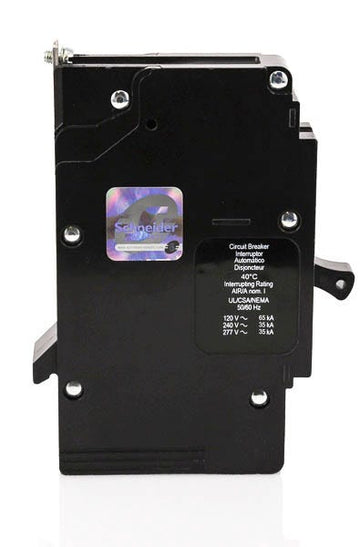

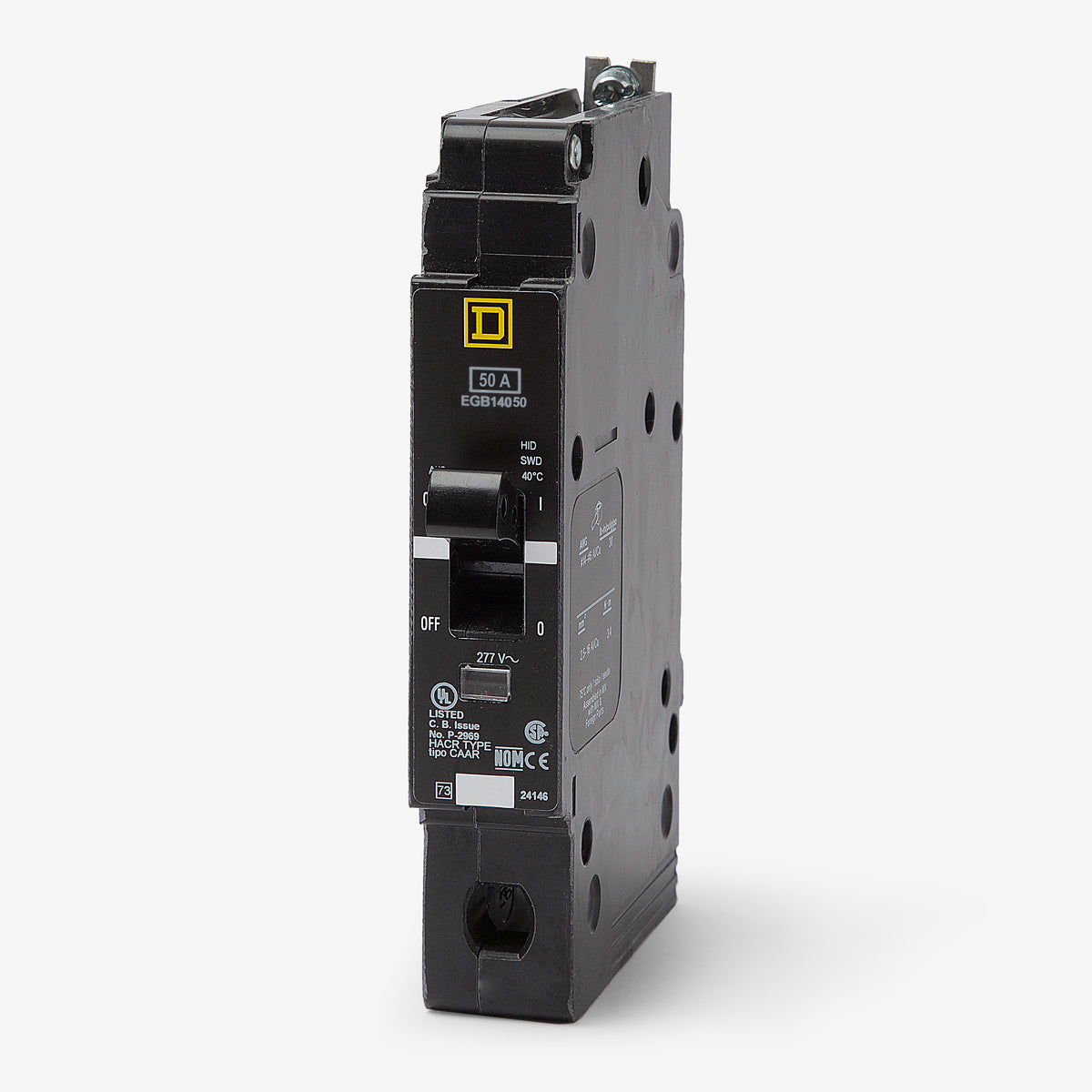

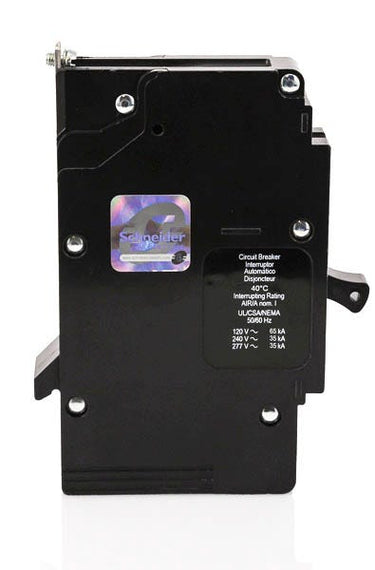

Square D EGB14050 Miniature Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Square D
EGB14050
Miniature Circuit Breaker
Brand
Square D
SKU
EGB14050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB14050 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB14050 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14050 |
| Series | EGB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EGB14050 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14050-R |
| Series | EGB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description

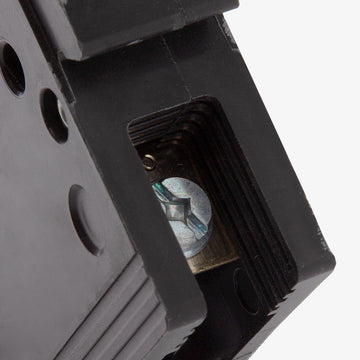

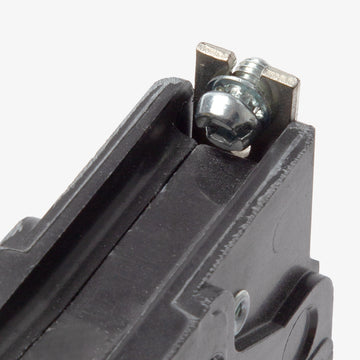

Providing reliable overcurrent protection, the Square D EGB14050 is a 50-amp, single-pole miniature circuit breaker. It belongs to the E-Frame family and is built to handle commercial electrical loads with precision. The breaker bolts firmly into Square D NF panelboards, ensuring a tight, vibration-resistant connection. It comes equipped with aluminum load-side lugs. Rated to interrupt 65 kAIC at 120VAC, it offers robust defense against severe short circuits and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB14050 |
| Series | EGB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the Square D EGB14050?
The EGB14050 is an E-frame circuit breaker designed exclusively for bolt-on installation in Square D NF series panelboards.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
These are all E-frame breakers designed for NF panelboards, but they feature different interrupting ratings. At 277V, the EDB is rated for 18kAIC, the EGB is rated for 35kAIC, and the EJB is rated for 65kAIC.
Can the EGB14050 be reverse fed?
Yes, Square D E-frame breakers like the EGB14050 do not have line and load restrictions and are suitable for reverse-feed applications.
What is the maximum amperage available for 1-pole EGB breakers?
The maximum current rating for 1-pole EDB, EGB, and EJB circuit breakers is 70 amps. For 2-pole and 3-pole configurations, the maximum is 125 amps.
Is the EGB14050 HACR rated?
Yes, all Square D EGB circuit breakers are UL Listed as HACR type, making them suitable for use with heating, air conditioning, and refrigeration equipment.
Does the EGB14050 include equipment ground fault protection?
No. Standard EGB breakers provide thermal-magnetic overload and short-circuit protection. For 30mA equipment ground fault protection, an EGB-EPD variant is required.
Does the EGB14050 feature a trip indicator?
Yes, Square D E-frame breakers include the Visi-Trip indicator, which provides a clear visual confirmation when the breaker has tripped.
