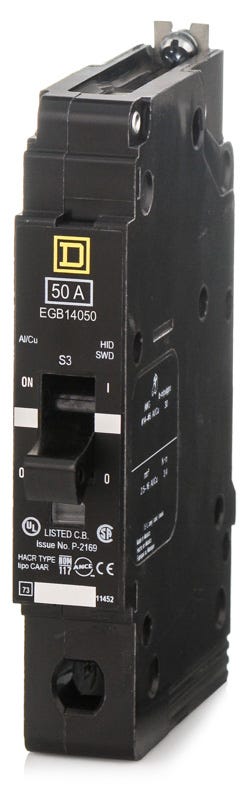

The Square D EGB14050 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 277VAC. It has an interrupting rating of 35kAIC at 120/240VAC. The EGB14050 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
Brand
Square D
Series
EGB
Amperage
50
Voltage
277VAC
Poles
1
Phase
1
Mounting Type
Bolt-On
Approval
UL, CSA, cULus
Interrupting Rating
35kAIC at 120/240VAC
Frame Type
EGB
Connection Type
Bolt-On
Functions
LI - Long-Time and Instantaneous Trip
Terminal Connection
Lugs Aluminum
Length (in)
4.05
Width (in)
0.98
Height (in)
5.66
Wire Gauge
AWG 14 to AWG 2/0, AWG 12 to AWG 2/0, Cu/Al
For Use With
NF Panelboard
Standards
HID, HACR
Temperature Rating
40 °C
Mpn
EGB14050
Upc
785901130215
Gtin
785901130215
