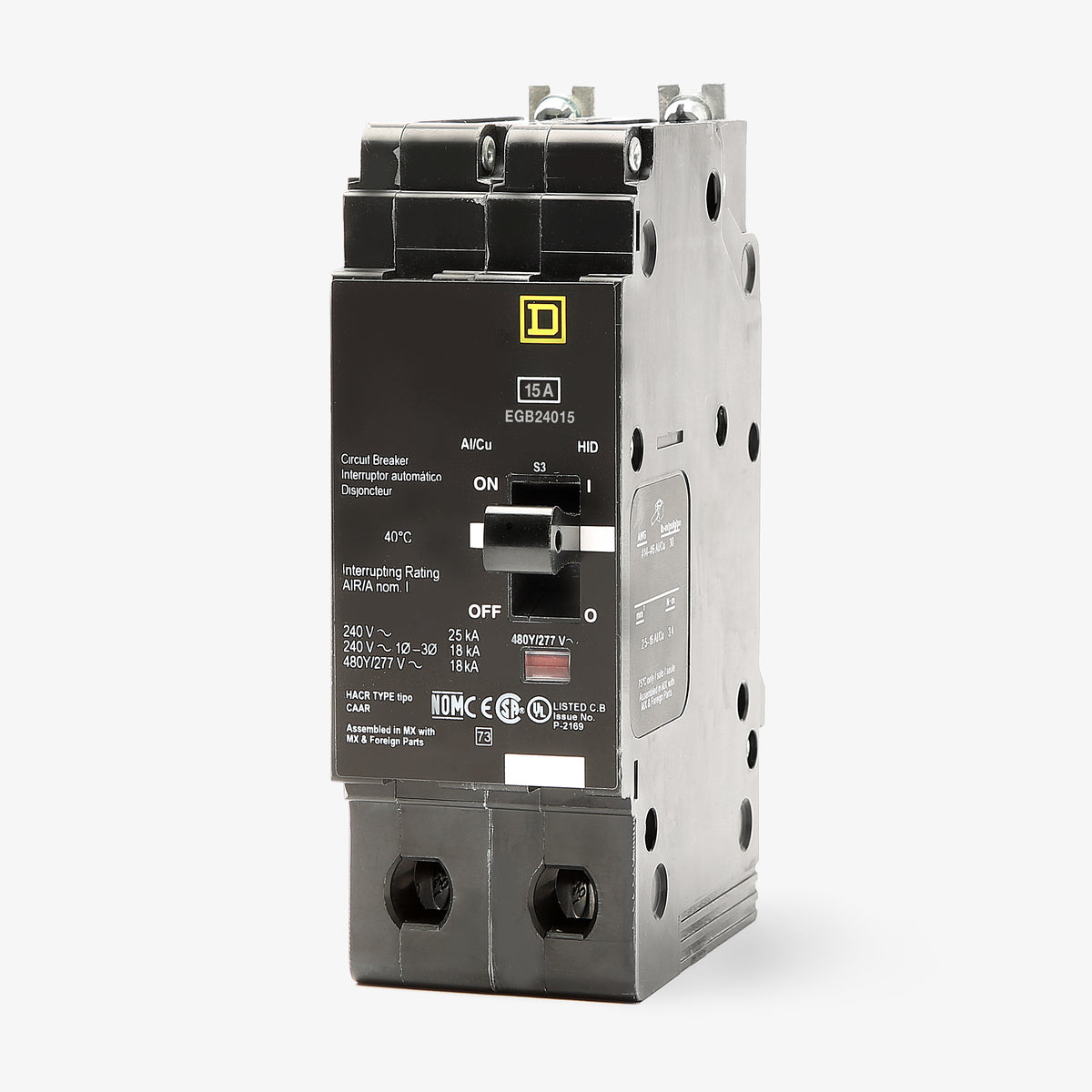

Square D EGB24015 Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Square D
EGB24015
Miniature Circuit Breaker
Brand
Square D
SKU
EGB24015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB24015 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB24015 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB24015 |
| Series | EGB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EGB24015 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB24015-R |
| Series | EGB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
30A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
Description
Designed for heavy-duty commercial environments, this 15A two-pole breaker delivers reliable thermal-magnetic trip functions. It is optimized for 480Y/277V networks. Fastening firmly into Square D NF panelboards, this unit guarantees a stable connection. It serves as an exact functional substitute for discontinued EHB24015 breakers. A 65kAIC rating at 240V ensures excellent fault clearing. The built-in Visi-Trip indicator simplifies troubleshooting by highlighting tripped status.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB24015 |
| Series | EGB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
9 answersWhat panelboards are compatible with the Square D EGB24015?
The EGB24015 is designed exclusively for use in Square D NF series panelboards. It will not fit in NQ, I-Line, or QO load centers.
What does the G in the EGB24015 part number indicate?
The G designates the interrupting rating tier within the Square D E-Frame family. EGB breakers provide a 35kAIC rating at 480Y/277VAC, which is higher than the standard EDB (18kAIC) but lower than the high-interrupting EJB (65kAIC).
Can I replace an EDB24015 with an EGB24015?
Yes. The EGB24015 shares the exact same physical dimensions and mounting footprint as the EDB24015, but offers a higher short-circuit interrupting rating (35kAIC versus 18kAIC at 480Y/277VAC).
What is the recommended lug tightening torque for the EGB24015?

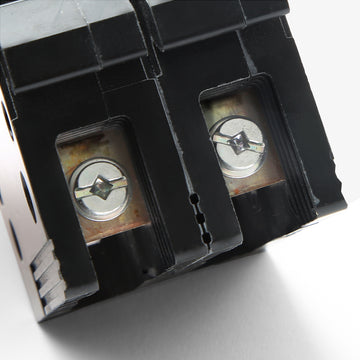

The load lugs on the EGB24015 should be torqued to 30 lbf-in (3.4 N-m) when using 14 to 6 AWG copper or 12 to 6 AWG aluminum wire.
Can the EGB24015 be used on a 120/240VAC system?
Yes. While it is rated for up to 480Y/277VAC, it is fully compatible with 120/240VAC and 240VAC systems, where it provides an increased interrupting rating of 65kAIC.
Does the EGB24015 require a separate mounting kit?

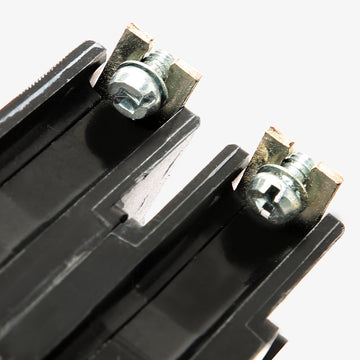

No. As a bolt-on breaker, the EGB24015 mounts directly to the bus of a Square D NF panelboard using the integrated mounting screws. No additional hardware kit is required.
Is the EGB24015 suitable for reverse-feed applications?
Yes. Standard thermal-magnetic E-Frame breakers like the EGB24015 do not have line and load markings, making them suitable for reverse-feed applications such as backfed main breakers, provided they are properly labeled and secured per NEC requirements.
What type of trip unit is installed in the EGB24015?
It features a fixed thermal-magnetic trip unit providing Long-Time (L) and Instantaneous (I) protection. The thermal and magnetic trip points are factory-set and non-adjustable.
Can I use aluminum wire with the EGB24015?
Yes, the factory-installed lugs are AL/CU rated. They accept 12 to 6 AWG aluminum wire or 14 to 6 AWG copper wire.
