Square D EGB36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Square D
EGB36060
Molded Case Circuit Breaker
Brand
Square D
SKU
EGB36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

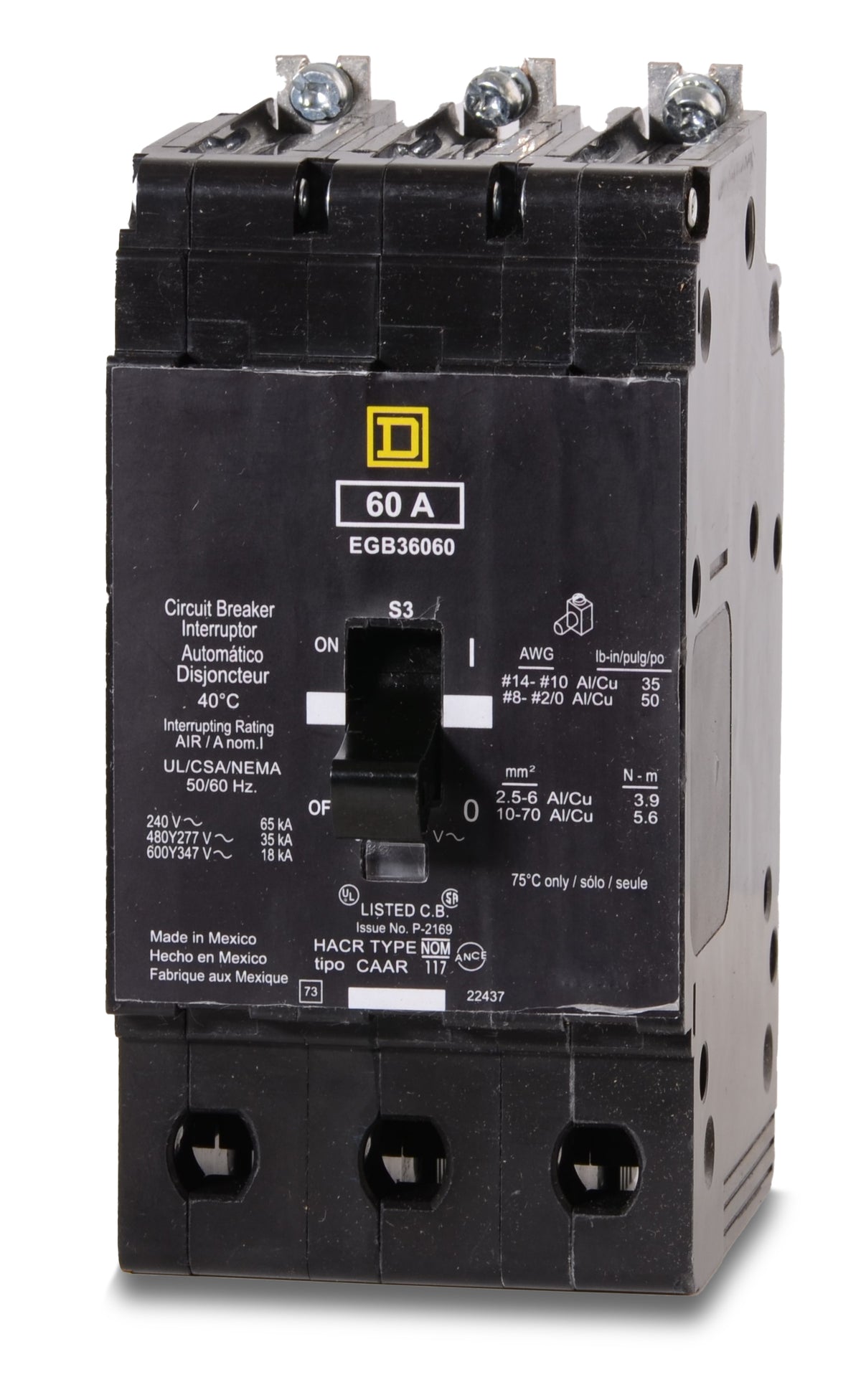

Square D EGB36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the EGB36060 is a 60A, 3-pole molded case circuit breaker. It provides dependable long-time and instantaneous trip functions for distribution networks. The breaker installs into Square D NF panelboards with a bolt-on mounting configuration for a stable connection. It accommodates 14-2/0 AWG copper or aluminum conductors. With an interrupting capacity of 65 kAIC at 240V, it handles demanding fault currents.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB36060 |
| Series | EGB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 18kA @ 600Y/347VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the Square D EGB36060?
The EGB36060 is an E-Frame bolt-on circuit breaker designed specifically for use in Square D NF series panelboards.
Can I install the EGB36060 in a Square D NQ or QO panelboard?
No. E-Frame breakers are exclusively designed for Square D NF panelboards. NQ panelboards require QO or QOB series breakers.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
These are all E-Frame bolt-on breakers designed for NF panelboards, but they feature different interrupting ratings. At 480Y/277VAC, the EDB is rated for 18kAIC, the EGB is rated for 35kAIC, and the EJB is rated for 65kAIC.
What is the recommended lug torque for the EGB36060?
The tightening torque depends on the wire size. Torque to 3.9 N.m for 14 to 10 AWG copper or 12 to 10 AWG aluminum wire, and 5.6 N.m for 8 to 2/0 AWG wire.
Can the EGB36060 circuit breaker be reverse fed?
Yes, Square D E-Frame breakers like the EGB36060 can be reverse fed (back-fed). When used as a back-fed main breaker, a hold-down kit may be required by the National Electrical Code.
Is the EGB36060 rated for 100 percent continuous duty?
No, this is a standard 80 percent rated circuit breaker. Continuous loads should not exceed 48 amps (80 percent of its 60A rating) for three hours or more.
Does the EGB36060 include ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker providing overload and short-circuit protection. It does not include GFCI or AFCI protection.
