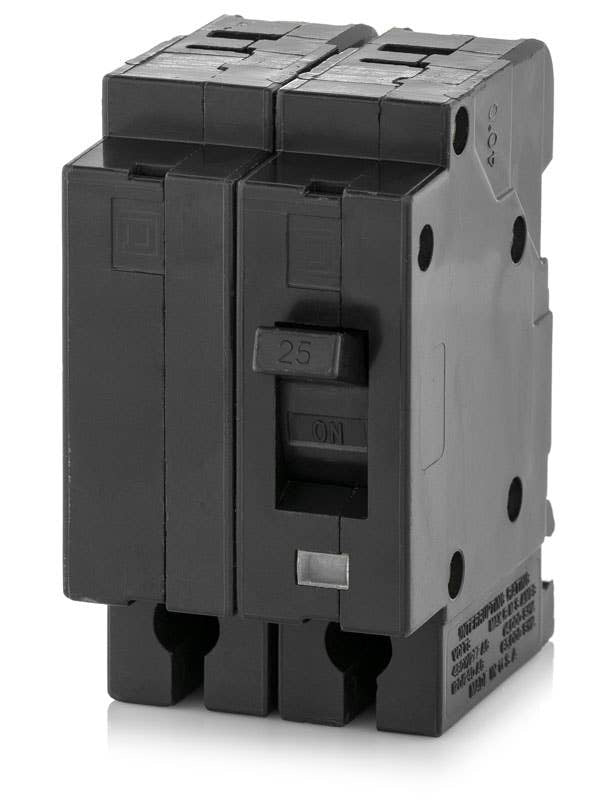

Square D EH24025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Square D
EH24025
Molded Case Circuit Breaker
Brand
Square D
SKU
EH24025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EH24025 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial systems, the Square D EH24025 is a 2-pole, 25A molded case circuit breaker. It utilizes a thermal-magnetic trip mechanism to handle faults on 480Y/277VAC circuits. Designed with a plug-on connection, this breaker fits Square D NEHB panelboards. Users can also utilize the EHB24025 bolt-on breaker as a substitute within these enclosures. The unit delivers a 14kAIC rating at 480Y/277V. It features a Visi-Trip indicator for fast identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EH24025 |
| Series | EH |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the EH24025 circuit breaker?
This plug-on breaker is specifically designed for use in legacy Square D NEHB panelboards. It will not fit in standard NQ, NQOD, or I-Line panels.
Can the EH24025 be used on a 480V ungrounded delta system?
No. The 480Y/277VAC slash voltage rating indicates this breaker is only suitable for solidly grounded wye systems where the voltage to ground does not exceed 277V. It cannot be used on ungrounded or corner-grounded delta systems.
What type of conductors are permitted for the EH24025 terminals?
The factory lugs accept both copper and aluminum wire. Ensure you use the correct gauge based on the material, which is 14 to 8 AWG for copper and 12 to 8 AWG for aluminum.
Is the Square D EH series still in active production?
The EH frame and the associated NEHB panelboards are legacy products and are no longer manufactured by Schneider Electric. They are primarily sourced to maintain and service existing electrical infrastructure.
Does this breaker provide GFCI or AFCI protection?
No. The EH24025 is a standard thermal-magnetic circuit breaker providing only long-time overload and instantaneous short-circuit protection. It does not include ground fault or arc fault circuitry.
