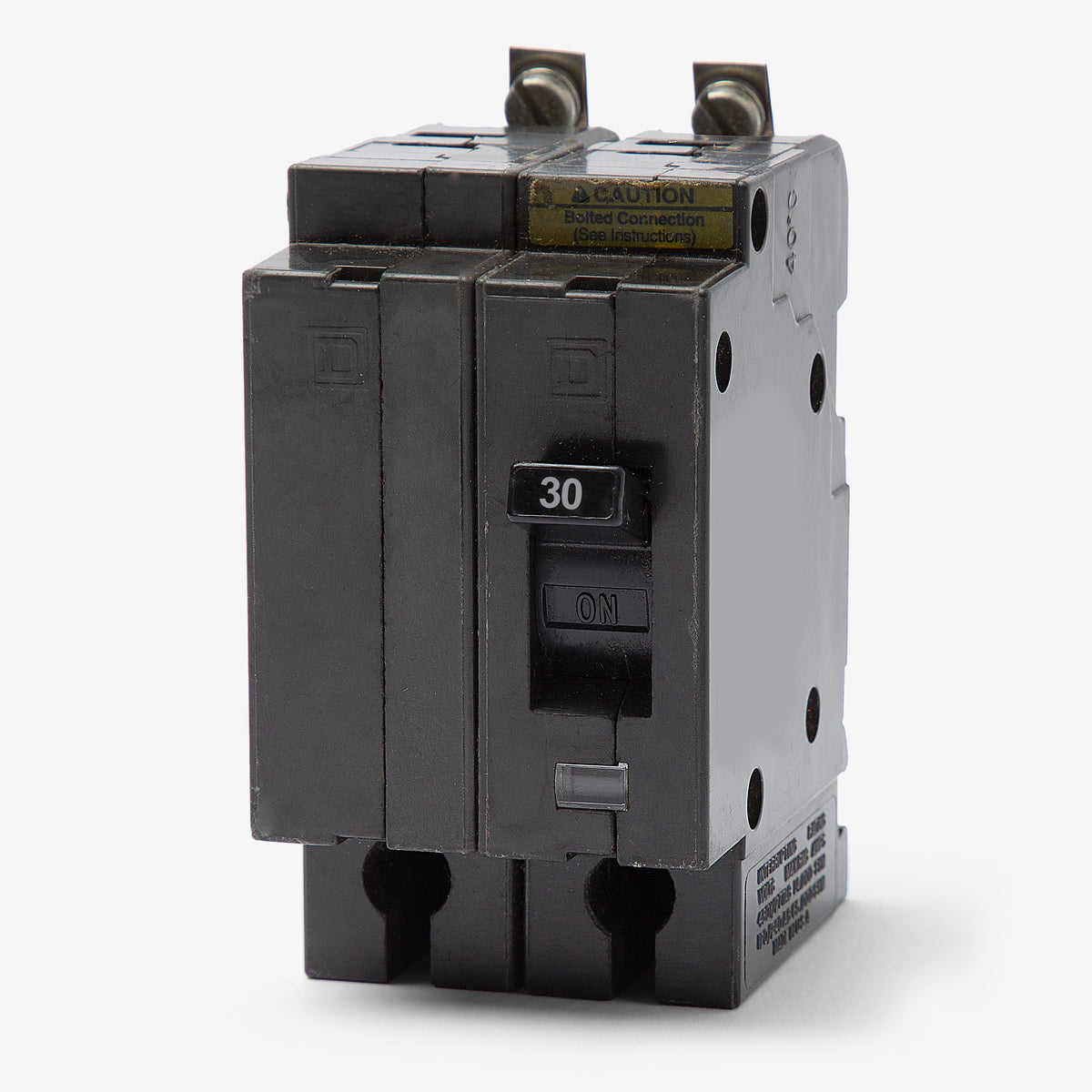

Square D EHB24030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Square D
EHB24030
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB24030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24030 |
| Series | EHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Square D EHB24030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24030-R |
| Series | EHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D EHB24030 is a 2-pole, 30A molded case circuit breaker. It provides reliable thermal-magnetic protection for branch circuits with a trip-free mechanism. This bolt-on MCCB installs into legacy Square D NEHB panelboards. Because the NEHB series is obsolete, this unit serves as an exact-fit replacement. Modern EDB breakers are not backwards compatible with NEHB panels. It features a 14kAIC rating at 480Y/277V and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24030-R |
| Series | EHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards are compatible with the EHB24030 circuit breaker?
The EHB24030 is engineered specifically for legacy Square D NEHB series panelboards. It features a bolt-on connection designed for the bussing in NEHB interiors and will not fit other panel types.
Can I substitute a newer EDB series breaker for the EHB24030?
No. Modern EDB series circuit breakers are not backwards compatible with legacy NEHB panelboards. You must use an EHB series breaker for an exact-fit replacement in an NEHB interior.
Is the Square D EHB24030 an active or legacy product?
The EHB series is obsolete. This unit serves as a direct replacement for maintaining or expanding existing electrical systems that currently rely on legacy NEHB panelboards.
Does this 2-pole breaker require a specific mounting position in the panel?
No. NEHB panelboards utilize distributed phase bussing, which allows this bolt-on branch circuit breaker to be mounted in any available position. Ensure the panelboard is de-energized prior to installation.
Can the EHB24030 be applied on a 120/240V AC system instead of 480Y/277V AC?
Yes. While frequently installed in 480Y/277V AC systems with a 14kAIC rating, it is also fully rated for use on 120/240V AC systems where it provides a higher 65kAIC interrupting rating.
Does this breaker feature adjustable trip settings?
No. The EHB24030 utilizes a fixed thermal-magnetic trip unit. The Long-Time and Instantaneous (LI) trip functions are factory set for a 30 Amp load and cannot be field adjusted.
