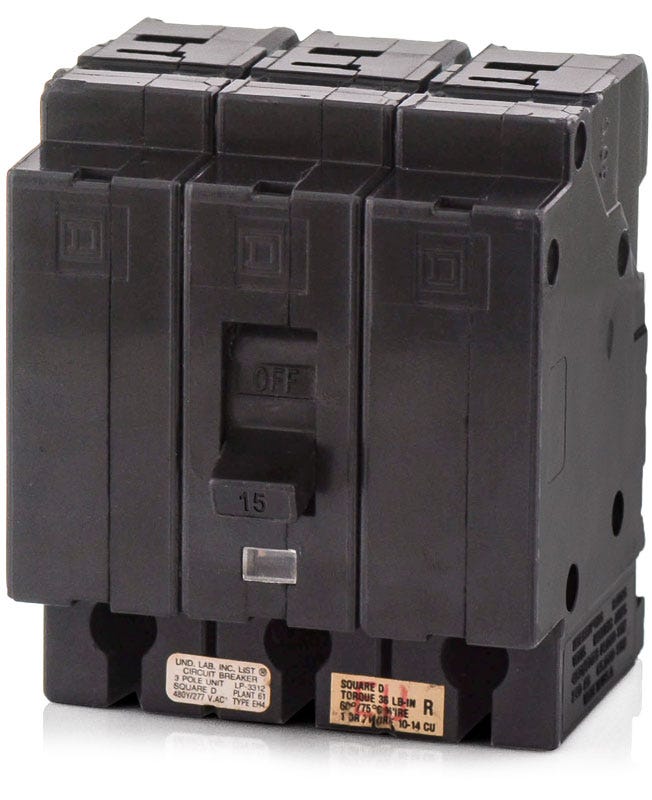

Square D EH34015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Square D
EH34015
Molded Case Circuit Breaker
Brand
Square D
SKU
EH34015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EH34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EH34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | E |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EH34015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | E |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed for 3-phase systems, the Square D EH34015 is a 15-amp molded case circuit breaker offering robust thermal-magnetic protection. This plug-on unit mounts securely into legacy NEHB panelboards, making it an essential component for maintaining older commercial and industrial electrical setups. It delivers a 14kA interrupting capacity at 480Y/277V and features the signature Visi-Trip indicator, allowing facility managers to quickly identify tripped circuits during an outage.Specifications
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | E |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
4 answersWhich panelboards accept the Square D EH34015 circuit breaker?
The EH34015 is engineered specifically for legacy Square D NEHB panelboards. It utilizes a plug-on mounting configuration that matches the bus structure of these older commercial panels.
What is the difference between the EH34015 and the EHB34015?
Both breakers share the same 15A, 3-pole electrical specifications and fit NEHB panelboards. The difference is the mounting style. The EH34015 is a plug-on breaker, while the EHB34015 is the bolt-on equivalent.
Can I replace the EH34015 with a modern EDB series breaker?
No. Modern EDB, EGB, and EJB circuit breakers are designed for current Square D NF panelboards and will not physically fit into legacy NEHB panelboards. You must use an EH or EHB series breaker to maintain compatibility with an existing NEHB panel.
How does the EH34015 indicate a tripped condition?
This breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red indicator appears, allowing electricians to quickly identify the faulted circuit in a crowded panelboard.
