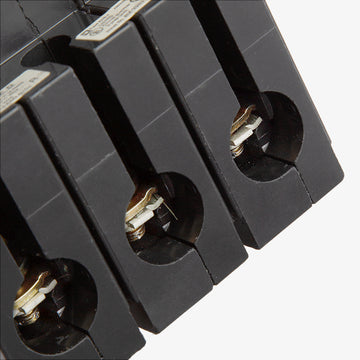

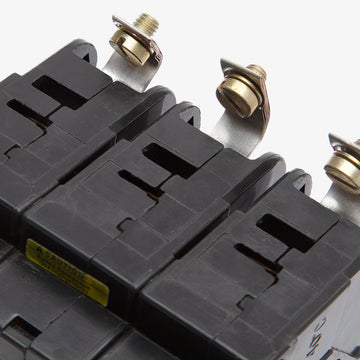

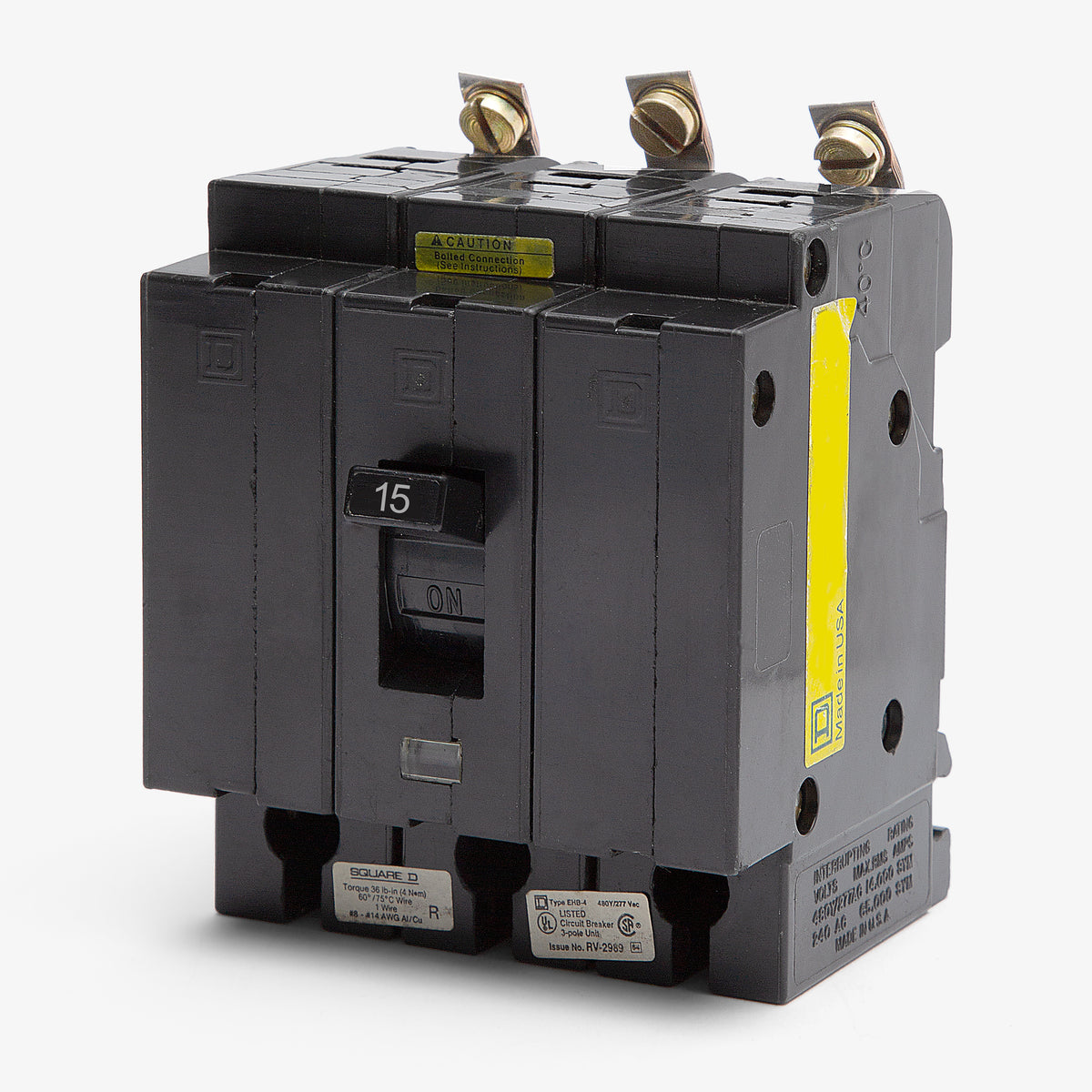

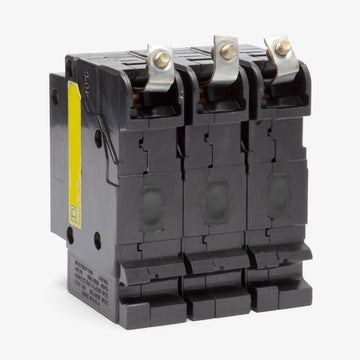

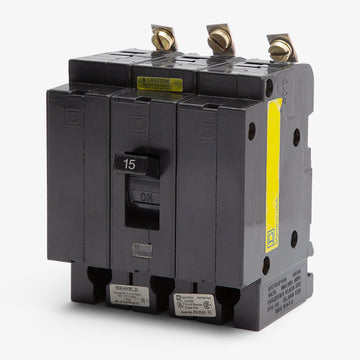

Square D EHB34015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
EHB34015
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB34015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Quantity
Square D EHB34015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial applications, the Square D EHB34015 is a three-pole molded case circuit breaker. Utilizing proven thermal-magnetic trip technology, it delivers consistent protection to keep three-phase systems running safely. Designed with a bolt-on mounting style, this breaker integrates perfectly into Square D NEHB panelboards. Facilities upgrading should note its modern replacement, the EDB34015, requires an NF series panelboard.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards accept the EHB34015 circuit breaker?
The EHB34015 is a bolt-on branch breaker designed exclusively for legacy Square D NEHB lighting and appliance panelboards. It connects directly to the NEHB bus structure and will not fit other manufacturer or modern Square D panels.
Is the Square D EHB series still in production?
No. Square D discontinued the NEHB panelboard and its associated EHB circuit breaker line in the 1990s. Sourcing this specific model allows facilities to maintain and safely operate their existing NEHB equipment without needing a complete electrical distribution upgrade.
Can I use an EDB or EGB breaker as a modern replacement for the EHB34015?
No. While the EDB, EGB, and EJB series are modern Square D E-frame circuit breakers, they are built specifically for NF series panelboards. Their mounting footprint and phase spacing will not align with an older NEHB panelboard bus.
Is the EHB34015 safe to use on a 480V ungrounded delta system?
No. Because this breaker carries a 480Y/277VAC slash voltage rating, National Electrical Code (NEC) rules restrict its use to 3-phase, 4-wire solidly grounded wye systems. The line-to-ground voltage cannot exceed 277V. Installing a slash-rated breaker on an ungrounded or corner-grounded delta system poses a severe fault-clearing hazard.
What type of protection does the LI trip function provide on this breaker?
The LI designation indicates a thermal-magnetic trip unit with Long-Time and Instantaneous protection. The breaker utilizes a fixed bimetallic thermal element to delay tripping for continuous, low-level overloads, while a fixed magnetic armature trips instantaneously to clear severe short circuits safely.
