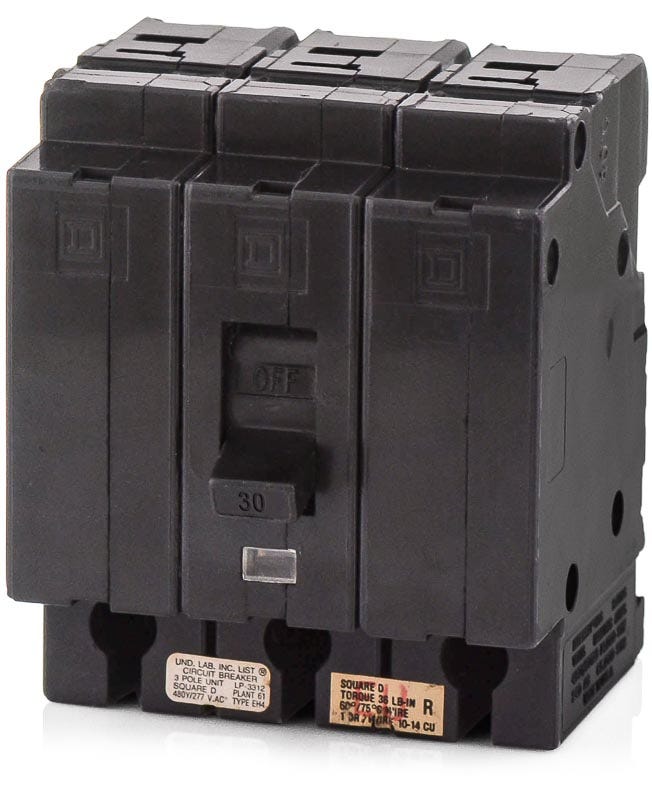

Square D EH34030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Plug-On
Square D
EH34030
Molded Case Circuit Breaker
Brand
Square D
SKU
EH34030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EH34030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EH34030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EH34030 |
| Series | EH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EH34030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EH34030 |
| Series | EH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial facilities, the Square D EH34030 is a 3-pole, 30A molded case circuit breaker. It utilizes fixed thermal and magnetic trip elements to deliver dependable LI protection for branch circuits. This plug-on breaker is manufactured to fit legacy Square D NEHB panelboards. For upgrades, the EHB34030 is listed as a potential substitute. Delivering a 65kAIC interrupt rating at 240VAC, it ensures robust fault clearing. The breaker features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EH34030 |
| Series | EH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards accept the EH34030 circuit breaker?
The EH34030 is engineered specifically for plug-on installation in legacy Square D NEHB panelboards. It cannot be installed in modern NF series panels or standard QO and Homeline load centers.
Is there a bolt-on alternative to this breaker?
Yes. The EH34030 features a plug-on mounting design. If your NEHB panel setup requires a mechanical bolt-on connection, you will need to cross-reference to the EHB34030.
Can I substitute a newer EDB series breaker for the EH34030?
No. Although the EDB series is the modern successor to the EH and EHB lines, EDB breakers are built exclusively for NF panelboards and are physically incompatible with older NEHB enclosures.
Does this breaker feature a visual trip indicator?
Yes, EH series circuit breakers feature Square D's Visi-Trip indicator. This displays a highly visible red flag when the breaker trips, helping maintenance personnel quickly locate faults in the panel.
Is the EH34030 approved for HVAC equipment?
Yes, this breaker carries an HACR rating, making it suitable and approved for use with heating, air conditioning, and refrigeration systems that require this classification.
