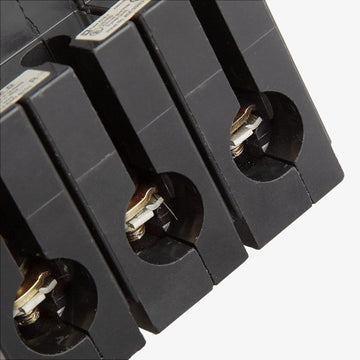

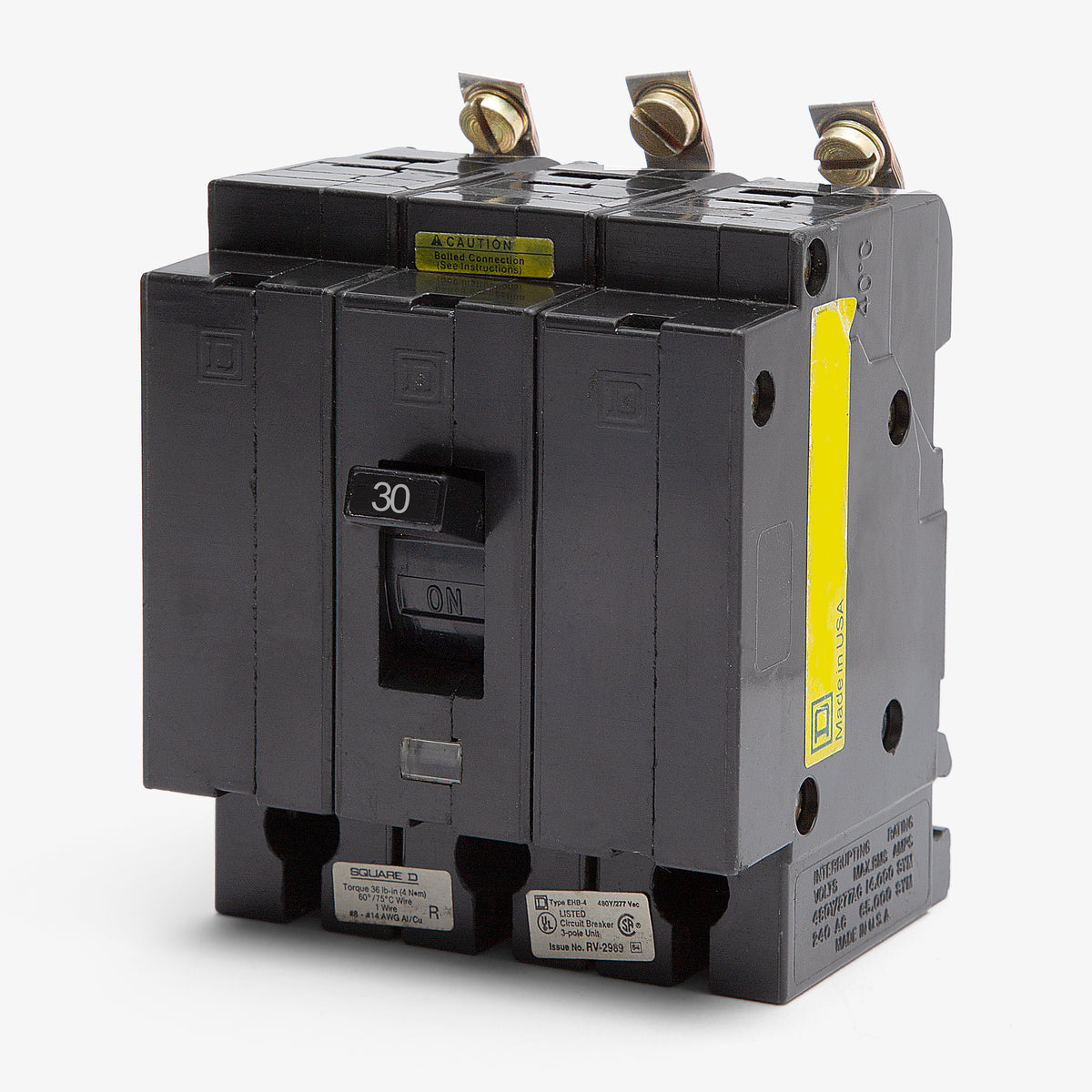

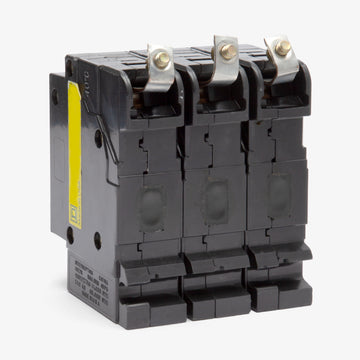

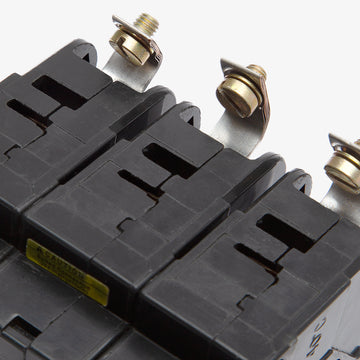

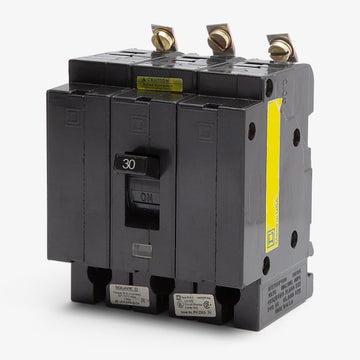

Square D EHB34030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
EHB34030
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB34030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34030 |
| Series | EHB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB34030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Designed to fit Square D NEHB panelboards, this 30A molded case circuit breaker provides essential commercial and industrial power distribution. It serves as an exact match for existing E-frame installations requiring bolt-on connections. While the EHB series is discontinued and replaced by the EDB34030, the newer EDB model requires an NF panelboard for installation. This original unit maintains a 14kAIC rating at 480Y/277VAC and includes Visi-Trip technology for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersCan I install this EHB breaker in a standard Square D NF panelboard?
No. EHB circuit breakers are exclusively designed for legacy NEHB panelboards. Modern NF panelboards require EDB, EGB, or EJB frame circuit breakers.
Can I use a modern EDB34030 to replace the EHB34030?
No. While they share similar 30A electrical ratings and thermal magnetic trip curves, the EDB series has a different physical footprint meant for NF panelboards. It will not physically fit or connect to an older NEHB panelboard.
What is the difference between Square D EH and EHB circuit breakers?
The primary difference is the mounting style. EH circuit breakers feature a plug-on connection, while EHB circuit breakers like the EHB34030 feature a bolt-on connection. Both types fit legacy NEHB panelboards, as the panel busbar includes both plug-on connectors and tapped mounting holes.
How is the EHB34030 mechanically secured into the panelboard?
The EHB series utilizes a bolt-on connection. The breaker physically bolts directly to the tapped mounting holes on the branch bus connectors within the NEHB panelboard, ensuring a rigid electrical and mechanical connection under high fault conditions.
Does the EHB34030 feature the Square D Visi-Trip indicator?
Yes. The EHB series includes a Visi-Trip visual indicator flag. When the breaker trips due to an overcurrent or short circuit, the handle moves to a center position and the highly visible flag appears to help maintenance personnel quickly locate the tripped circuit.
Can I terminate aluminum conductors on the standard lugs of the EHB34030?
Yes, the factory installed lugs are dual-rated for both copper (Cu) and aluminum (Al) conductors. Ensure your wire is sized correctly within the accepted 14 AWG to 10 AWG range and properly torqued before terminating.
