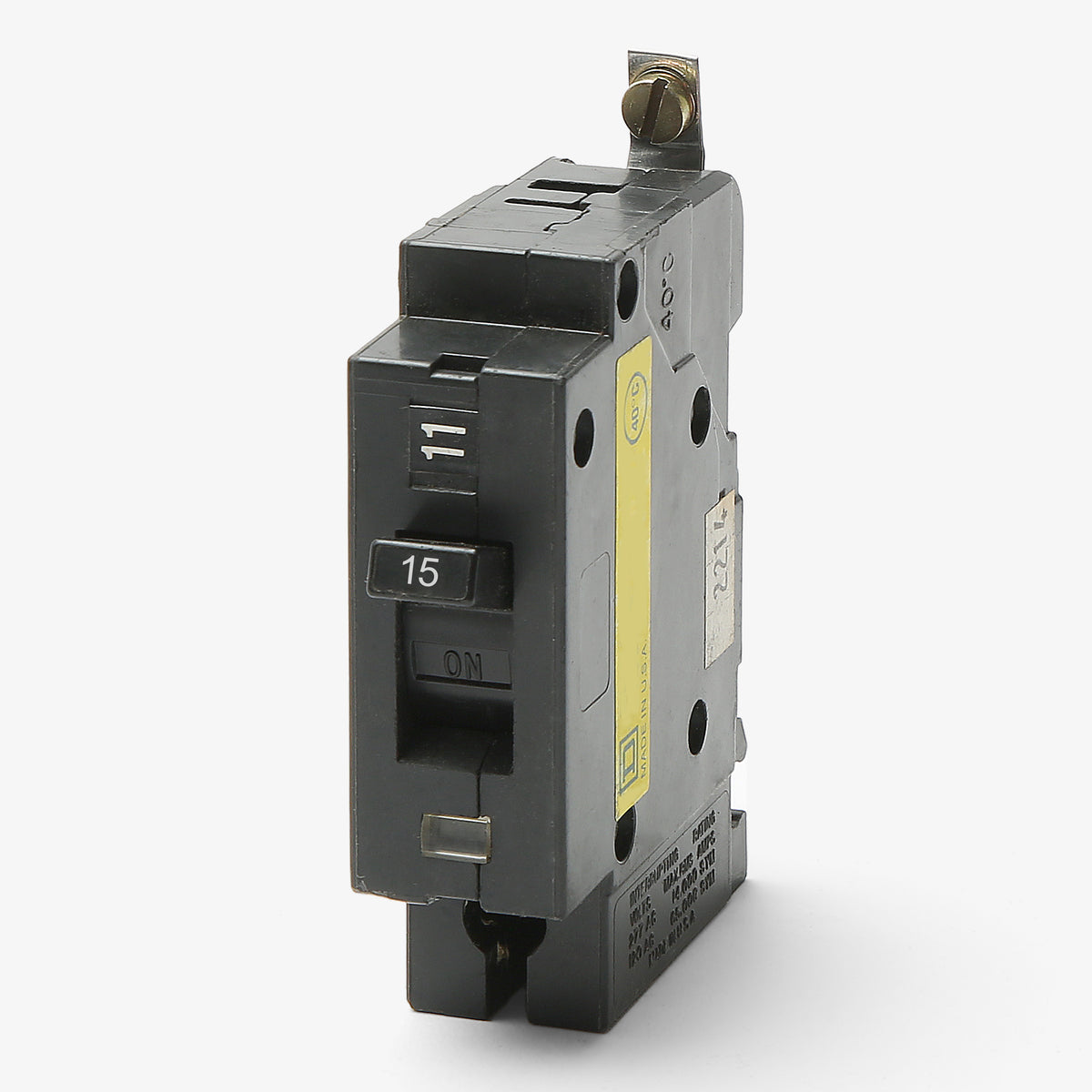

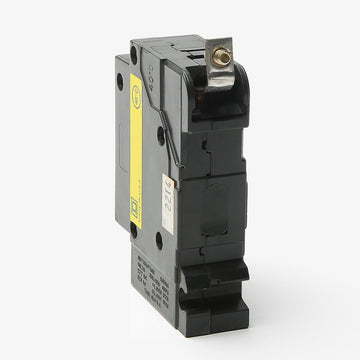

Square D EHB14015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
EHB14015
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB14015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB14015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14015 |
| Series | EHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Quantity
Square D EHB14015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
Description
Ideal for commercial applications, the Square D EHB14015 is a 1-pole, 15A molded case circuit breaker. It utilizes fixed thermal-magnetic trip technology to protect critical branch circuits. This unit features a bolt-on mounting style for secure installation into Square D NEHB panelboards. For newer NF panelboard upgrades, this breaker is replaced by the EDB14015. With a 14 kAIC rating at 277VAC, it includes a Visi-Trip indicator and is SWD rated for switching fluorescent lighting loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14015 |
| Series | EHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
6 answersAre EHB breakers like the EHB14015 interchangeable with modern EDB breakers?
No. While both are manufactured by Square D, the EHB series is specifically designed for legacy NEHB panelboards. Modern EDB breakers are built for NF panelboards and have different mounting footprints, making them incompatible with NEHB busbars.
My panelboard is labeled NEHB, but the replacement breaker is EHB. Is this the correct component?
Yes. NEHB designates the overall legacy panelboard family, while EHB represents the specific molded case circuit breaker series designed to bolt onto the NEHB interior bus structure.
How do the dual AIC ratings apply to this specific breaker?
The interrupting capacity scales depending on the system voltage. This breaker can safely clear up to 65,000 amps of fault current on a standard 120VAC circuit, but only up to 14,000 amps on a 277VAC circuit. Always verify the available fault current at your specific installation point.
How does the fixed thermal-magnetic trip mechanism operate?
The thermal component responds to prolonged overloads by heating a bimetallic strip to open the contacts. The magnetic element reacts immediately to high-level short circuits, providing instantaneous fault clearing. The LI (Long-Time, Instantaneous) trip curves are factory fixed and cannot be adjusted.

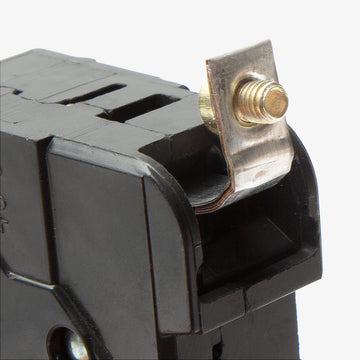

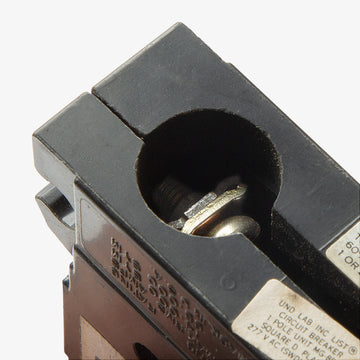

Can I terminate aluminum wire directly onto the EHB14015 lugs?
Yes, the integrated terminal lugs are rated for both copper and aluminum conductors. Note that the minimum conductor size differs by material. The lugs accept a minimum of 12 AWG for aluminum wire compared to 14 AWG for copper wire.
Is the 277VAC rating suitable for commercial lighting branch circuits?
Yes. The 277VAC maximum voltage rating makes this 15 amp breaker highly suitable for commercial 277 volt fluorescent or LED lighting circuits, provided continuous load limits are maintained according to standard electrical codes.
