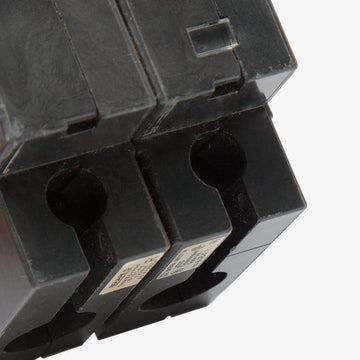

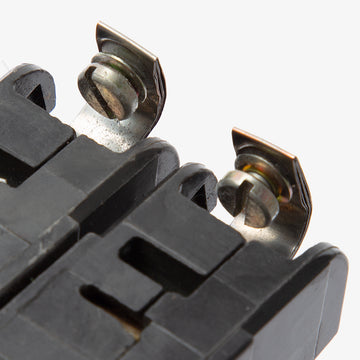

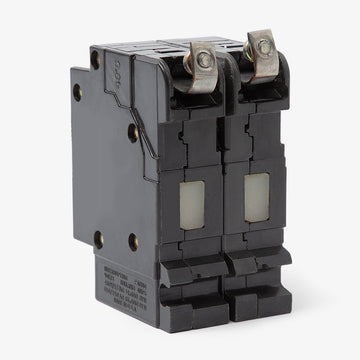

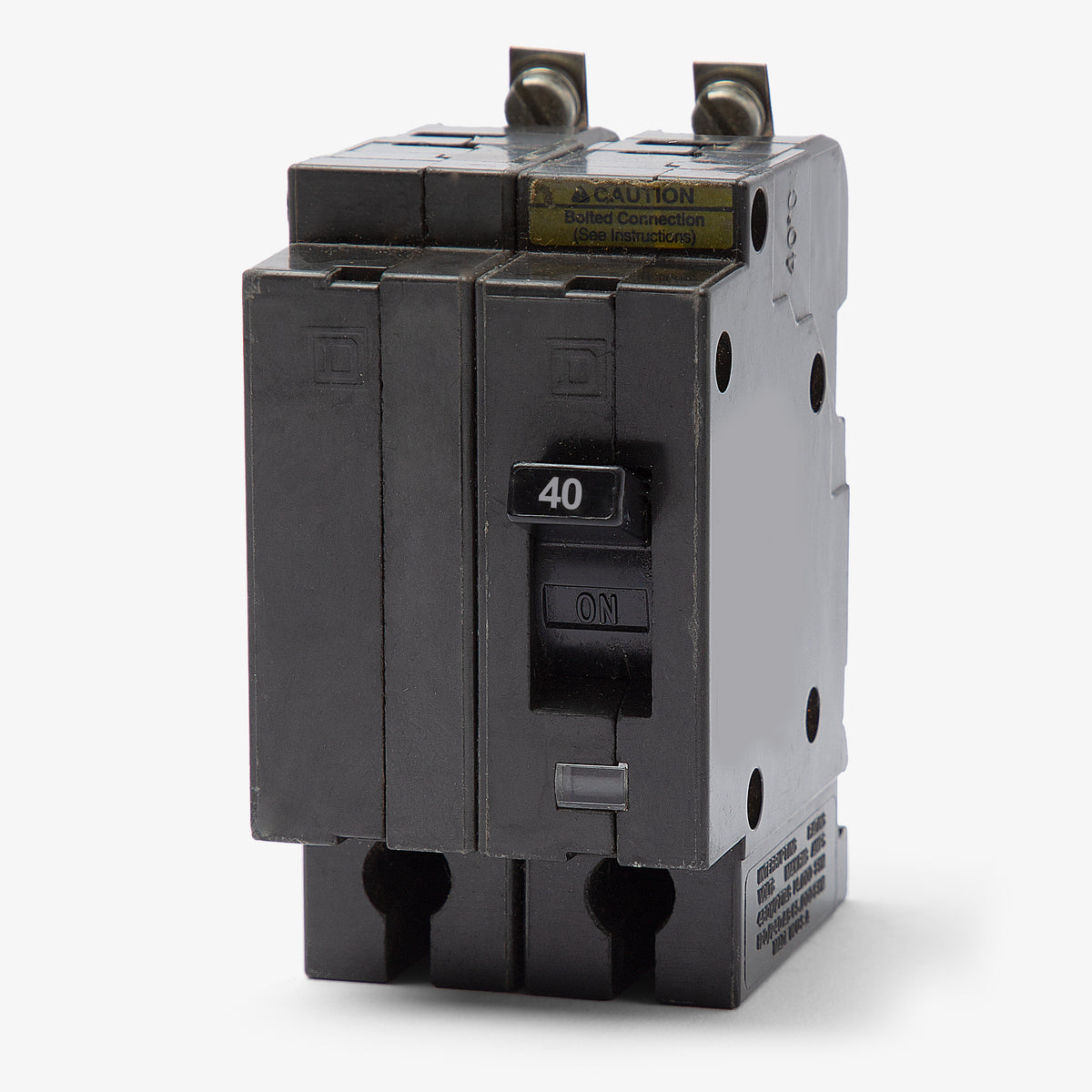

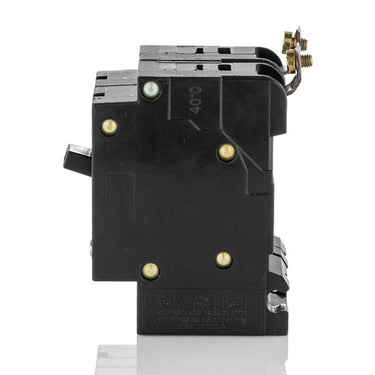

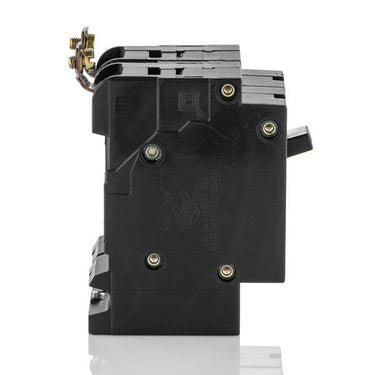

Square D EHB24040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Square D
EHB24040
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB24040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24040 |
| Series | EHB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB24040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Engineered for robust power distribution, the Square D EHB24040 is a 40A, 2-pole molded case circuit breaker. It utilizes thermal-magnetic trip technology to deliver dependable circuit protection. This bolt-on breaker is engineered to fit legacy Square D NEHB panelboards. For system upgrades, the EHB series is replaced by the EDB24040, which requires an NF panelboard. With a 14kAIC rating at 480Y/277VAC, this HACR-rated breaker features a Visi-Trip indicator for easy troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the EHB24040?
The EHB24040 is a bolt-on circuit breaker designed specifically for legacy Square D NEHB panelboards. It is not compatible with modern NF or NQ series panels.
Is the Square D EHB24040 obsolete?
Yes, the EHB series and the NEHB panelboards they mount into are obsolete. The modern equivalent is the EDB series, but EDB breakers require a complete NF panelboard swap and will not fit into an NEHB panel.
Can the EHB24040 be used on a 120/240V system?
Yes. While it is commonly used on 277/480VAC systems with a 14kAIC rating, it also carries a higher 65kAIC interrupting rating for use on 120/240VAC systems.
How does the EHB24040 mount into the panelboard?
It features a bolt-on connection, requiring it to be physically bolted to the busbar of the NEHB panelboard. Ensure the panel is completely de-energized before attempting to install or remove bolt-on breakers.
What type of trip protection does the EHB24040 provide?
It utilizes fixed thermal-magnetic trip technology, providing both long-time (L) protection against sustained overloads and instantaneous (I) protection against short circuits.
