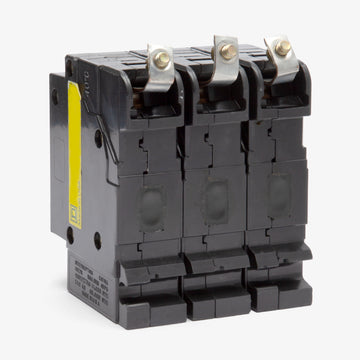

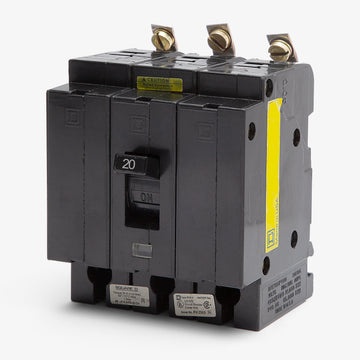

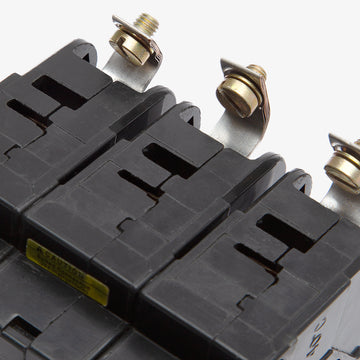

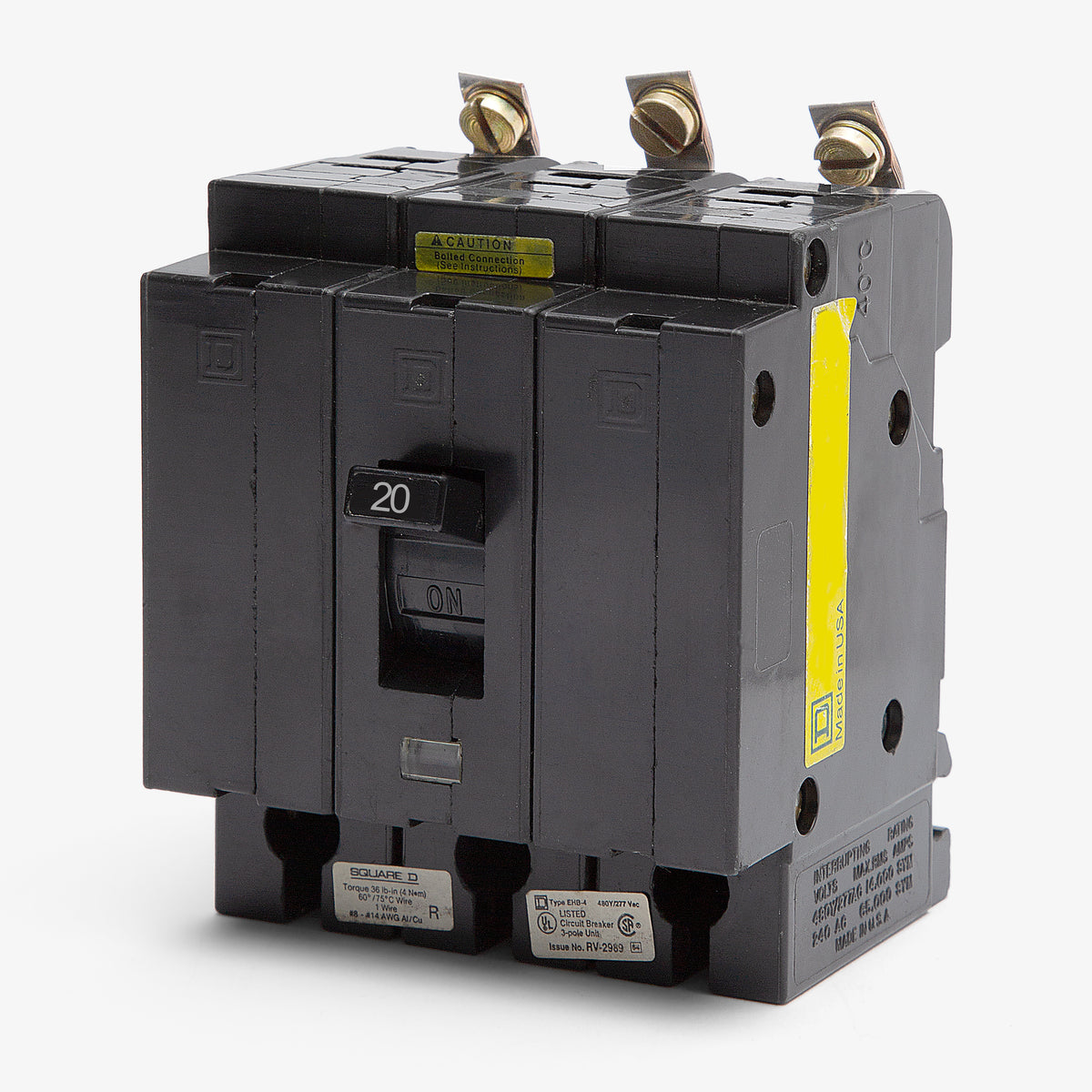

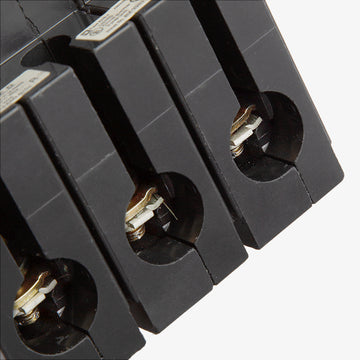

Square D EHB34020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Square D
EHB34020
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB34020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34020-R |
| Series | EHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB34020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34020-R |
| Series | EHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Designed to support 20A commercial loads, this three-pole thermal-magnetic breaker ensures reliable circuit protection across demanding environments. It fastens securely into legacy Square D NEHB panelboards, providing an essential maintenance component for existing electrical systems. Since the modern EDB34020 substitute requires a completely different NF panelboard, utilizing this specific E-Frame unit saves significant time and labor. Rated for 14kAIC at 480Y/277V with HACR certification.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34020-R |
| Series | EHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersCan I install the EHB34020 in a modern Square D NF panelboard?
No, the EHB series is exclusively designed to mount into legacy Square D NEHB panelboards. Modern NF panelboards require EDB, EGB, or EJB series circuit breakers.
Is the Square D EHB34020 still actively manufactured?
No, the EHB breaker line and its compatible NEHB panelboards have been discontinued and are considered obsolete by Schneider Electric. To upgrade to current-production components, a complete panel replacement to an NF series board is required.
Will a newer EDB circuit breaker fit in place of my old EHB34020?
No, EDB circuit breakers cannot be used as direct drop-in replacements for EHB models. They have different physical dimensions and mounting requirements. You must use an EHB series breaker to maintain an existing NEHB panel.
How does this breaker secure to the panelboard busbar?
It utilizes a standard bolt-on mounting configuration. Rather than snapping onto the bus like residential load center breakers, the EHB34020 fastens directly to the NEHB panelboard chassis with screws, providing a highly secure mechanical and electrical connection for commercial and industrial environments.
How do I know if the EHB34020 has tripped during a fault?
The breaker is equipped with a visual trip indicator. When a fault occurs, the operating handle moves to a center position between ON and OFF, and a high-visibility indicator is exposed to help you quickly identify the tripped circuit in a crowded panel.
How does the thermal-magnetic trip mechanism protect the circuit?
The EHB34020 features fixed Long-Time and Instantaneous (LI) trip functions. The thermal element gradually heats up and trips the breaker during sustained overloads, while the magnetic element responds immediately to clear dangerous short circuits.
Can this breaker be used for HVAC equipment?
Yes, EHB series molded case circuit breakers carry a HACR rating. This means they are safety-tested and approved to handle the specific inrush currents and continuous load demands of commercial heating, air conditioning, and refrigeration equipment.
