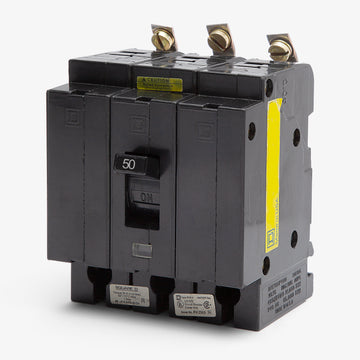

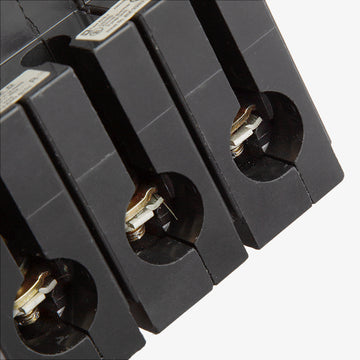

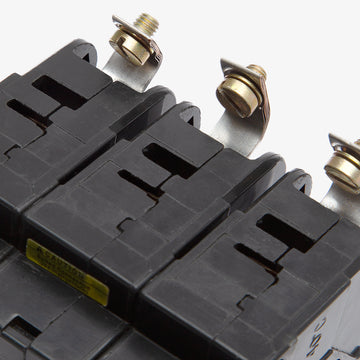

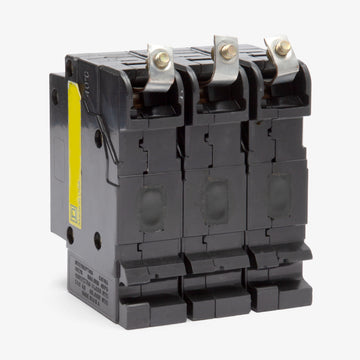

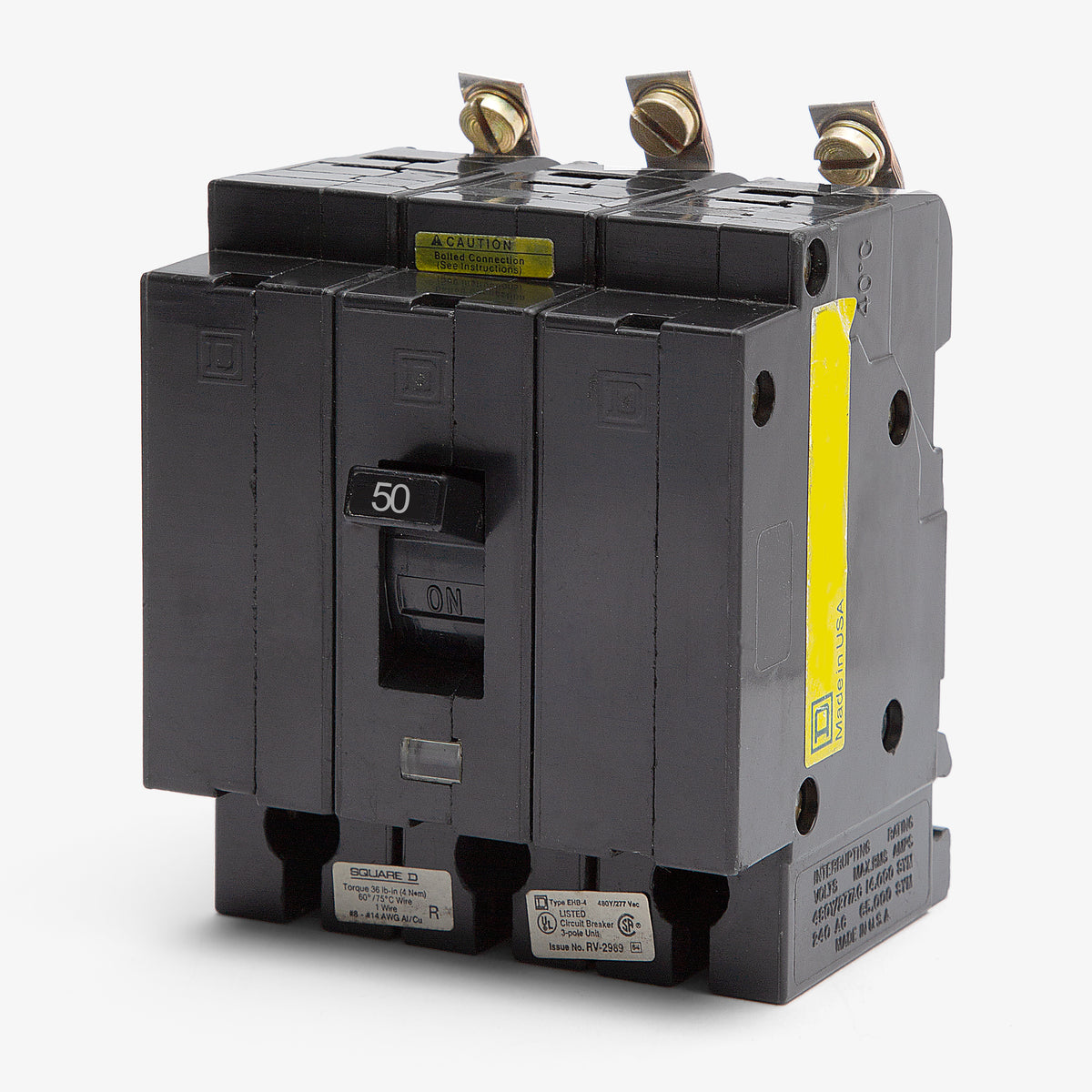

Square D EHB34050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Square D
EHB34050
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB34050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34050-R |
| Series | EHB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 12-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB34050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34050-R |
| Series | EHB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 12-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of the discontinued E-Frame series, this 50A three-pole breaker provides essential overcurrent protection for commercial and industrial electrical systems. It mounts into Square D NEHB panelboards using a secure bolt-on connection. While the EDB34050 is the modern substitute, that newer model requires an NF panelboard upgrade. This original unit maintains 65kAIC at 240V and 14kAIC at 480Y/277V, featuring a Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34050-R |
| Series | EHB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 12-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
4 answersCan I replace my EHB34050 with a newer EDB34050 circuit breaker?
No. While the EDB34050 is the modern 50A equivalent, EDB breakers are designed exclusively for newer NF panelboards. They will not physically fit into a legacy NEHB panelboard, which requires an EHB-series breaker.
Is the EHB34050 approved for use on an ungrounded 480V Delta system?
No. This breaker is slash-rated for 480Y/277VAC, which restricts its application to solidly grounded Wye systems where the line-to-ground voltage does not exceed 277V. It cannot be safely used on ungrounded or corner-grounded Delta systems.
How much mounting space does the EHB34050 require?
This E-frame circuit breaker requires 3 inches of horizontal panel space. Each of the three poles occupies exactly 1 inch of width.
How do I reset the EHB34050 after a trip?
When a fault occurs, the handle moves to a center position and a VISI-TRIP indicator appears in the breaker window. To restore power, firmly push the handle to the extreme OFF position to reset the internal mechanism, then push it back to the ON position.
