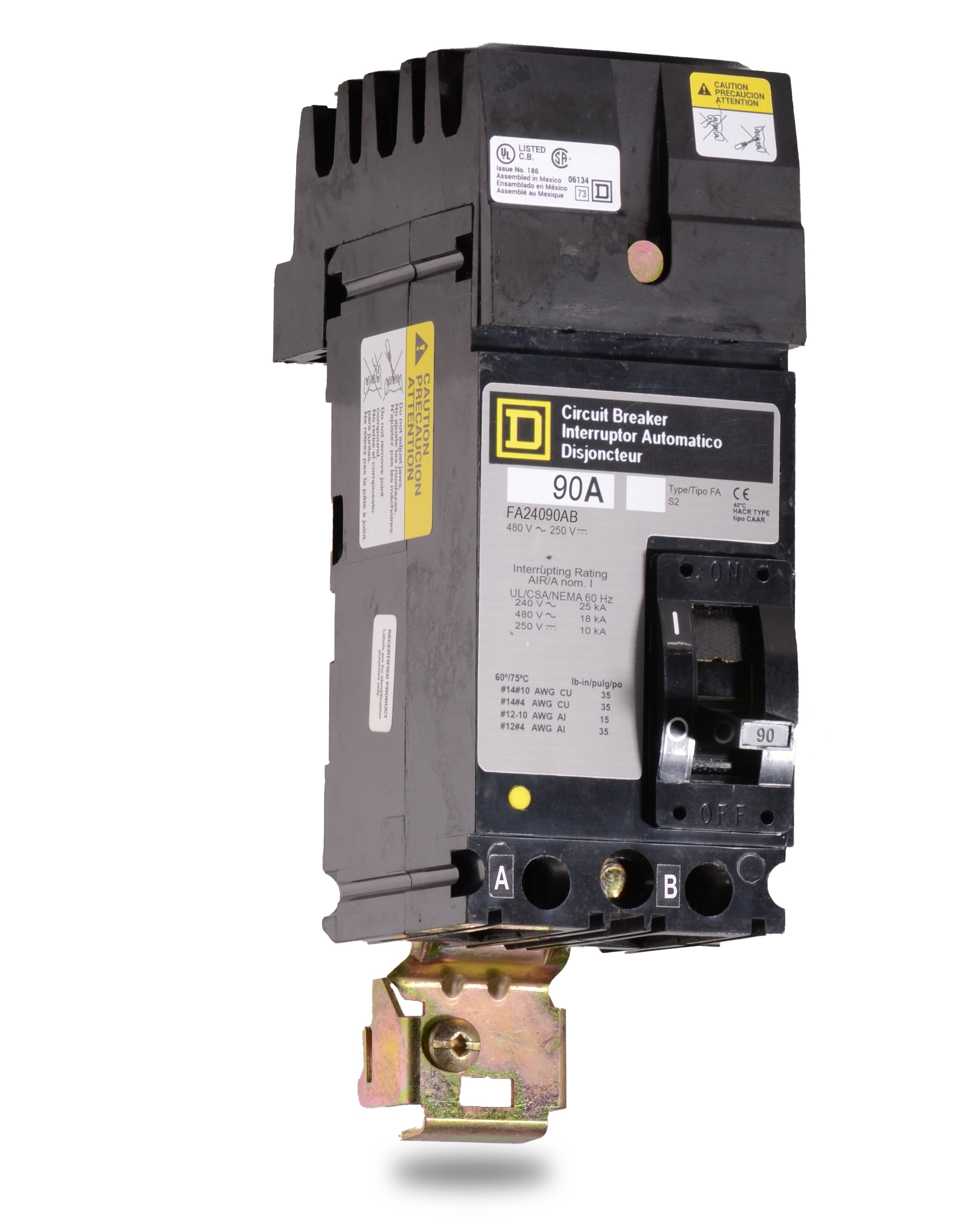

Square D FA24090AB Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
FA24090AB
Molded Case Circuit Breaker
Brand
Square D
SKU
FA24090AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA24090AB - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA24090AB - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24090AB |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase A-B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, Federal Specification W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Sold out
Quantity
Square D FA24090AB - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24090AB-R |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase A-B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, Federal Specification W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Providing robust circuit protection, the Square D FA24090AB is a 2-pole, 90A molded case circuit breaker. It comes factory-configured with an A-B phase connection and includes a Visi-Trip indicator. The breaker plugs securely into Square D I-Line panelboards. As a legacy F-Frame component, it is ideal for maintaining existing commercial systems, while the PowerPact BDA24090Y1 is the recommended replacement for new upgrades. It offers an 18kAIC rating at 480VAC with fixed LI protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA24090AB |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase A-B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, Federal Specification W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
6 answersWhich panelboards accept the FA24090AB circuit breaker?
This breaker is built specifically for Square D I-Line power distribution panelboards and switchboards. It utilizes a plug-on I-Line connection that mounts directly to the internal bus structure.
What does the AB suffix mean on the FA24090AB part number?
The AB suffix designates the internal phase connection. It means this 2-pole breaker is factory-configured to draw power from the A and B phases of the I-Line bus.
What is the modern replacement for the legacy FA24090AB breaker?
The FA series is a legacy F-Frame breaker. For modern panelboard upgrades, Schneider Electric replaced this line with the PowerPact H-Frame series. An equivalent PowerPact HDA breaker can be used in the same I-Line space.
Are the trip settings adjustable on the FA24090AB?
No. This breaker is equipped with a standard thermal-magnetic trip unit featuring fixed long-time and fixed instantaneous (LI) protection. The trip curve cannot be adjusted in the field.
What are the wire gauge limits for the FA24090AB lugs?
The standard mechanical lugs on this breaker accept conductor sizes ranging from 14 AWG up to 1/0 AWG. They are rated for use with either copper or aluminum wiring.
Can the FA24090AB be used in DC applications?
Yes, in addition to its AC ratings, this breaker is rated for use on 250VDC systems with a maximum interrupting capacity of 10 kAIC.
