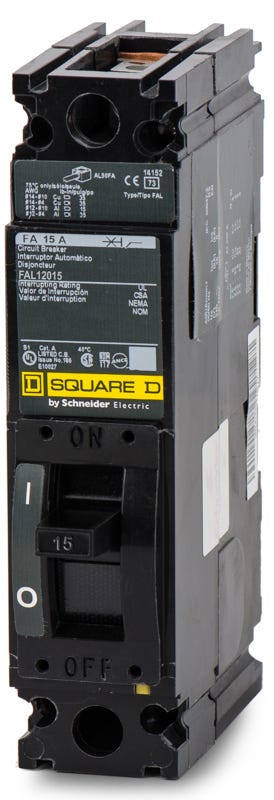

Square D FAL12015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Unit Mount
Square D
FAL12015
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL12015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL12015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL12015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL12015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL, IEC |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL12015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL12015-R |
| Series | FAL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL, IEC |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial power systems, the Square D FAL12015 is a 1-pole, 15A molded case circuit breaker from the legacy F-Frame series. It delivers robust overcurrent protection for commercial environments. This unit mount breaker installs into compatible Square D enclosures and switchboards. For facilities upgrading infrastructure, it is superseded by the PowerPacT B-Frame (BDL16015). Operating with a 10kAIC rating at 120VAC, it features fixed thermal-magnetic LI trip technology.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL12015 |
| Series | FAL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL, IEC |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersCan I install the FAL12015 in a standard QO or Homeline load center?
No. The FAL12015 is an F-Frame molded case circuit breaker designed for commercial Square D enclosures, switchboards, and panelboards. It is not interchangeable with residential QO or Homeline plug-on breakers.
Is the Square D FAL12015 still in active production?
The FAL12015 belongs to the legacy F-Frame series, which has been superseded by the modern Square D PowerPact B-Frame series for new installations. However, F-Frame breakers are still widely sourced for direct replacements in existing panels.
Does the FAL12015 require special terminals for aluminum wiring?
No. The factory-installed feed-thru lugs are dual-rated for both copper and aluminum conductors. They accept 14 to 4 AWG copper or 12 to 4 AWG aluminum wire without requiring separate adapters.
What does the LI trip function code mean on the FAL12015?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time (L) protection for sustained overloads and Instantaneous (I) protection for short circuits. Both the thermal and magnetic trip points are fixed on this model.
How does the FAL12015 mount into a panel?
This is a unit mount circuit breaker. It uses a feed-thru connection with line and load lugs, meaning it is individually mounted to a backpan and wired directly, rather than plugging directly onto a busbar like an I-Line breaker.
