Square D FAP36025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Square D
FAP36025
Molded Case Circuit Breaker
Brand
Square D
SKU
FAP36025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

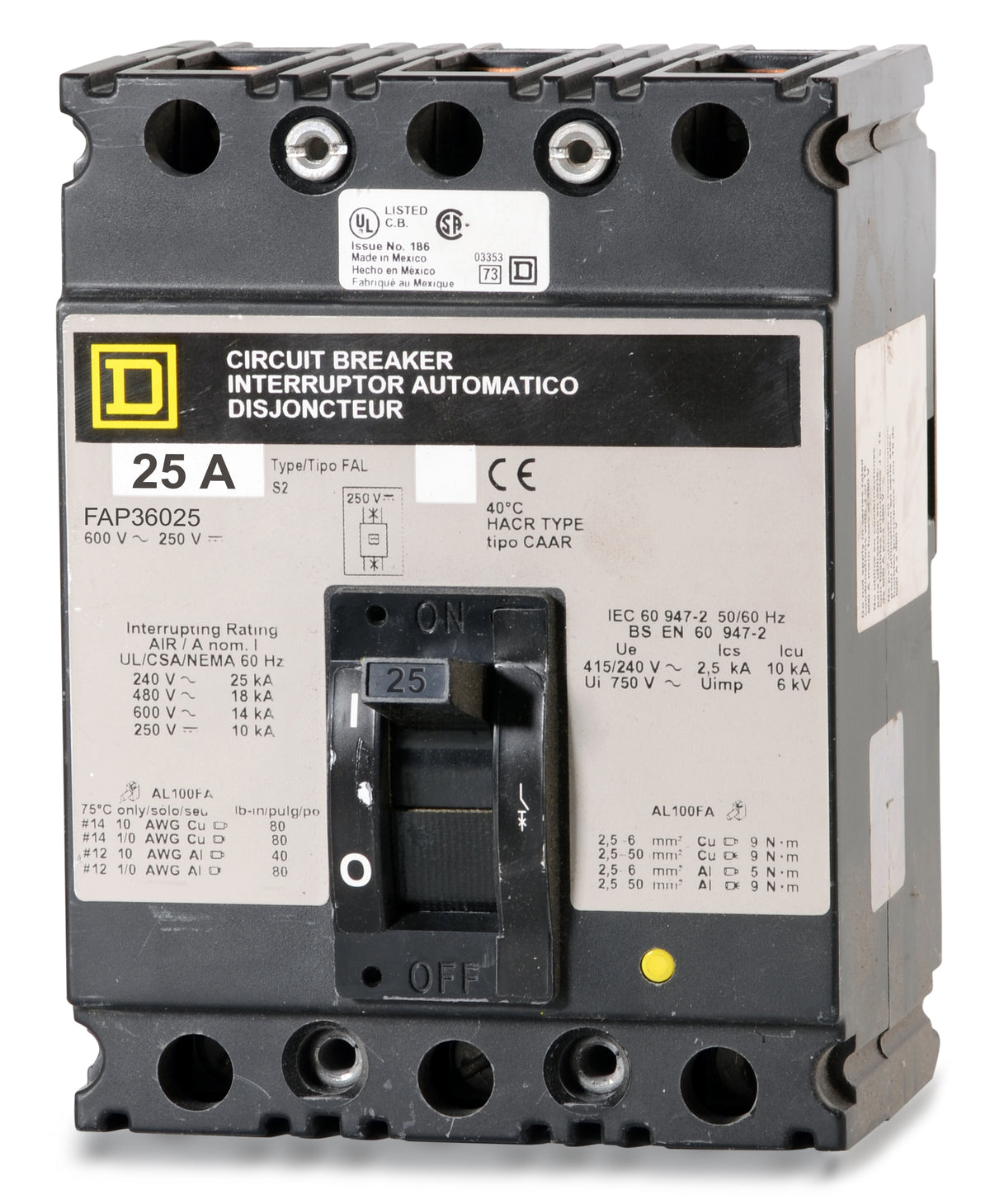

Square D FAP36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the FAP36025 is a 3-pole, 25A molded case circuit breaker equipped with fixed thermal-magnetic trip technology. This F-frame device secures via a bolt-on connection, making it suitable for Square D motor control centers and legacy panelboards. It handles up to 600VAC with an interrupt capacity of 18 kAIC at 480VAC. The breaker includes a Visi-Trip indicator and is HACR rated. For modern upgrades, this unit is replaced by the HJP36025.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAP36025 |
| Series | FAP |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
7 answersIs the Square D FAP36025 still in production, or has it been replaced?
The F-frame series is a legacy product. For modern upgrades and replacements, Schneider Electric designates the PowerPact B-Frame or H-Frame molded case circuit breakers, though exact retrofit requirements depend on your specific panel or motor control center.
What type of mounting does the FAP36025 require?
This breaker features a unit mount, bolt-on design. It is typically installed in Square D motor control centers, switchboards, and legacy panelboards that accept bolt-on F-frame breakers.
Can the FAP36025 be used in DC power systems?
Yes, this thermal magnetic breaker is rated for use in DC applications up to 250VDC, where it provides an interrupting capacity of 10 kAIC.
What wire sizes are accepted by the lugs on this 25A breaker?
The factory lugs accommodate copper or aluminum (Cu/Al) conductors ranging from 14 AWG to 4 AWG.
Will this FAP breaker fit into an I-Line panelboard?
No. FAP breakers are unit mount, bolt-on devices. I-Line panelboards require plug-on breakers with a specialized jaw and mounting bracket, such as the FA or FH series.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. Both settings are fixed on this specific model.
How can I visually identify if the FAP36025 has tripped?
This breaker features a Visi-Trip indicator that provides a clear visual confirmation when the breaker has tripped. It also includes a push-to-trip button to manually test the mechanical operation of the trip unit.
