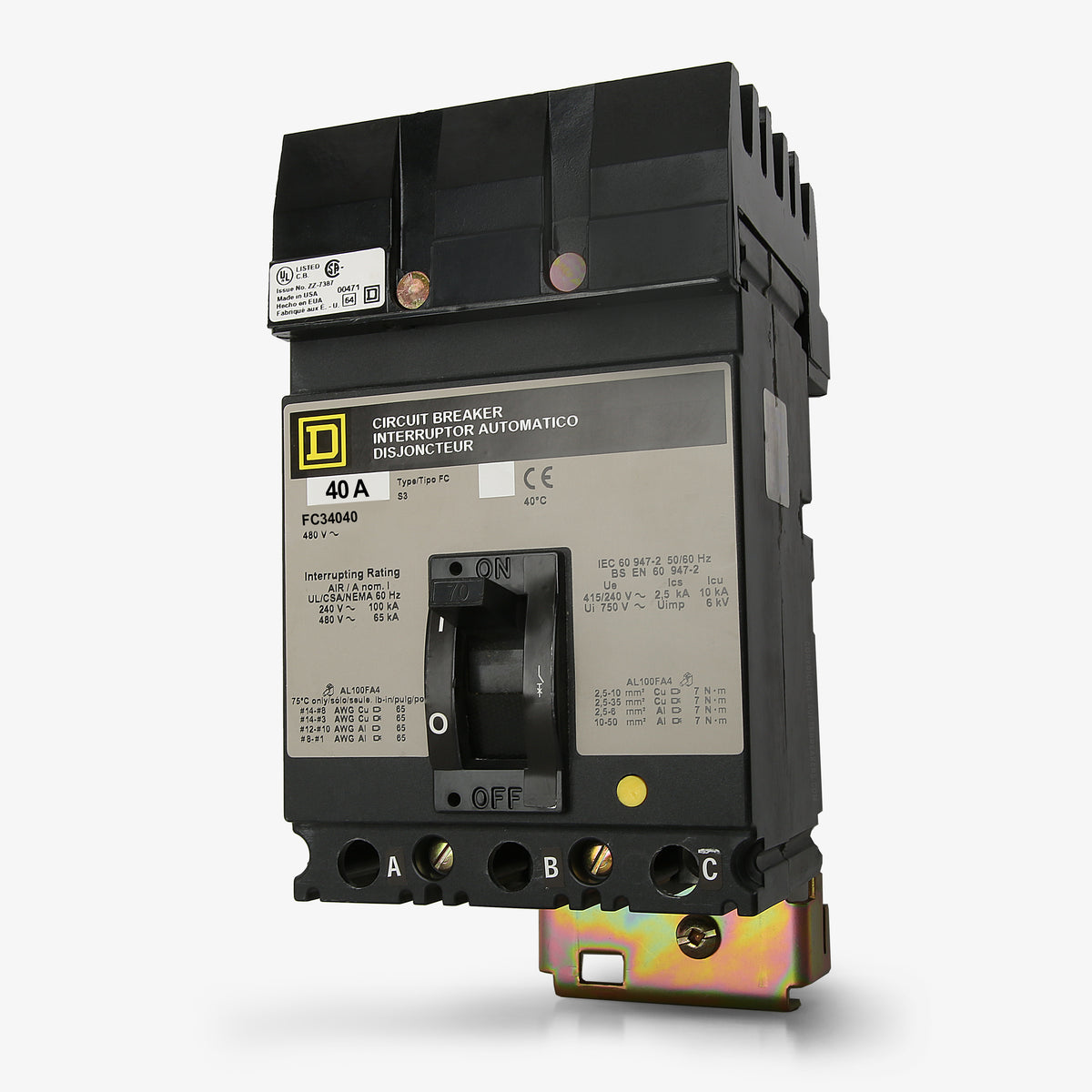

Square D FC34040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- I-Line
Square D
FC34040
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FC34040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34040 |
| Series | FC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |

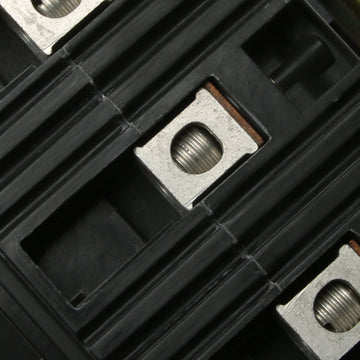

| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Visual Trip Indicator |
Quantity
Square D FC34040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34040-R |
| Series | FC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Visual Trip Indicator |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent safety, the Square D FC34040 is a 3-pole, 40A legacy molded case circuit breaker. It is engineered to handle demanding commercial and industrial power distribution needs. This unit features a specialized plug-on design that fits Square D I-Line panelboards. While it is a legacy F-Frame model, it can be replaced by the PowerPact H-Frame HJA36040 for modern applications. It boasts a 65kAIC rating at 480VAC, is HACR rated, and includes a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34040-R |
| Series | FC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the FC34040 breaker?
This device is engineered specifically for Square D Class 650 and 651 I-Line panelboards and switchboards. It connects directly to the stepped bus structure without requiring line-side cabling.
Does this breaker require a separate mounting hardware kit for the line side?

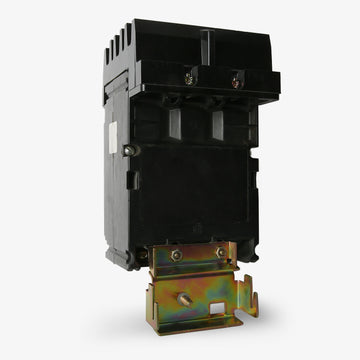

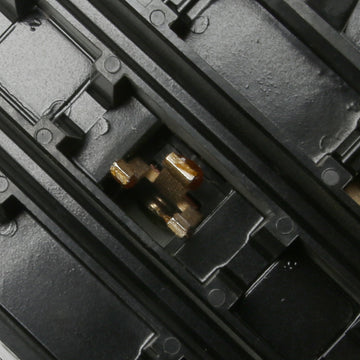

No. Because it utilizes the I-Line plug-on mounting design, the breaker features built-in jaws that grip the bus bars directly. A single retaining screw secures the unit to the backpan.
What is the instantaneous trip threshold for this 40-amp breaker?
The fixed thermal-magnetic trip unit has an instantaneous magnetic trip mechanism designed to activate and clear faults between 400 and 850 amps.
Is the FC34040 still actively manufactured by Square D?
No, this legacy F-frame model is completely obsolete. Facilities upgrading a panel currently using this footprint will typically need to transition to modern PowerPact H-frame I-Line breakers.
Can this device be used in direct current (DC) applications?
Yes. In addition to its standard alternating current specifications, the FC34040 carries a 250 Vdc rating for industrial DC control panels and power distribution.
How much bus space does this 3-pole F-frame breaker occupy?
The breaker requires 4.5 inches of vertical mounting space on an I-Line bus. Each pole is 1.5 inches wide.
