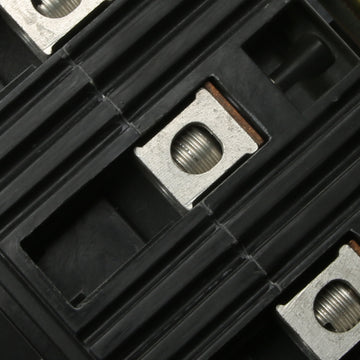

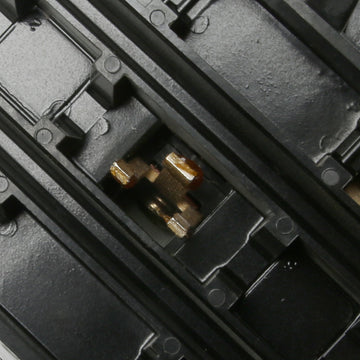

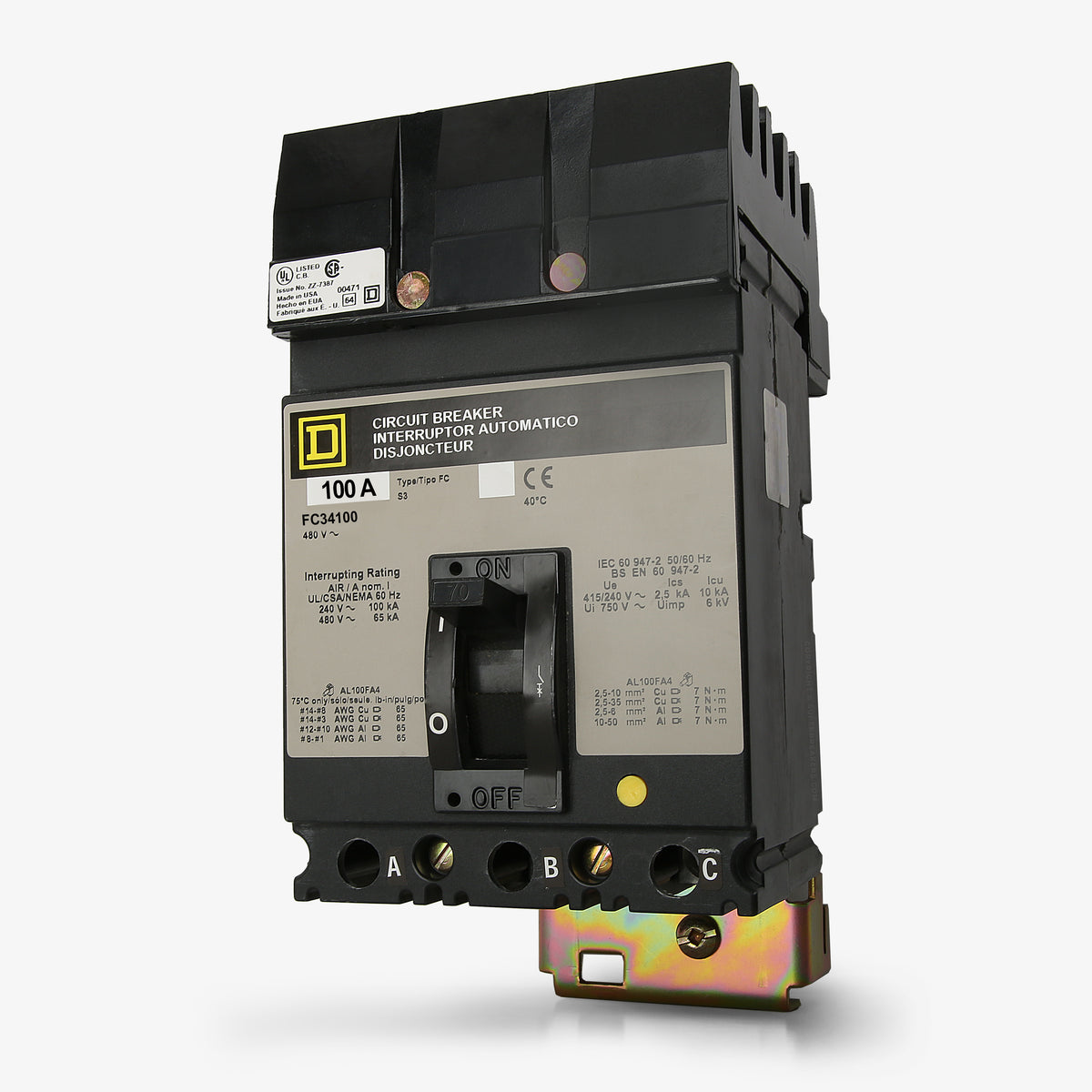

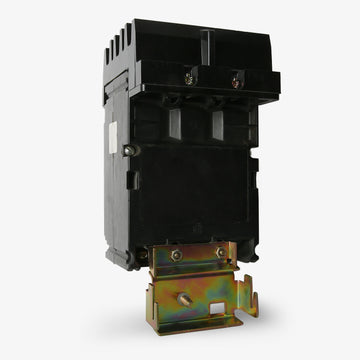

Square D FC34100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
FC34100
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FC34100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34100 |
| Series | FC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Quantity
Square D FC34100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34100-R |
| Series | FC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
The FC34100 is a 3-pole, 100A molded case circuit breaker from Square D's legacy F-Frame lineup. It provides long-time and instantaneous (LI) trip functions to protect commercial electrical infrastructure. Designed for seamless integration, this unit installs into Square D I-Line panelboards and switchboards. It is officially replaced by the HJA36100 for newer installations. Rated for 65 kAIC at 480VAC, it features fixed trip settings, a Visi-Trip indicator, and an HACR rating.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34100 |
| Series | FC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersHow much mounting space does this breaker require in an I-Line panel?
As a 3-pole F-frame breaker, it requires 4.5 inches of vertical mounting space in a Square D I-Line panelboard or switchboard.
Can the FC34100 replace an older FA34100 or FH34100 circuit breaker?
Yes. The FA, FH, and FC series share the exact same physical F-frame dimensions and mount onto the same I-Line bus structure. The FC34100 simply provides a higher interrupting rating than standard FA or high-interrupting FH models, making it a safe and direct upgrade.
Is the continuous current rating of the FC34100 80% or 100%?
Like most standard thermal-magnetic F-frame breakers, it carries a standard 80% continuous current rating. This means the continuous load should not exceed 80 amps (80% of its 100A rating) for periods lasting 3 hours or longer.
Can this circuit breaker be backfed to act as a main breaker?
Yes, thermal-magnetic I-Line breakers can be reverse fed. If you are using it as a backfed main breaker in an I-Line panelboard, the National Electrical Code (NEC) requires it to be permanently labeled as the Main Breaker to maintain the service entrance rating of the panel.
How can I manually test the mechanical trip function?
The breaker is equipped with a standard Push-To-Trip button located on the face of the unit. This feature allows electricians to manually actuate the tripping mechanism for periodic safety testing without exposing live internal electrical parts.
