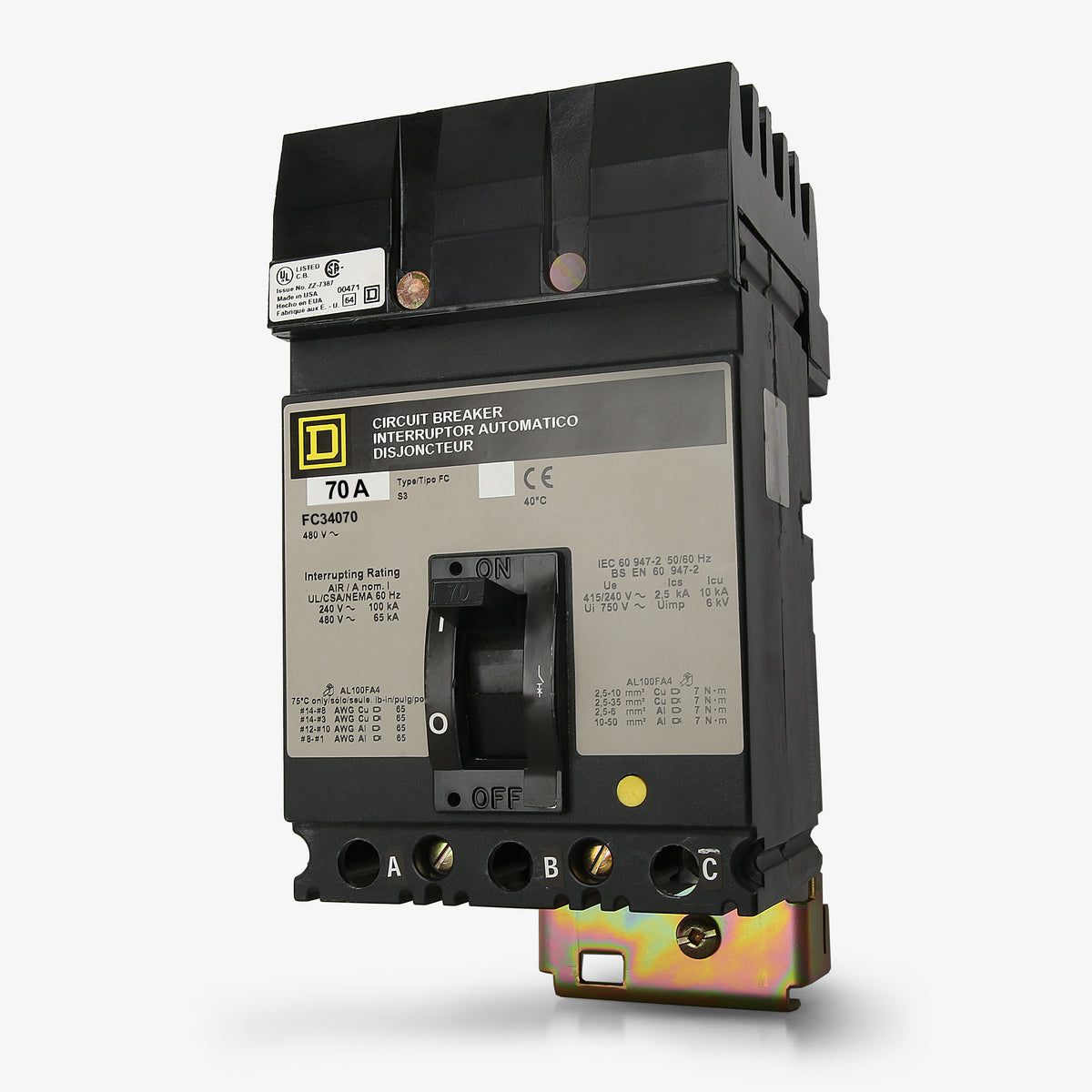

Square D FC34070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- I-Line
Square D
FC34070
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FC34070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34070 |
| Series | FC |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Quantity
Square D FC34070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34070-R |
| Series | FC |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Square D FC34070 is a 70A, 3-pole molded case circuit breaker. It utilizes thermal-magnetic trip technology to deliver long-time and instantaneous protection for commercial facilities. Designed to install into Square D I-Line panelboards and switchboards, this legacy F-frame breaker is ideal for maintaining existing infrastructure. It is replaced by the HJA36070. It features a 65 kAIC rating at 480VAC, a Visi-Trip indicator, and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34070 |
| Series | FC |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the FC34070?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It will not mount in standard NQ or NF panelboards.
How much mounting space does the FC34070 require?
As a 3-pole legacy F-frame I-Line breaker, it requires 4.5 inches of branch mounting space (1.5 inches per pole) along the I-Line busbar stack.
How does this breaker connect to the electrical system?

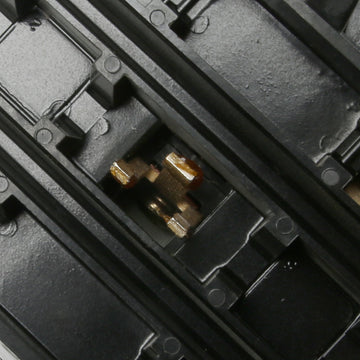

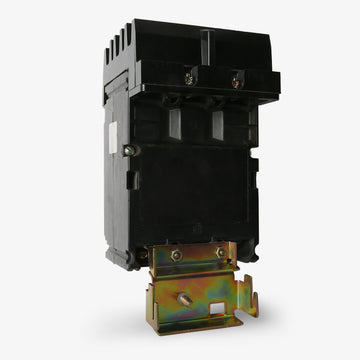

The line side features an I-Line plug-on (blow-on) connection that attaches directly to the panelboard's busbar, while the load side utilizes traditional mechanical lugs for wire termination.
Is the FC34070 still manufactured by Square D?
No, the legacy FC frame series is obsolete. The direct modern upgrade in the PowerPacT series is the HJA36070, which provides the same 65kA at 480V interrupting capacity for I-Line installations.
Can the FC34070 be reverse-fed (backfed)?
Yes, Square D I-Line circuit breakers are UL listed for use as either branch breakers or backfed main devices. When used as a main, the lugs act as the line side and the plug-on jaws feed the panelboard bus.
What does the "FC" in the FC34070 part number indicate?
In Square D's legacy F-frame series, these letters indicate the breaker's interrupting rating. While standard FA models are rated for 18kA at 480V and FH models provide 25kA, the FC designation indicates an Extra-High Interrupting rating, offering 65kA of fault protection at 480V.
