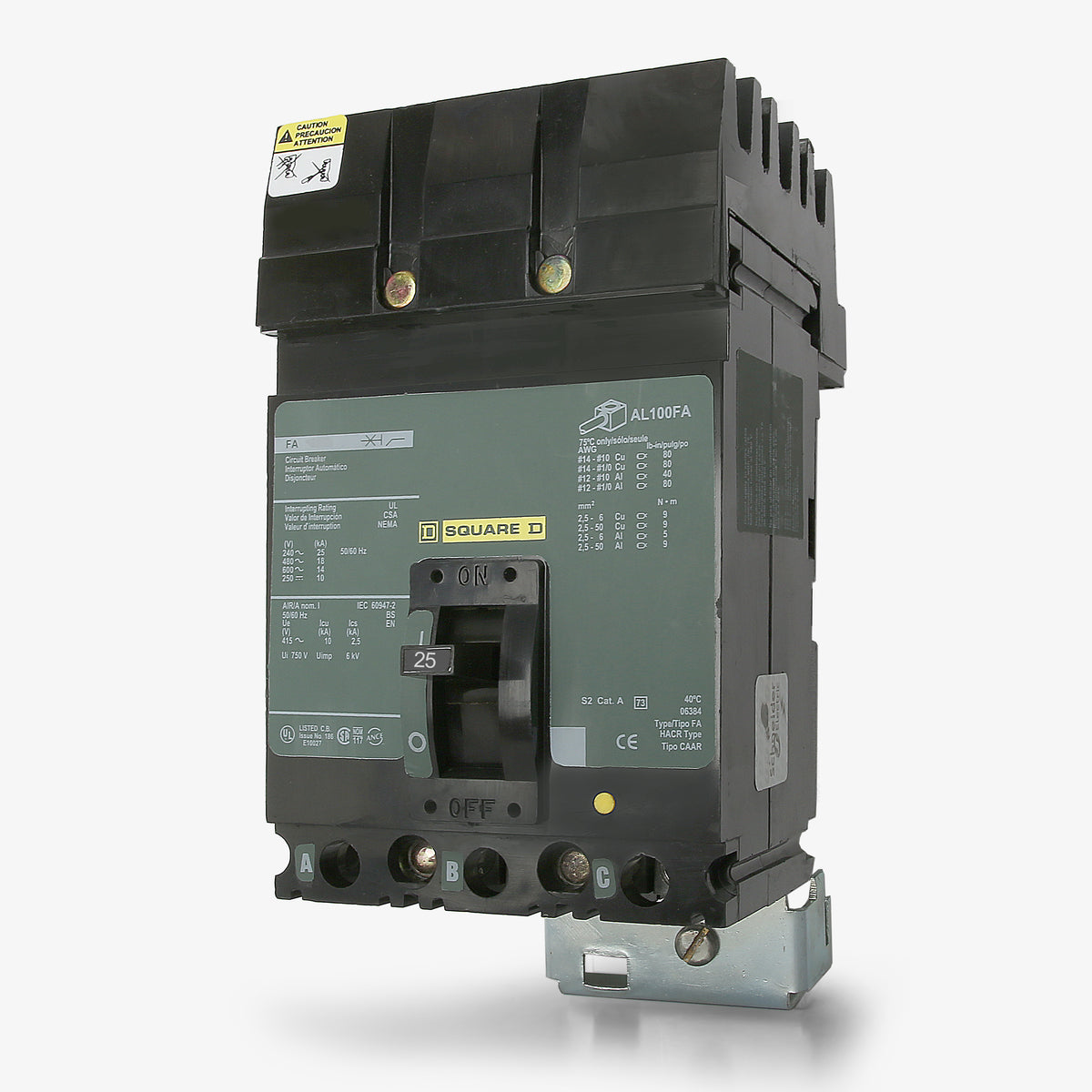

Square D FH36025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- I-Line
Square D
FH36025
Molded Case Circuit Breaker
Brand
Square D
SKU
FH36025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FH36025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FH36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FH36025 |
| Series | FH |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Quantity
Square D FH36025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FH36025 |
| Series | FH |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, the Square D FH36025 is a 3-pole, 25A MCCB. It utilizes proven thermal-magnetic trip technology to protect electrical infrastructure from overloads and short circuits. Designed for Square D I-Line panelboards, the plug-on mounting style allows for rapid installation. Facility managers looking for current equivalents can cross-reference this legacy component to the HGA36025.Specifications
| Brand | Square D |
|---|---|
| Part Number | FH36025 |
| Series | FH |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
7 answersWhat type of panelboard is the Square D FH36025 designed for?
The FH36025 is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side that mounts directly onto the panel's vertical bus stack.
What is the difference between the Square D FH and FA frame circuit breakers?
The H in the FH frame designates a high interrupting rating, whereas the FA frame is the standard interrupting version. The FH36025 provides a 25 kAIC rating at 480VAC, compared to the standard 18 kAIC rating of an equivalent FA breaker.

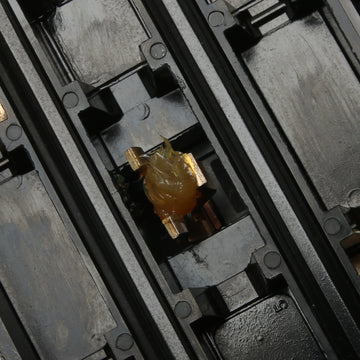

How does the I-Line blow-on jaw connection work on this breaker?
The FH36025 utilizes a specialized blow-on jaw design for its line-side connection. During a high-level short circuit, the magnetic forces generated draw the connector jaws closer together, gripping the I-Line bus bar more firmly to maintain a secure electrical connection.
Is the Square D FH36025 a legacy circuit breaker, and what is its modern replacement?
Yes, the FH36025 is part of the legacy Square D F-Frame series. For modern upgrades or replacements, Schneider Electric introduced the PowerPact H-Frame series. The direct modern equivalent for this 25A I-Line breaker is the HGA36025.
Does installing the FH36025 require bolting to the panel bus?
No. The I-Line plug-in design allows the breaker to ratchet directly onto the bus stack using a screwdriver, eliminating the need for bus bar bolts and reducing installation time.
What are the magnetic trip settings for the FH36025?
This 25A thermal-magnetic breaker has fixed trip settings. It features a magnetic hold current of 275 Amps and a magnetic trip current of 600 Amps.

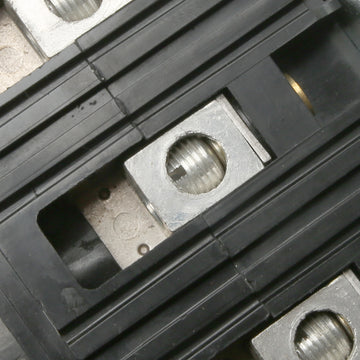

What wire sizes are accepted by the load-side lugs on the FH36025?
The factory-installed load lugs (terminal identifier AL50FA) accept 14 to 4 AWG copper or aluminum wire.
