Square D FH36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- I-Line
Square D
FH36070
Molded Case Circuit Breaker
Brand
Square D
SKU
FH36070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

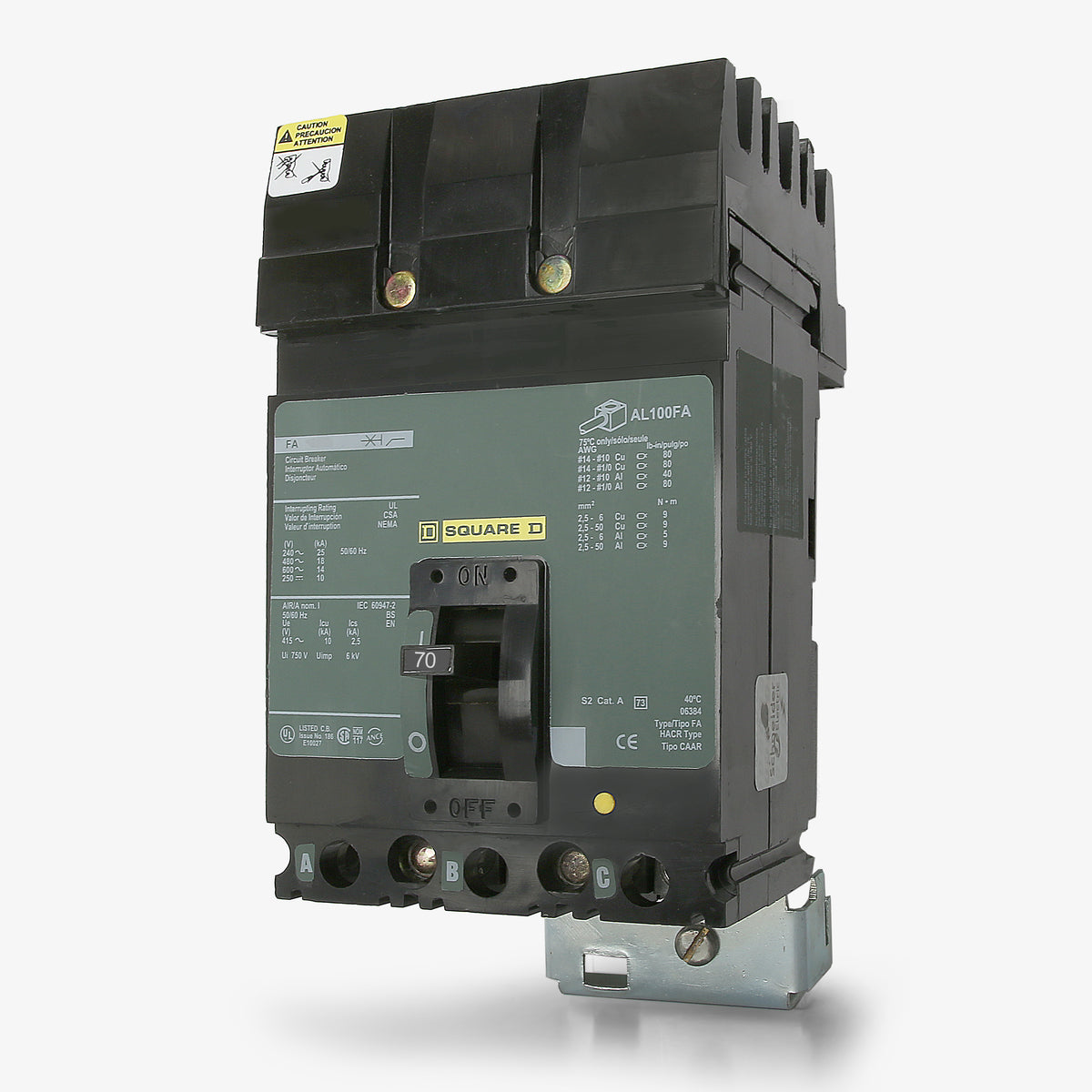

Square D FH36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FH36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FH36070 |
| Series | FH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Quantity
Square D FH36070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FH36070-R |
| Series | FH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, the Square D FH36070 is a 70-amp, 3-pole molded case circuit breaker. It utilizes fixed thermal and magnetic trip units to provide dependable long-time and instantaneous (LI) protection for commercial facilities. This F-Frame breaker mounts into Square D I-Line panelboards. It replaces older FH series units and can be substituted by the newer BGA36070 or HGA36070 models. Delivering a 65kAIC rating at 240VAC, it is HACR rated for HVAC applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | FH36070 |
| Series | FH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs

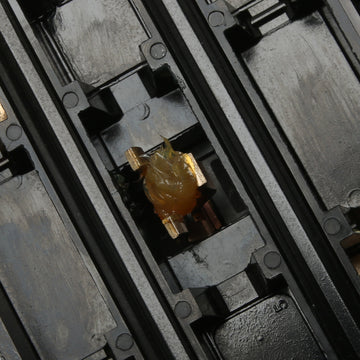

5 answersWhat panelboards are compatible with the FH36070?
This breaker is designed for Square D I-Line panelboards and switchboards [1.3.6]. It features a plug-on line connection that mounts directly to the interior busbar, combined with traditional terminal lugs on the load side.
How much panel space does this 3-pole F-frame breaker require?
The FH36070 requires 4.5 inches of bus space in an I-Line panelboard. Square D F-frame breakers measure 1.5 inches of width per pole.
What is the difference between the FH36070 and the FA36070?
The difference lies in the short-circuit interrupting capacity. The FH36070 is a high-interrupting model rated at 25kAIC at 480VAC. The standard FA36070 is rated lower at 18kAIC at 480VAC. Both breakers share the same physical dimensions and I-Line mounting interface.
Is the FH36070 still manufactured, or what is the replacement?
The FH36070 is part of the legacy F-frame series, which has been discontinued by Schneider Electric. Upgrades and replacements are typically handled by modern Square D PowerPact B-frame or H-frame I-Line breakers, provided the selected replacement meets your system's required fault current ratings.

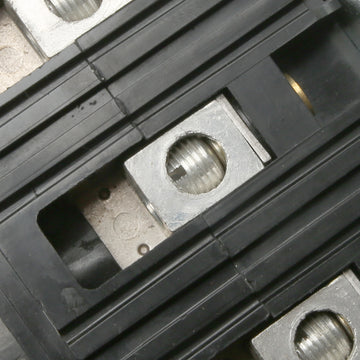

Which lug kit is used on the load side of the FH36070?
The standard load-side lug kit for this 70-amp breaker is the AL100FA. This factory-installed lug block accommodates the required copper or aluminum wiring and is strictly for terminating the load side of the circuit.
