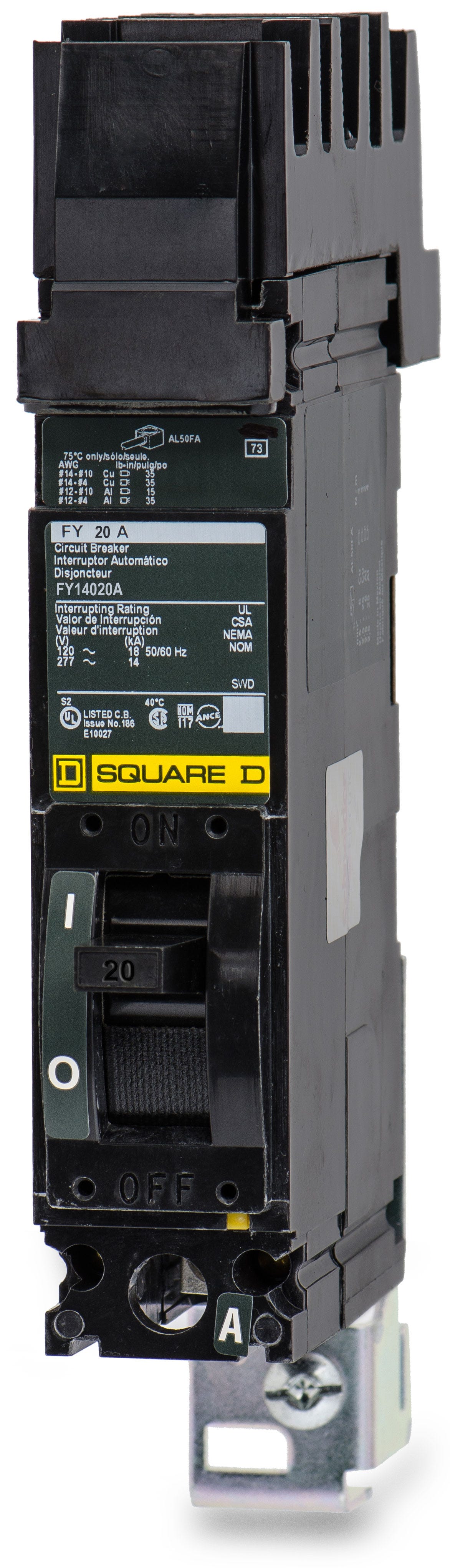

Square D FY14020A Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
FY14020A
Molded Case Circuit Breaker
Brand
Square D
SKU
FY14020A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FY14020A - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FY14020A - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14020A |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase A Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase A Connection |
Quantity
Square D FY14020A - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14020A-R |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase A Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase A Connection |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for industrial environments, this 20A molded case circuit breaker provides essential long-time and instantaneous trip functions. It operates safely on 277VAC systems while delivering an 18kAIC rating. Installation is streamlined for Square D I-Line panelboards using the integrated Phase A connection. Facilities transitioning to current standards can substitute this legacy component with the PowerPact BDA140201. The breaker incorporates a highly visible trip indicator to minimize downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY14020A-R |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase A Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase A Connection |
Product FAQs
6 answersWhat does the A suffix in the FY14020A catalog number indicate?
The A indicates that the breaker is factory configured specifically for a Phase A connection on the busbar of Square D I-Line panelboards.
What is the modern replacement for the legacy FY14020A circuit breaker?
The Square D FY series is an obsolete legacy F-frame component. Schneider Electric recommends the PowerPact B-frame BDA140201 as the direct modern replacement for a 1-pole, 20A, Phase A I-Line breaker.
What wire sizes do the standard lugs on this breaker accept?
The factory lugs are rated to accept 14 AWG to 4 AWG copper wire, or 12 AWG to 4 AWG aluminum wire.
Is the FY14020A suitable for DC electrical systems?
Yes, this thermal magnetic molded case breaker is rated for 125VDC applications and provides a 10 kAIC interrupting capacity for DC loads.
Can the trip settings on the FY14020A be adjusted?
No, this breaker is built with fixed thermal and fixed magnetic trip functions to provide standard long time and instantaneous overcurrent protection.
How does this circuit breaker mount into a panel?
It features an I-Line style plug-in connection, allowing the breaker to seat directly onto the busbar of a compatible Square D I-Line panelboard or switchboard.
