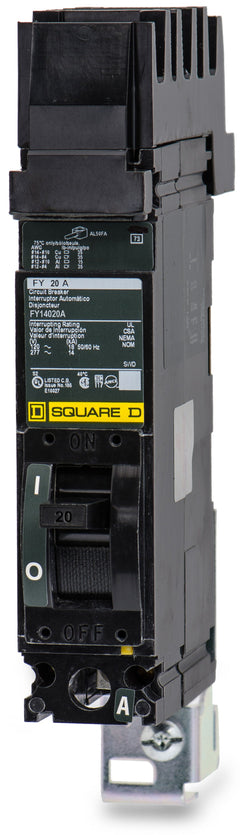

Square D FY14020B Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
FY14020B
Molded Case Circuit Breaker
Brand
Square D
SKU
FY14020B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FY14020B - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FY14020B - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14020B |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase B Connection, Visual Trip Indicator |
Quantity
Square D FY14020B - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14020B-R |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase B Connection, Visual Trip Indicator |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-frame series, this 1-pole MCCB provides robust long-time and instantaneous trip functions for 277VAC systems. It features a Phase B connection and an 18kAIC interrupt rating for commercial environments. Designed to install into Square D I-Line panelboards, the breaker utilizes a plug-on jaw connection. For modern upgrades, this unit is replaced by the PowerPacT BDA140203. Equipped with a Visi-Trip indicator, the unit carries both HACR and SWD ratings.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY14020B-R |
| Series | FY |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase B Connection, Visual Trip Indicator |
Product FAQs
6 answersCan the FY14020B be installed in standard QO or NQ panelboards?
No. The FY14020B features an I-Line style plug-on connection. It is engineered exclusively for Square D I-Line panelboards and switchboards, and it will not fit residential or standard commercial bolt-on or plug-on load centers.
What does the B suffix in the FY14020B catalog number represent?
The B suffix specifies the factory-configured phase connection. This 1-pole breaker is designed with a plug-on jaw that connects exclusively to the B-phase bus in an I-Line panelboard.
Is there a modern equivalent or replacement for the legacy FY14020B?
Yes. The legacy F-frame FY series has been discontinued by Schneider Electric. The direct modern replacement is the PowerPact B-frame breaker, catalog number BDA140203, which matches the 277V rating, I-Line mounting, and B-phase connection.
Does the FY14020B carry an SWD rating for lighting circuits?
Yes. This 1-pole breaker carries a Switch-Duty (SWD) rating, meaning it is UL approved for regularly switching fluorescent lighting loads without accelerating the wear of the breaker mechanisms.
Is the FY14020B circuit breaker HACR rated?
Yes. The breaker is HACR rated, certifying it for use as an overcurrent protection device for compatible heating, air conditioning, and refrigeration equipment.
How is the FY14020B terminated on the line and load sides?
The line side connects directly to the panelboard bus via a shrouded I-Line plug-on jaw. The load side utilizes a mechanical lug designed to accept 14 to 4 AWG copper or 12 to 4 AWG aluminum conductors.
