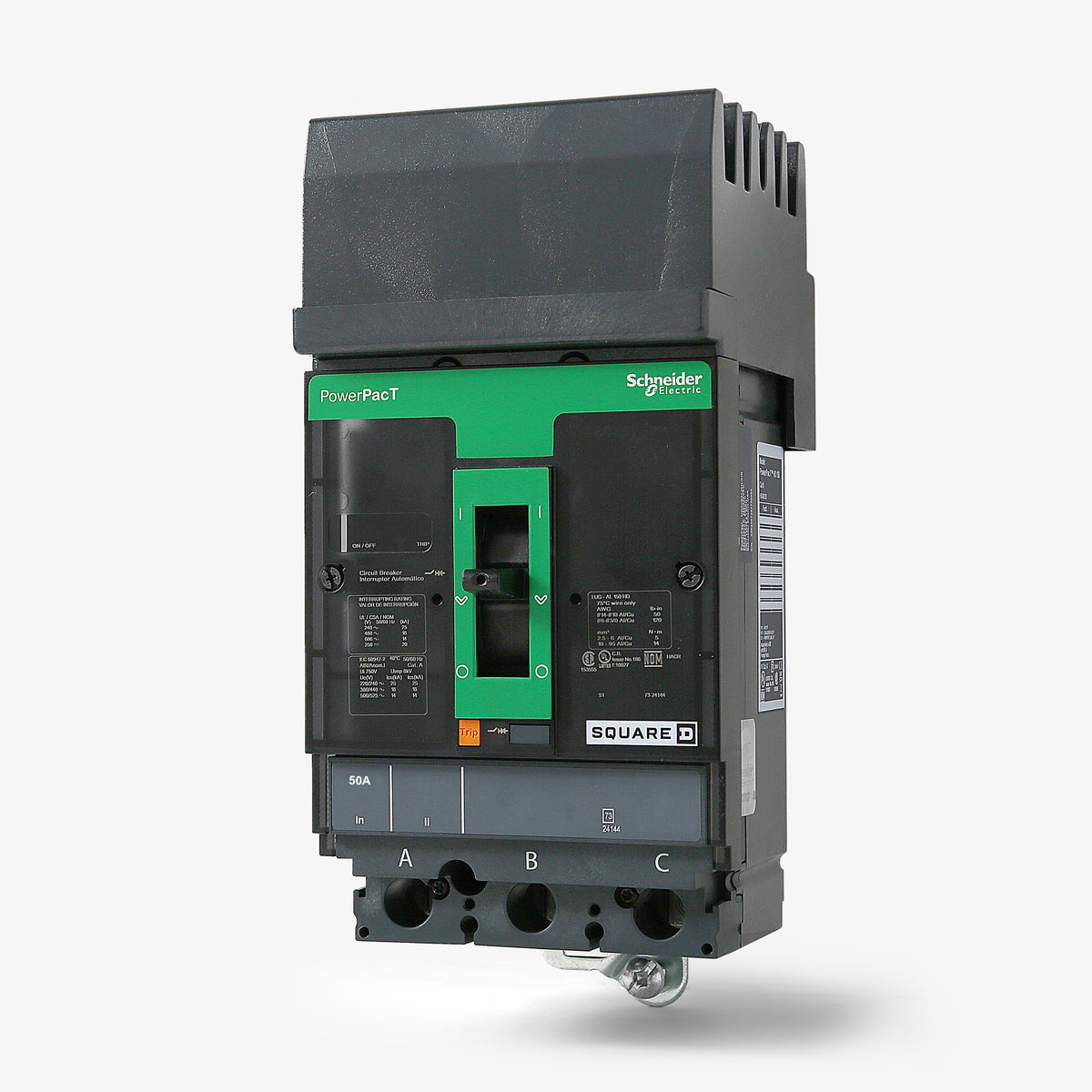

Square D HGA36050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- I-Line
Square D
HGA36050
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA36050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA36050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36050 |
| Series | HGA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Visual Trip Indicator |
Quantity
Square D HGA36050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36050-R |
| Series | HGA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Visual Trip Indicator |
Similar Items
45A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed for robust electrical protection, the Square D HGA36050 is a 3-pole, 50A molded case circuit breaker from the PowerPacT H-Frame lineup. Equipped with an I-Line plug-on connection, it mounts effortlessly into Square D I-Line panelboards and switchboards. This model also serves as a direct cross-reference for replacing legacy FA36050 and FH36050 breakers. The breaker provides a 35 kAIC rating at 480VAC and utilizes non-interchangeable thermal-magnetic trip technology with LI functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36050 |
| Series | HGA |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Visual Trip Indicator |
Product FAQs
8 answersHow does the HGA36050 connect to the panelboard?
This breaker features an I-Line plug-on connection. It mounts directly onto the panel busbars on the line side and utilizes standard mechanical lugs on the load side for wire termination.
What type of enclosures accept this circuit breaker?
The HGA36050 is designed exclusively for use in Square D I-Line panelboards and I-Line switchboards. It will not mount in standard unit-mount panels, QO load centers, or NQ panelboards.
What does the G in the HGA36050 part number indicate?
The G designates the interrupting rating tier within the PowerPacT H-Frame family. It specifies a breaking capacity of 65 kA at 240VAC, 35 kA at 480VAC, and 18 kA at 600VAC.
Can the HGA36050 be used to replace legacy Square D breakers?
Yes, this PowerPacT H-Frame breaker serves as a direct, modern replacement for obsolete FA36050 and FH36050 I-Line circuit breakers.
How does the trip unit on the HGA36050 operate?
It utilizes a fixed thermal-magnetic trip unit with Long-Time and Instantaneous functions. The thermal mechanism protects against sustained overloads, while the magnetic mechanism trips instantly during high-level short circuits.

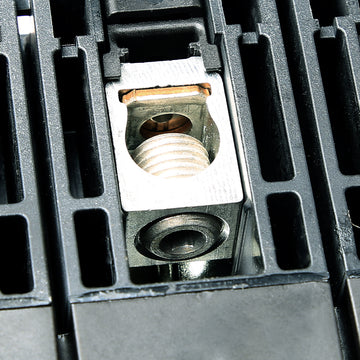

Does the HGA36050 include lugs for wire termination?
Yes, it comes equipped with factory-installed load lugs that accept 14 AWG to 3/0 AWG aluminum or copper wire. The line side uses the I-Line plug-on jaw connection, requiring no line-side wiring.
Is the HGA36050 rated for 100% continuous operation?
No, this is a standard 80% rated circuit breaker. According to standard electrical codes, continuous loads lasting three hours or more must not exceed 80% of its 50-amp nominal rating, which is 40 amps.
Does this breaker feature a mechanical trip test?
Yes, PowerPacT H-Frame breakers include a push-to-trip button on the front face. This allows maintenance personnel and panel builders to manually trip the breaker and verify proper mechanical operation of the toggle mechanism.
