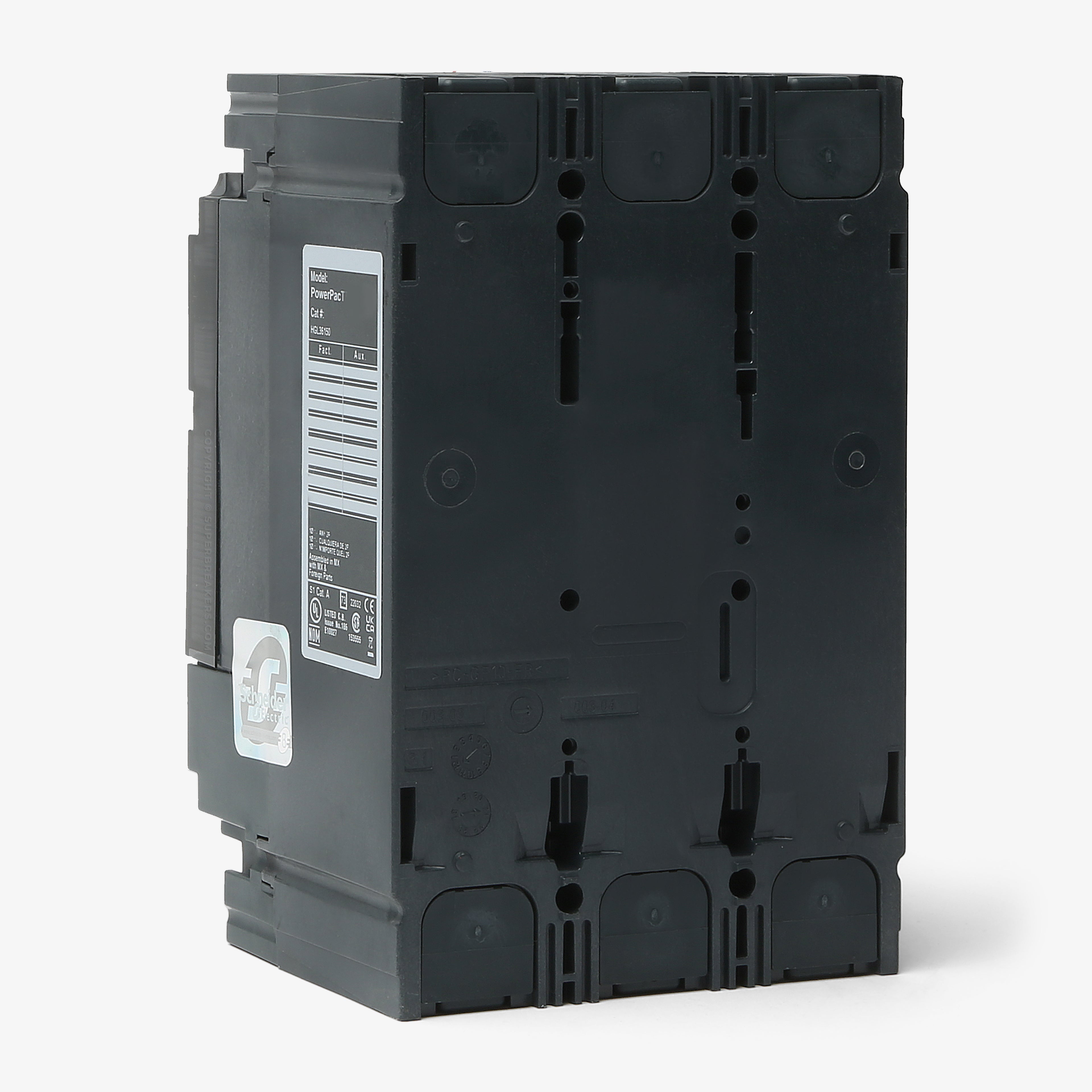

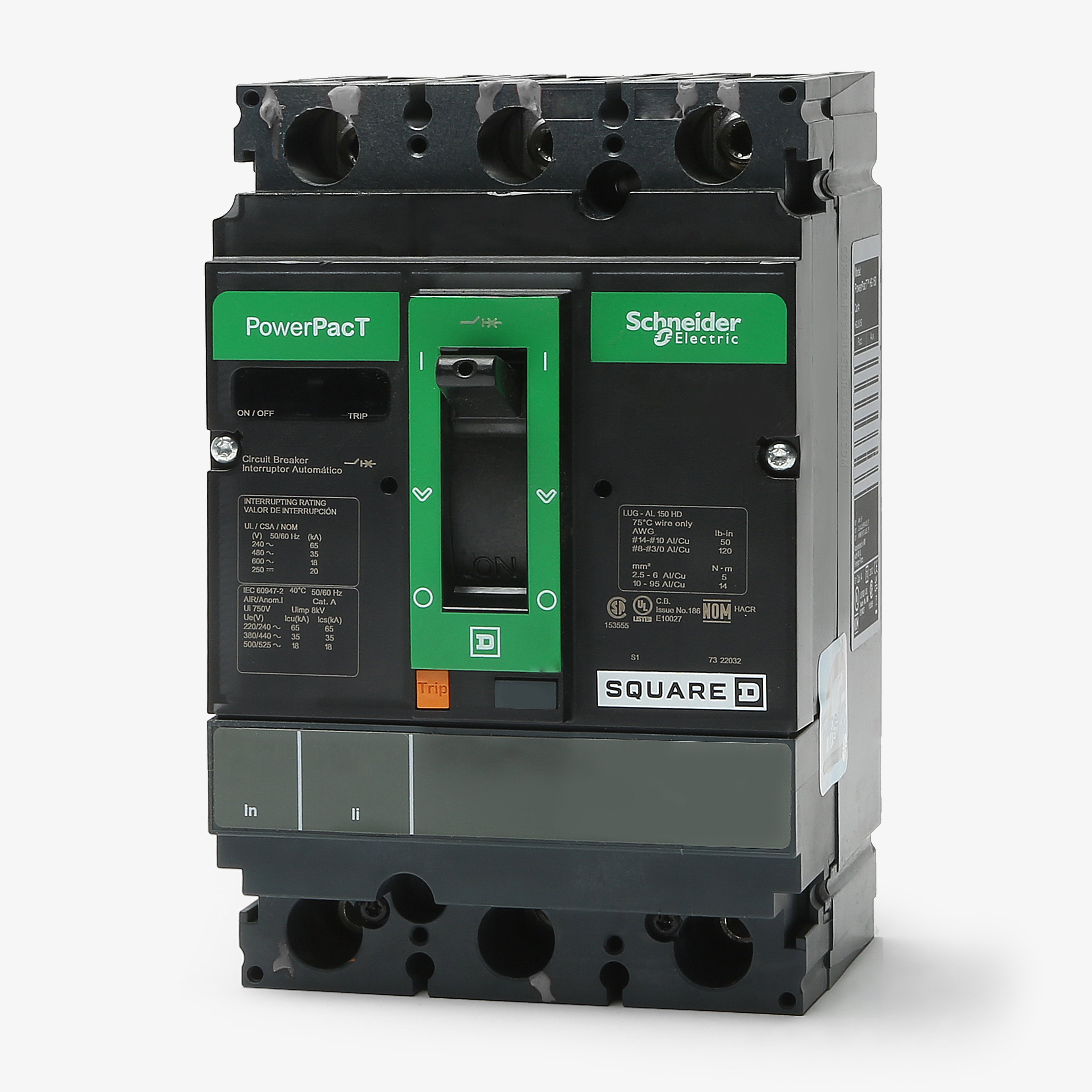

Square D HGL36025 - 25A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU HGL36025
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D HGL36025 - 25A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU HGL36025
Select Item Condition
Earn 589 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D HGL36025 - 25A 3 Pole Molded Case Circuit Breaker

New

$589.74 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the PowerPacT H-Frame lineup from Square D, the HGL36025 provides reliable overcurrent protection for commercial and industrial applications. This 3-pole, 25A MCCB is engineered for motor control centers and switchboards. Designed with a unit mount configuration, it integrates into compatible enclosures. It also serves as a drop-in replacement for legacy FAL36025 and FHL36025 breakers. Featuring thermal-magnetic LI trip technology, it is rated 65kAIC at 240V and includes Visi-Trip.

Specifications

Brand Square D
Series HGL
Part Number HGL36025
Amperage 25A
Voltage 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC
Poles 3
Phase 3
AIC Rating 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-3/0 AWG (Al/Cu)
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment

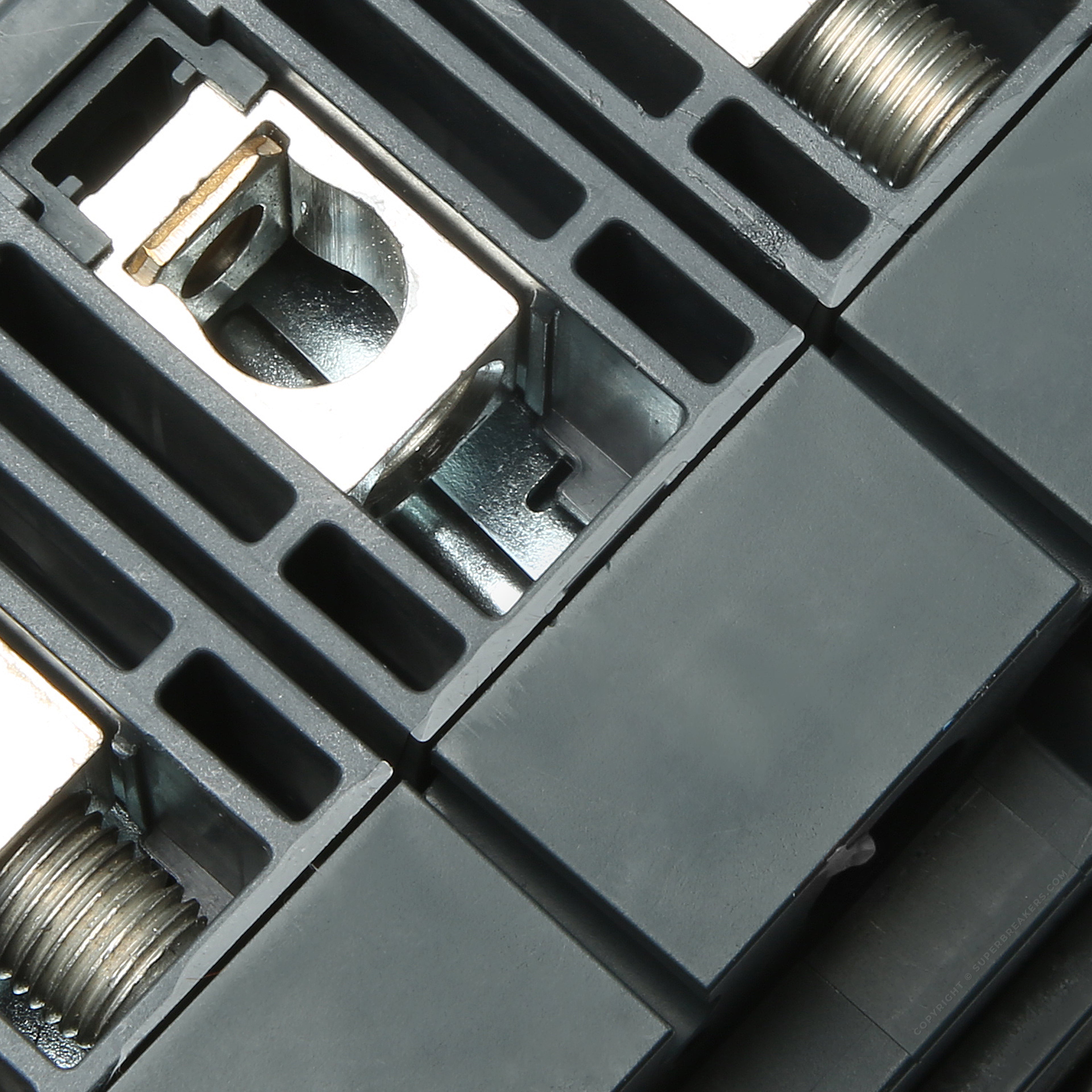

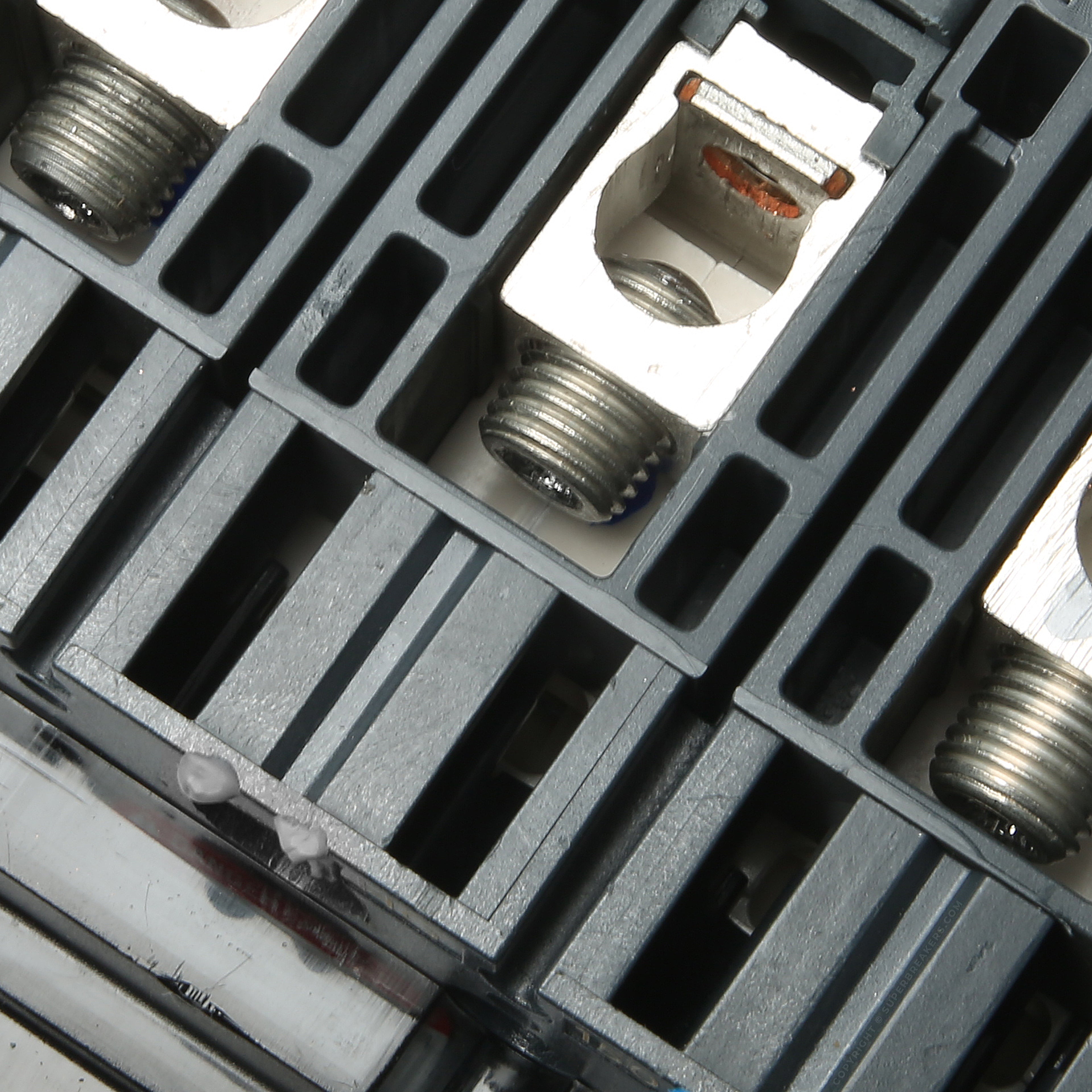

Accessories Line and Load Lugs Included
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated
