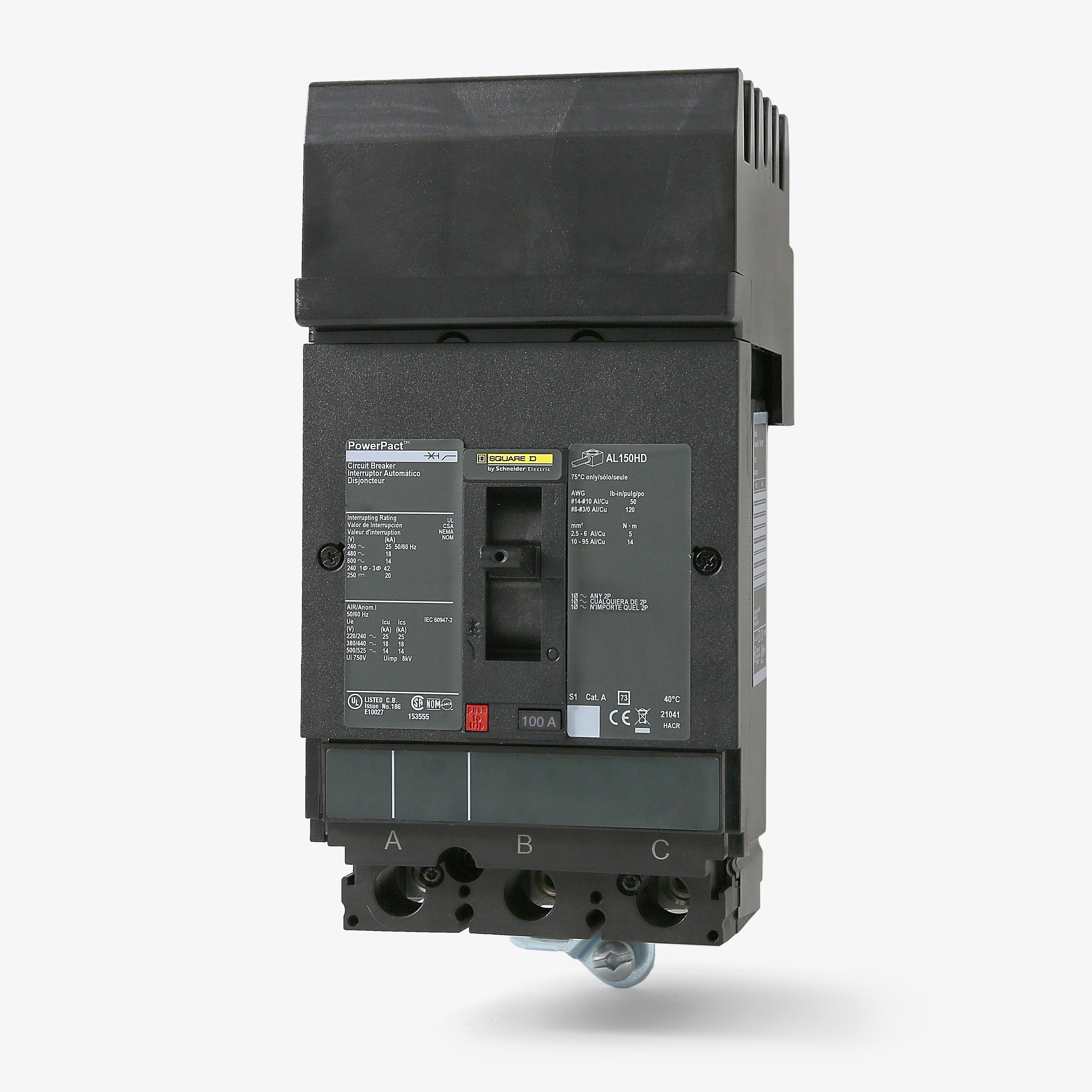

Square D HJA36100 - 100A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU HJA36100
4.0
Rated 4.0 out of 5 stars
1 Review
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D HJA36100 - 100A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU HJA36100
4.0
Rated 4.0 out of 5 stars
1 Review
Select Item Condition
Earn 843 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D HJA36100 - 100A 3 Pole Molded Case Circuit Breaker

New

$843.99 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for industrial power distribution, the Square D HJA36100 is a 100A, 3-pole molded case circuit breaker. It belongs to the highly regarded PowerPact H-Frame series, offering dependable thermal-magnetic protection for commercial facilities. Designed with an I-Line plug-on mounting style, this breaker integrates easily into Square D I-Line panelboards. It is an exact substitute for the older FH36100 model. With an interrupting capacity of 65 kAIC at 480VAC, it handles high faults safely.

Specifications

Brand Square D
Series HJA
Part Number HJA36100
Amperage 100A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC

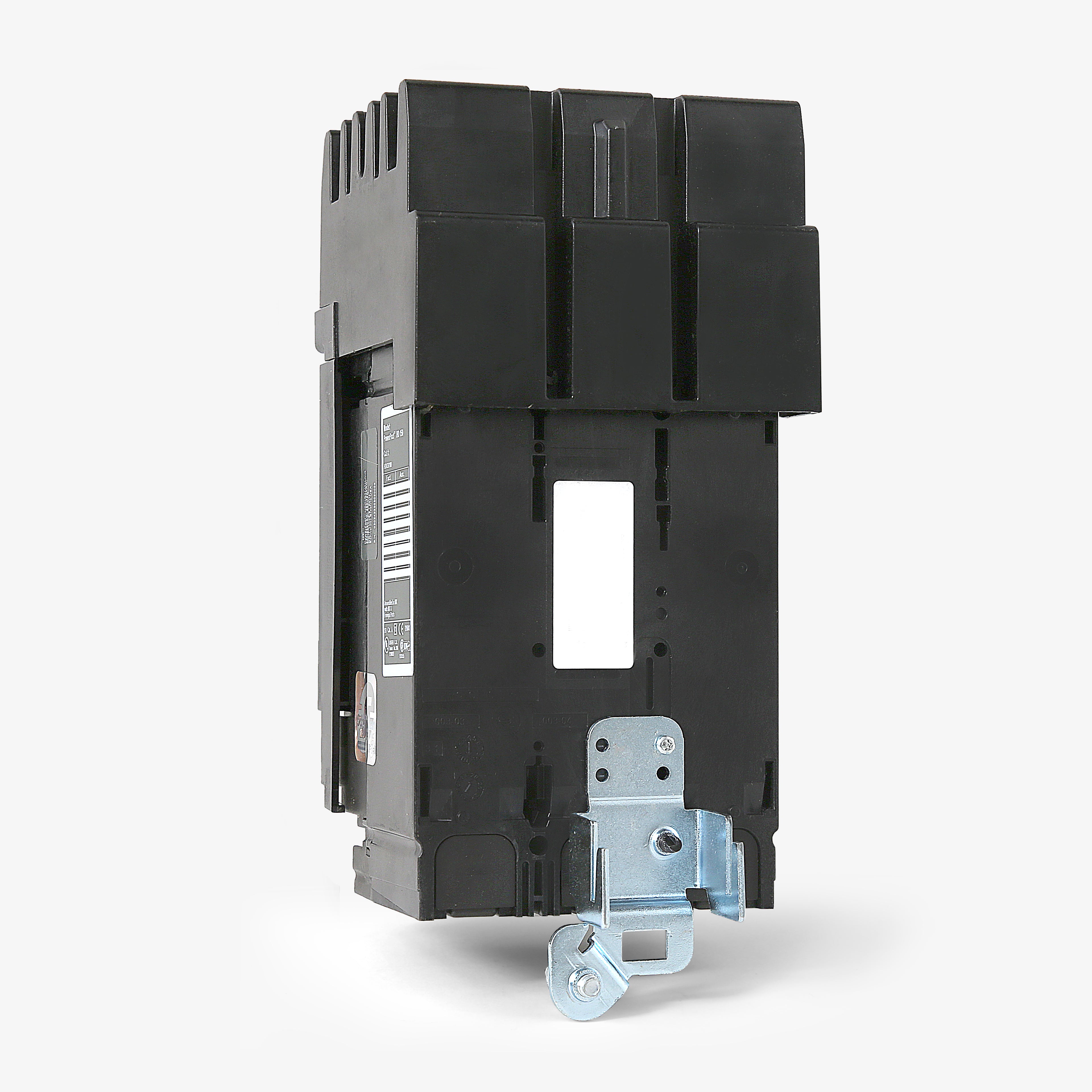

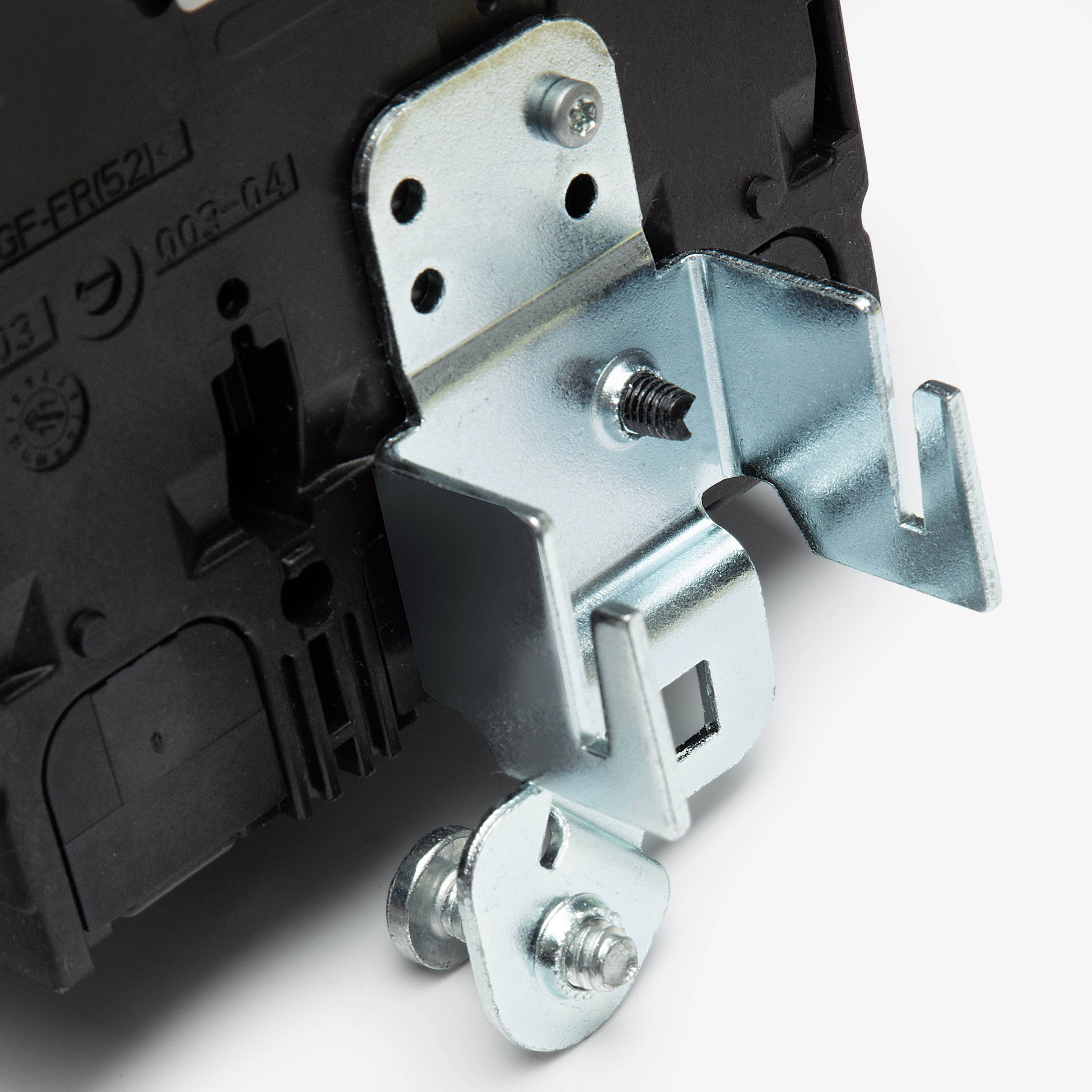

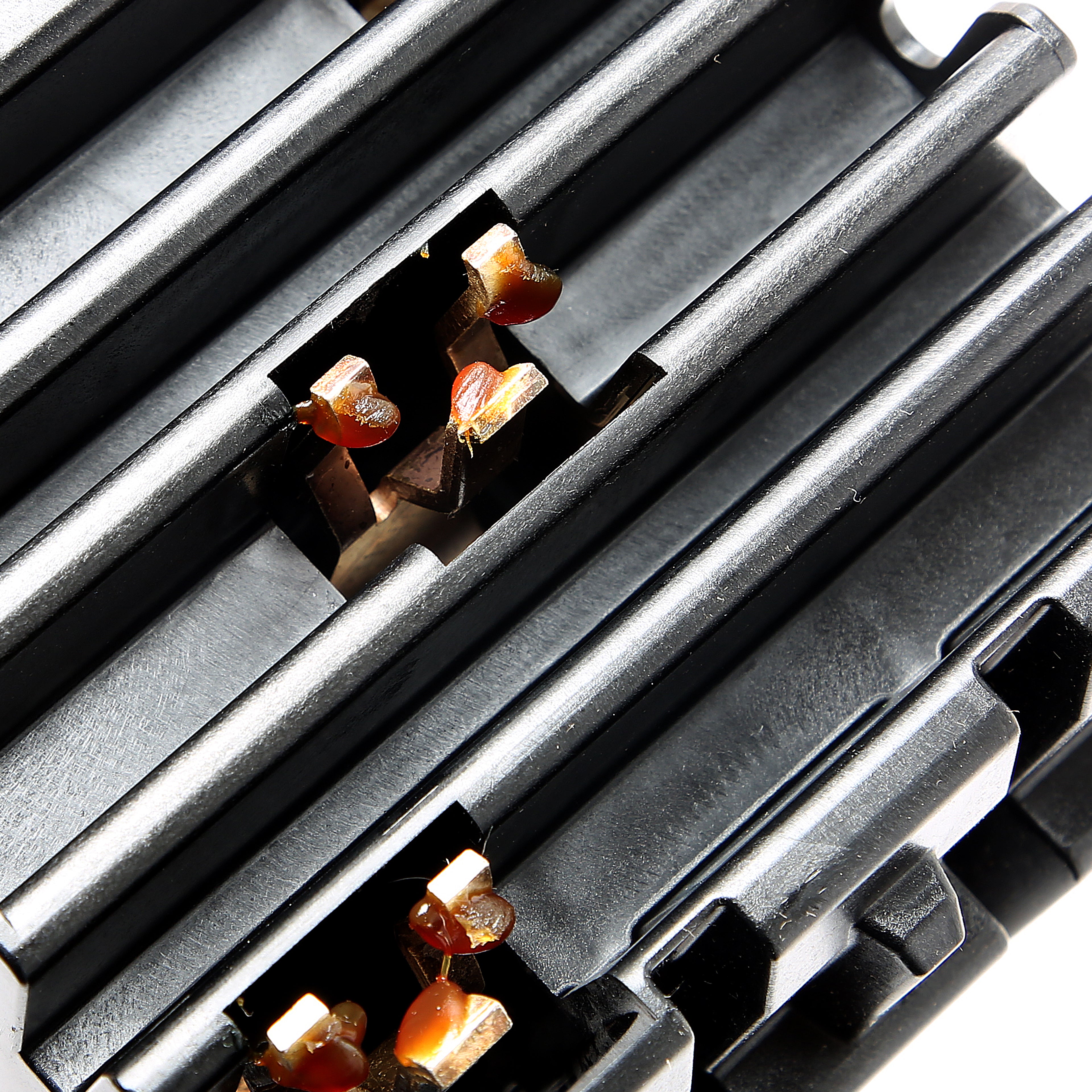

Mounting Style I-Line
Terminal Type Lugs
For Use With Square D I-Line Panelboards, I-Line Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-3/0 AWG (Al/Cu)
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Tie
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated, Reverse Feed
