Square D HJL36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Square D
HJL36070
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

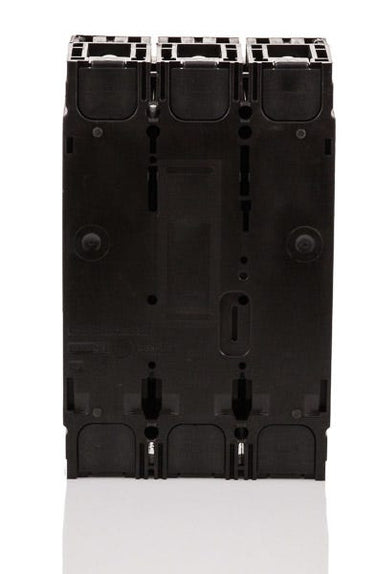

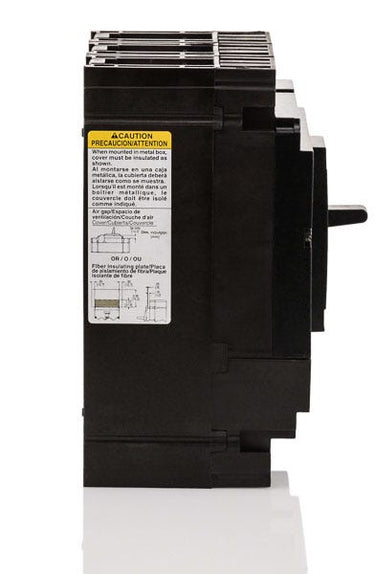

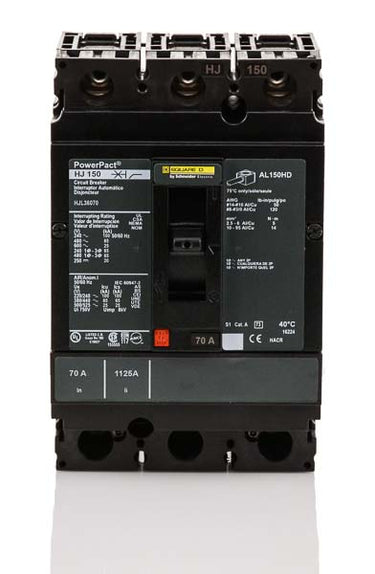

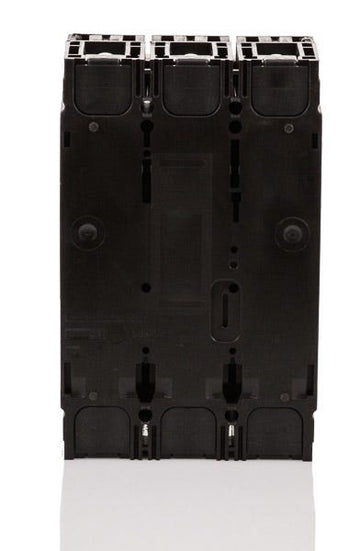

Square D HJL36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HJL36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Square D HJL36070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
The HJL36070 is a 3-pole, 70A MCCB from Square D's PowerPacT H-Frame series, built for commercial and industrial applications with dependable LI trip functions. This unit-mount breaker installs into industrial control panels and switchboards. It also serves as a replacement for legacy FCL36070 breakers. Rated for 65 kAIC at 480VAC, this current-limiting device features fixed thermal-magnetic settings and Visi-Trip technology for clear fault indication.Specifications
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
8 answersWhat type of mounting does the HJL36070 use?
The HJL36070 is a unit-mount circuit breaker. It features standard feed-thru lug connections on both the line and load sides, rather than plugging directly into a busbar.
Can this breaker be installed in an I-Line panelboard?
No, the HJL36070 is a unit-mount breaker and will not plug into an I-Line panelboard. For I-Line applications, you will need the equivalent plug-in version, which is catalog number HJA36070.
What does the J in the HJL36070 catalog number indicate?
The J indicates the interrupting rating tier within the PowerPacT H-Frame series. It signifies a high interrupting capacity of 65 kA at 480 VAC and 100 kA at 240 VAC.
Can the HJL36070 be reverse fed?
Yes, standard unit-mount PowerPacT H-Frame circuit breakers with thermal-magnetic trip units, like the HJL36070, are suitable for reverse feeding.
Is the trip unit on this 70A breaker adjustable?
No, the HJL36070 features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous protection without adjustable dials.
What is the difference between the HDL36070, HGL36070, and HJL36070?
The middle letter in the catalog number indicates the interrupting rating. The HDL36070 is rated for 18 kA at 480 VAC, the HGL36070 for 35 kA, and the HJL36070 for 65 kA. All three share the same physical dimensions and mounting style.
What wire sizes are accepted by the standard lugs on this breaker?
The factory-installed lugs on the HJL36070 accept 14 AWG to 3/0 AWG aluminum or copper wire.
What types of enclosures or panels are suitable for the HJL36070?
This breaker is designed for use in industrial control panels, switchboards, motor control centers, and panelboards that accommodate unit-mount PowerPacT H-Frame breakers.
