Square D HJL36090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Square D
HJL36090
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

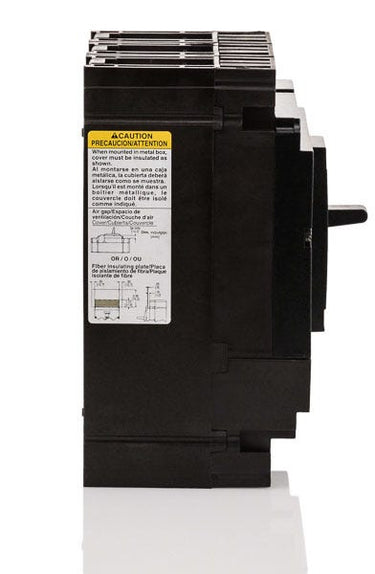

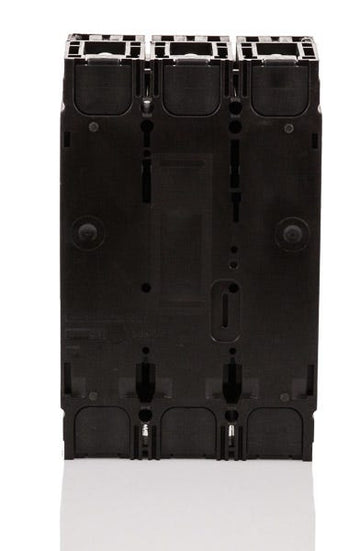

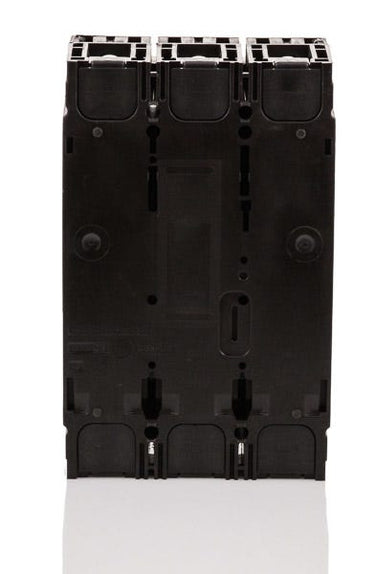

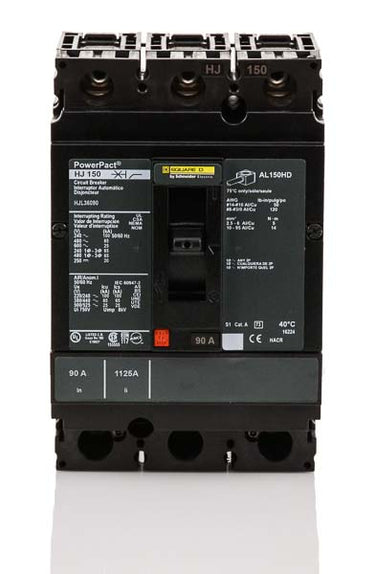

Square D HJL36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D HJL36090 is a 3-pole, 90A molded case circuit breaker. It utilizes a fixed thermal-magnetic trip unit to provide essential LI protection. Designed with a unit mount configuration, this breaker installs into industrial control panels, enclosures, and switchboards. It accommodates 14 to 3/0 AWG wire. Rated for 65kAIC at 480VAC, this current-limiting device features a Visi-Trip indicator and is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Enclosures, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Lock, Phase Barriers |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
7 answersDoes the Square D HJL36090 replace older F-frame circuit breakers?
Yes. The PowerPacT H-frame series, including the HJL36090, is the designated replacement for legacy 90-amp F-frame breakers such as the FAL36090, FHL36090, and FCL36090. Note that physical dimensions and mounting may differ, so panel modifications or new mounting hardware might be required.
What does the "J" in the HJL36090 part number indicate?
The "J" designates the interrupting capacity rating of the breaker. For PowerPacT H-frame breakers, the J-rating provides 100kAIC at 240VAC, 65kAIC at 480VAC, and 25kAIC at 600VAC.
What does "Unit Mount" mean for the HJL36090?
Unit mount indicates that this breaker is designed to be surface-mounted to a backpan or enclosure using screws, rather than plugging directly onto a busbar. The "L" in the HJL prefix signifies that it comes with mechanical lugs on both the line and load sides for feed-thru wire connections.
Can I install the HJL36090 in a Square D I-Line panelboard?
No. The HJL36090 is a unit-mount breaker with lugs on both ends and cannot plug into an I-Line bus. For an I-Line panelboard, you need an I-Line version of this breaker, such as the HJA36090.
What lug kit comes standard on the HJL36090, and what wire sizes does it accept?
The HJL36090 comes standard with the AL150HD lug kit on both the line and load sides. These lugs accept one 14 to 3/0 AWG aluminum or copper wire per terminal.
What type of trip unit is installed in the HJL36090?
This breaker features a fixed thermal-magnetic trip unit. It provides non-adjustable long-time (thermal) protection for overloads and instantaneous (magnetic) protection for short circuits.
Does the HJL36090 have a push-to-trip feature for testing?
Yes, all PowerPacT H-frame circuit breakers include an integral push-to-trip button on the front cover. This allows you to manually trip the breaker to verify the mechanical operation of the tripping mechanism as part of regular maintenance.
