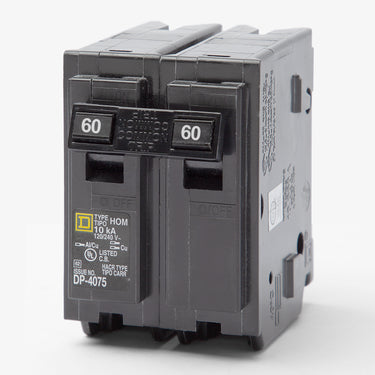

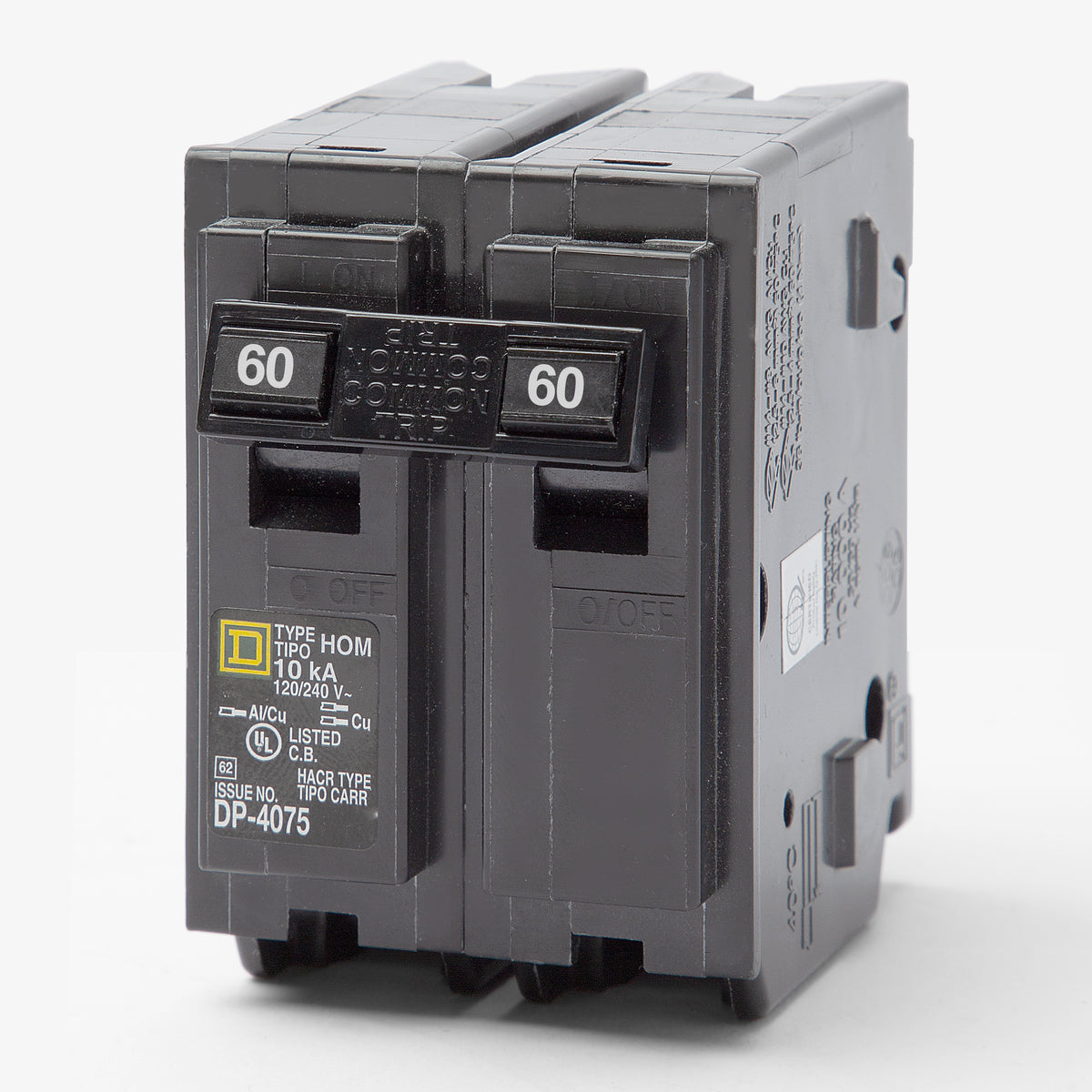

Square D HOM260 Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Square D
HOM260
Miniature Circuit Breaker
Brand
Square D
SKU
HOM260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM260 |
| Series | HOM |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator, RoHS Compliant |
Sold out
Quantity
Square D HOM260 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM260-R |
| Series | HOM |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator, RoHS Compliant |
Similar Items
50A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description

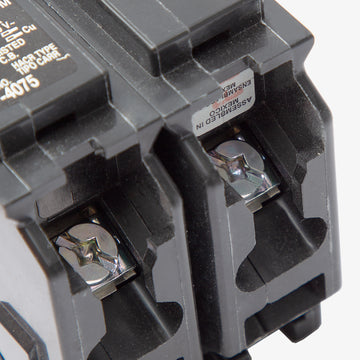

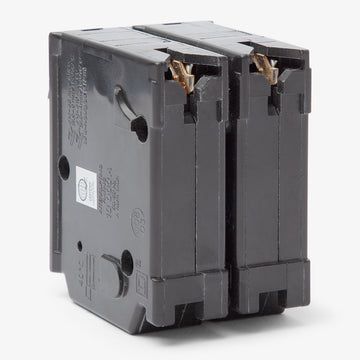

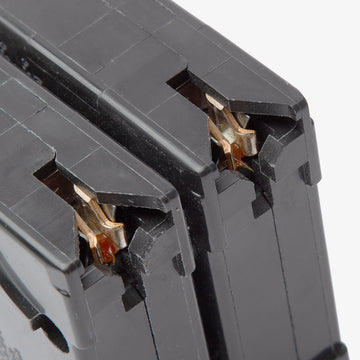

Built for residential applications, the HOM260 provides 60 amps of protection for heavy-duty loads like electric furnaces or sub-panels. This two-pole thermal-magnetic breaker features a 10 kAIC rating at 120/240V and a visual trip indicator. Engineered exclusively for Square D Homeline load centers, it installs into the panel's bus bar using a secure plug-on connection. The box lugs accept #8-2 AWG wire. It is HACR rated for HVAC equipment and features common trip functionality.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM260 |
| Series | HOM |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator, RoHS Compliant |
Product FAQs
7 answersHow many panel spaces does the HOM260 require?
This is a 2-pole, standard format breaker that requires two 1-inch spaces (2 inches total) in a Square D Homeline load center.
Can I install this breaker in a Square D QO or other manufacturer's panel?
No. The HOM260 is physically designed and UL listed exclusively for Square D Homeline load centers. It cannot be used in QO panels or load centers from other brands.
Is the HOM260 suitable for HVAC and refrigeration equipment?
Yes, this breaker is HACR rated, meaning it is certified for use with motorized heating, air conditioning, and refrigeration equipment that requires a HACR-rated overcurrent protection device.
What is the required tightening torque for the wire terminals on this breaker?
The box lug terminals on the HOM260 require a tightening torque of 40.7 lb-in (pound-inches) when securing the 8 to 2 AWG aluminum or copper conductors.
What types of loads or applications is a 60A, 2-pole Homeline breaker typically used for?
The HOM260 is commonly used as a feeder breaker for a subpanel, or to supply 240V power to high-demand applications like large electric heating systems, central air conditioning units, and EV chargers.
What is the difference between the HOM260 and the HOM260CP?
Both catalog numbers represent the exact same 60A, 2-pole circuit breaker. The CP suffix simply indicates that the product comes in commercial packaging, such as a clamshell or blister pack, for retail display.
Does this breaker provide ground-fault or arc-fault protection?
No, this is a standard thermal-magnetic breaker. It does not provide GFCI or AFCI protection. If your application requires ground-fault protection, you will need a dedicated GFCI circuit breaker instead.
