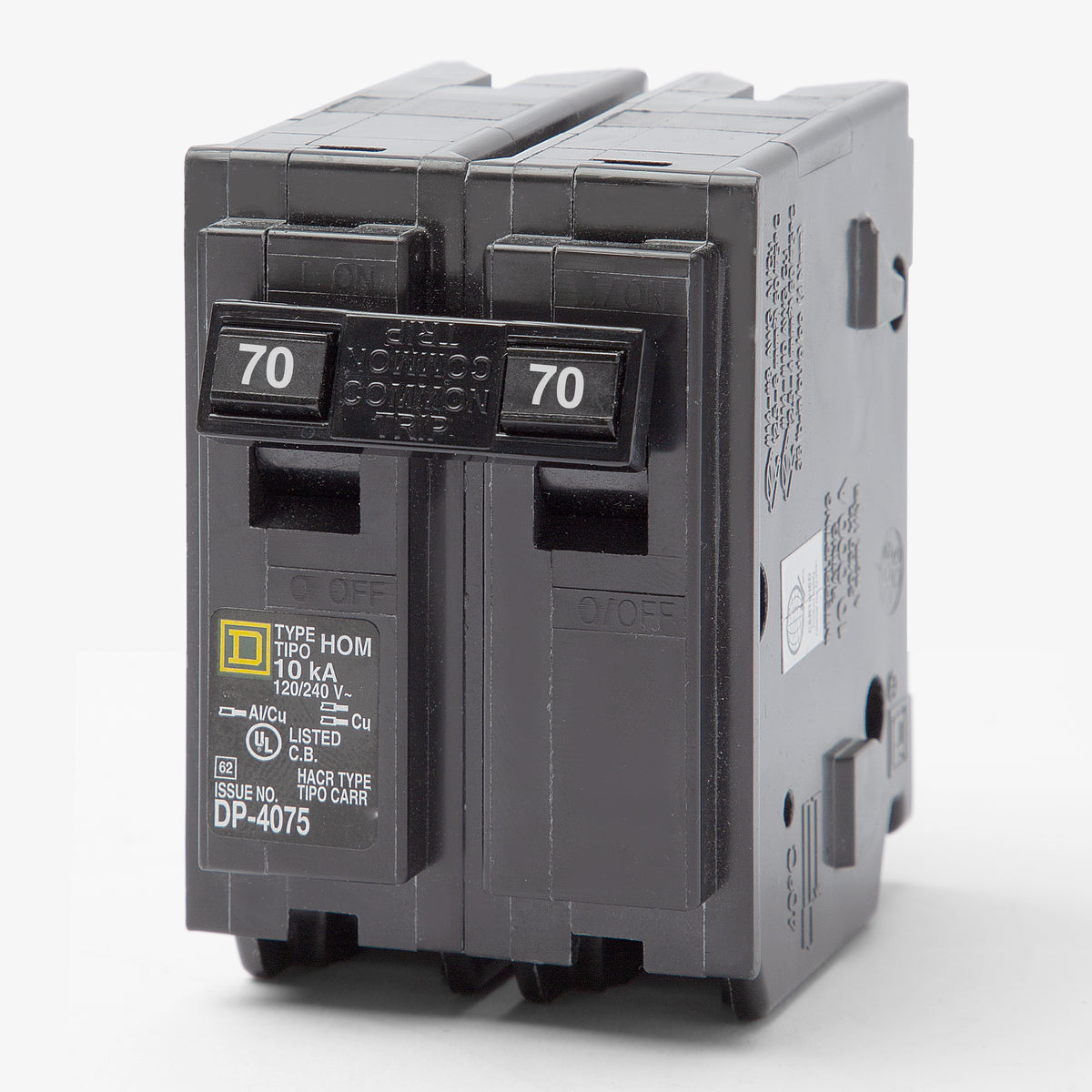

Square D HOM270 Miniature Circuit Breaker
- 70A
- 2 Pole

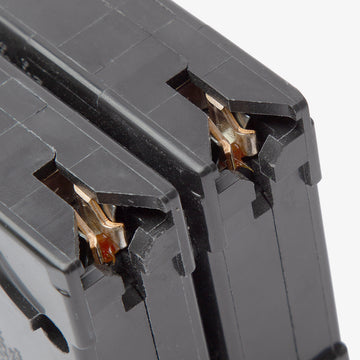

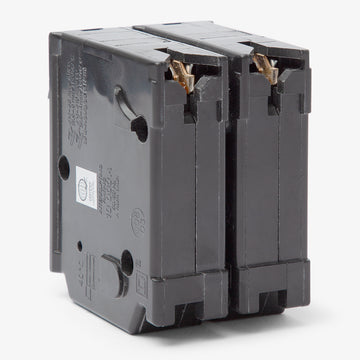

- Plug-On
Square D
HOM270
Miniature Circuit Breaker
Brand
Square D
SKU
HOM270
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM270 |
| Series | HOM |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|

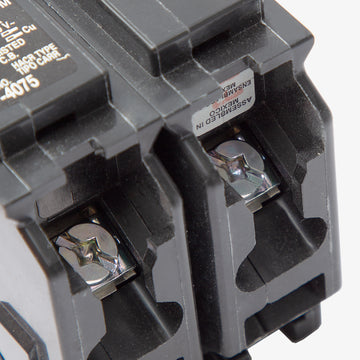

| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM270 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM270-R |
| Series | HOM |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Providing essential overcurrent protection for residential electrical systems, this 70A two-pole component is a staple for larger dedicated circuits. Installation is straightforward, as it snaps securely into any standard Square D Homeline load center. The box lug terminals accept 8-2 AWG aluminum or copper wiring for flexible installation. With a standard 10kA interrupt rating at 120/240V, it meets typical residential requirements. The HACR rating ensures suitability for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM270 |
| Series | HOM |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersCan I install the HOM270 in a Square D QO or Siemens panel?
No. The HOM270 is exclusively designed for use in Square D Homeline load centers. It is not interchangeable with QO series breakers or other manufacturer panels.
How many panel spaces does the HOM270 require?
This 2-pole breaker requires two standard 1-inch spaces in a Homeline load center.
What is the recommended tightening torque for the box lugs on this breaker?
The box lugs should be torqued to 40.7 lbf-in (4.6 N-m) when using 8 to 2 AWG aluminum or copper wire.
Is the HOM270 HACR rated for use with HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for group motor applications like heating, air conditioning, and refrigeration equipment.
Does this breaker provide GFCI or AFCI protection?
No, the HOM270 is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include ground-fault or arc-fault circuitry.
What is the difference between the HOM270 and HOM270CP?
They are the exact same breaker. The CP suffix simply indicates commercial packaging for retail display, while the standard HOM270 is typically sold uncarded for contractor use.
